User manual for the Neutrik NYS224L Mono 2-Pole 1/4" Phone Plug NYS224L

The user manual for the Neutrik NYS224L Mono 2-Pole 1/4" Phone Plug NYS224L provides necessary instructions for the proper use of the product Professional Video - Cables - Audio Connectors.

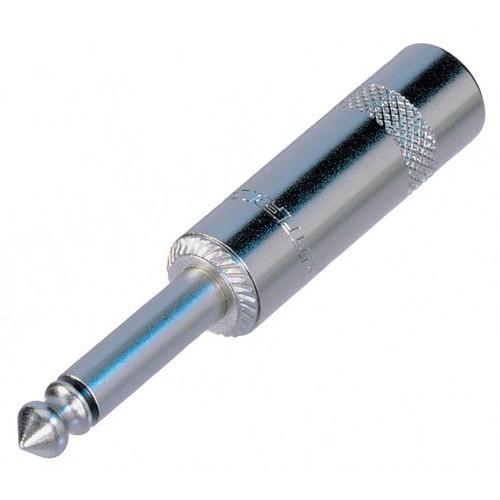

The NYS224L Mono 2-Pole 1/4" Phone Plug from Neutrik features a long turned brass handle and large cable outlet of 0.3" (8mm).
If you own a Neutrik audio connectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Neutrik NYS224L Mono 2-Pole 1/4" Phone Plug NYS224L in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Neutrik NYS224L Mono 2-Pole 1/4" Phone Plug NYS224L:
Specifications
    Electrical
    Dielectric Strength 500 VDC
    Insulation Resistance ≥1 GOhms
    Contact Resistance Depends on mating connector
    Rated Current Depends on mating connector
    Mechanical
    Cable O.D. 0.3" (8 mm)
    Lifetime 1000 mating cycles
    Wire Size Not specified by the manufacturer
    Material
    Contact Plating 2 µm Ni
    Contacts Brass (CuZn39Pb3)
    Shell Zinc diecast (ZnAl4Cu1)
    Shell Plating Nickel
    Insulation Thermoplastic
    General
    Connection Type Plug
    Gender Male
    Solderability Complies with IEC68-2-20
    Temperature Range -4 to 158°F (-20 to 70°C)
    Dimensions (Ø x L) 0.49 x 2.91" (12.5 x 74 mm)
    Packaging Info
    Package Weight 0.02 lb
    Box Dimensions (LxWxH) 4.6 x 4.0 x 0.3"
