User manual NewerTech 8TB Guardian MAXimus RAID 1 Quad NWTGM3Q7H40T128

Operating instructions and pdf manual for use - NewerTech 8TB Guardian MAXimus RAID 1 Quad NWTGM3Q7H40T128 User manual, User manual NewerTech 8TB Guardian MAXimus RAID 1 Quad NWTGM3Q7H40T128, NewerTech, 8TB, Guardian, MAXimus, RAID, 1, Quad, NWTGM3


User manual for NewerTech 8TB Guardian MAXimus RAID 1 Quad NWTGM3Q7H40T128

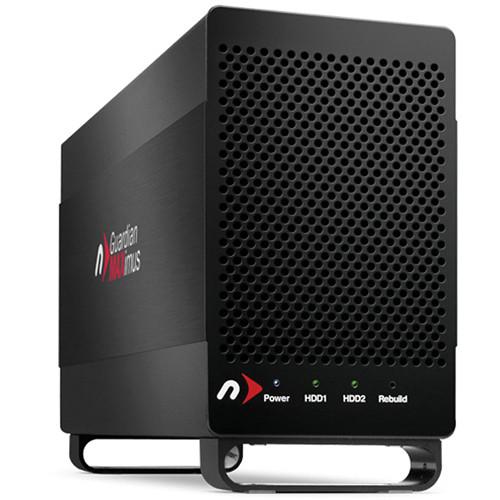

NewerTech 8TB Guardian MAXimus RAID 1 Quad NWTGM3Q7H40T128
  • Manufacturer: NewerTech
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Hard Drive Arrays
  • Safety instructions
  • Startup and operation of the hard drive arrays
  • Tips for setting up your NewerTech
  • Settings and expert assistance
  • Contact NewerTech service
  • Troubleshooting
  • Warranty information
  • Price: 449 USD
We recommend checking out our discussion threads on the NewerTech 8TB Guardian MAXimus RAID 1 Quad NWTGM3Q7H40T128, which address similar problems with connecting and setting up Hard Drive Arrays NewerTech.



User manual for the NewerTech 8TB Guardian MAXimus RAID 1 Quad NWTGM3Q7H40T128

The user manual for the NewerTech 8TB Guardian MAXimus RAID 1 Quad NWTGM3Q7H40T128 provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Hard Drive Arrays.

The 8TB Guardian MAXimus RAID 1 Quad Interface Hard Drive Array from Newer Technology provides live activity backup of financial records, medical files, business projects and any critical data that you simply cannot risk losing. It guards against data loss by writing the same information in real-time to two separate drives for a mirrored copy. It protects you from costly system downtime and data restoring after a single hard drive-equipped system crash.
If you own a NewerTech hard drive arrays and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NewerTech 8TB Guardian MAXimus RAID 1 Quad NWTGM3Q7H40T128 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NewerTech 8TB Guardian MAXimus RAID 1 Quad NWTGM3Q7H40T128Download user manual for NewerTech 8TB Guardian MAXimus RAID 1 Quad NWTGM3Q7H40T128
(PDF file, 5.62 MB)
Additional parameters of the NewerTech 8TB Guardian MAXimus RAID 1 Quad NWTGM3Q7H40T128:
Specifications
    Drive Type Two paired 3.5" SATA devices
    Bridge Chipset Custom Oxford 946 eSATA, FW400 (1394A), FW800 (1394B) and USB 3.0 integrated chipset
    Standard Mechanisms 4 TB* x2 HGST Deskstar 7K4000 HDD

    Note: *Total accessible capacity varies depending upon operating environment (typically 5-10% less). The actual total capacity will depend on your own defined file settings/preferences.

    Drive Rotation Speed 7200 rpm
    Drive Cache Size 128 MB (2 drives with 64 MB cache each)
    Maximum Data Transfer Rate USB 3.0 - 300 MBps
    eSATA - 300 MBps
    FireWire 800 - 100 MBps
    FireWire 400 - 50 MBps
    USB 2.0 - 60 MBps
    Mac System Requirements Mac OS 8.6 to 9.2.2 compatible, OS X 10.1.x and later. Including 'Lion' 10.7.x (10.2 or later required for FW800 and USB 3.0)
    eSATA: Macintosh with eSATA interface, either built in or via 3rd party PCI eSATA card
    FireWire 800: Macintosh with FireWire 800 interface, either built in or via 3rd party PCI FireWire 800 card
    FireWire 400: Macintosh with FireWire 400 interface, either built in or via 3rd party PCI FireWire 400 card
    USB 3.0: Macintosh with USB 3.0 interface, either built in or via 3rd party PCI USB 3.0 card
    USB 2.0: Macintosh with USB 2.0 interface, either built in or via 3rd party PCI USB 2.0 card
    Windows System Requirements eSATA: PC with eSATA interface, either built in or via 3rd party PCI eSATA card
    FireWire 800: PC with FireWire 800 interface, either built in or via 3rd party PCI FireWire 800 card
    FireWire 400: PC with FireWire 400 interface, either built in or via 3rd party PCI FireWire 400 card
    USB 3.0: PC with USB 3.0 interface, either built in or via 3rd party PCI USB 3.0 card
    USB 2.0: PC with USB 2.0 interface, either built in or via 3rd party PCI USB 2.0 card
    Linux Requirements Linux compatible via supported USB and FireWire interfaces
    Recommended eSATA Cards Cards that OWC has tested and qualified for the Guardian MAXimus
    eSATA extender cables for Mac Pro
    Operating Environment MTBF: > 300,000 power-on hours
    Operating Temperature: 41 to 131°F (5 to 55°C)
    Non-Operating Temperature: -40 to 149°F (-40 to 65°C)
    Operating Humidity: 8 to 90% RH (non-condensing)
    Non-Operating Humidity: 5 to 95% RH (non-condensing)
    Shock:
    Operating: 65G 2mS
    Non-Operating: 175G 2mS
    Operating Vibration: 1.0G (5 to 300 Hz)
    Non-Operating Vibration: 5.0G (5 to 500 Hz
    Dimensions (DxWxH) 8.97 x 2.88 x 5.25" (22.78 x 7.31 x 13.33 cm)
    Weight 2.34 lb (1.06 kg)
    Packaging Info
    Package Weight 7.55 lb
    Box Dimensions (LxWxH) 11.0 x 8.8 x 4.5"
    The user manual for the NewerTech 8TB Guardian MAXimus RAID 1 Quad NWTGM3Q7H40T128 can be downloaded in .pdf format if it did not come with your new hard drive arrays, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NewerTech users keep a unique electronic library for NewerTech hard drive arrayss, where you can use our link to download the user manual for the NewerTech 8TB Guardian MAXimus RAID 1 Quad NWTGM3Q7H40T128.

    The user manual lists all of the functions of the NewerTech 8TB Guardian MAXimus RAID 1 Quad NWTGM3Q7H40T128, all the basic and advanced features and tells you how to use the hard drive arrays. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NewerTech service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NewerTech 8TB Guardian MAXimus RAID 1 Quad NWTGM3Q7H40T128. User manuals are also available on the NewerTech website under Computers & Solutions - Drives & Storage - Hard Drive Arrays.
