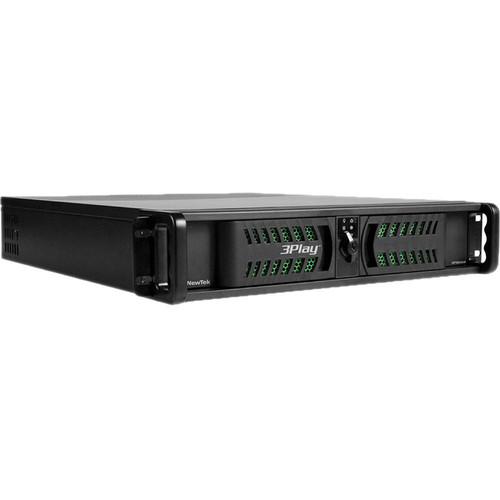

The NewTek 3Play 425 (Educational Edition) is a multi-channel instant replay system for small live sports productions. You can use it standalone or with any TriCaster for a combination of instant replay and video switching. 3Play 425 supports up to four channels of live video input and recording in any combination of supported inputs, formats, and frame rates. This discounted educational edition is available for accredited educators and institutions.

Video inputs consist of four HD/SD-SDI and HD/SD Component / Composite / Y/C, all on BNC connectors. Video outputs consist of two HD/SD-SDI, two analog, HDMI, and several display output ports, with DVI the main user interface output port. Recording formats range from 480/60i to 1080/30p/24p/60i, and you can record up to 40 hours of 1080i onto an internal storage drive and an included 1TB removable drive, simultaneously recording up to two channels per drive. An optional full-function control surface with backlit buttons, a rotary dial, and a T-bar can be incorporated for intuitive hands-on control.
If you own a NewTek streaming media solutions & servers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NewTek 3Play 425 (Educational Edition) FG-000811-R001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the NewTek 3Play 425 (Educational Edition) FG-000811-R001:
Specifications
    Video Inputs 4x HD/SD-SDI on BNC
    4x Component or Composite + Y/C on BNC
    1x Genlock (and 1x loop-through) on BNC
    Video Output 2x HD/SD-SDI on BNC
    2x Component or Composite + Y/C on BNC
    1x HDMI (follows the actively-controlled playout channel)
    1x DVI main user interface multiview port
    1x HDMI auxiliary port for display
    Standards HD-SDI video conforms to SMPTE 292M
    SD video conforms to SMPTE 259M and ITU-R BT.656
    Analog audio levels conform to SMPTE RP-155
    Other Connections 1x Gigabit Ethernet port for networking
    4x USB for storage and keyboard/mouse
    1x PS/2 port for keyboard/mouse
    1x eSATA for storage
    1x Tally 15-pin
    Audio Inputs 4x HD/SD-SDI embedded on BNC
    3x 2 balanced 1/4" ports
    1x 2 balanced XLR
    Audio Outputs 2x HD/SD-SDI embedded on BNC
    1x 2 balanced 1/4" ports
    1x 2 balanced XLR
    Output Modes A, B, A + B
    Recording Simultaneous recording of up to 4 live video sources
    Recording Format Native recording up to 1080p resolution in MPEG-2 all I-frame format
    Recording Capacity 40 hours of 1080i onto internal drive and 1 TB removable media drive (included)
    Supported Formats 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p, 720/24p, 480/60i
    Processing Video: 4:4:4:4, 32-bit floating point
    Audio: 4 channels, 96 kHz, 32-bit floating point
    Rack Height 2 RU
    Dimensions 19 x 3.5 x 21.5" (48 x 9 x 55 cm)
    Weight 26 lb (12 kg)
    Packaging Info
    Package Weight 46.0 lb
    Box Dimensions (LxWxH) 25.5 x 25.0 x 16.5"
    The user manual for the NewTek 3Play 425 (Educational Edition) FG-000811-R001 can be downloaded in .pdf format if it did not come with your new streaming media solutions & servers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NewTek users keep a unique electronic library for NewTek streaming media solutions & serverss, where you can use our link to download the user manual for the NewTek 3Play 425 (Educational Edition) FG-000811-R001.
