User manual NewTek 3Play 425 Full Unit Replay System 3P400090-0101

Operating instructions and pdf manual for use - NewTek 3Play 425 Full Unit Replay System 3P400090-0101 User manual, User manual NewTek 3Play 425 Full Unit Replay System 3P400090-0101, NewTek, 3Play, 425, Full, Unit, Replay, System, 3P400090-0101,


User manual for NewTek 3Play 425 Full Unit Replay System 3P400090-0101

NewTek 3Play 425 Full Unit Replay System 3P400090-0101
  • Manufacturer: NewTek
  • Basic description and contents of package
  • Product classification: Professional Video - Studio & EFP Equipment - Streaming Media Solutions & Servers
  • Safety instructions
  • Startup and operation of the streaming media solutions & servers
  • Tips for setting up your NewTek
  • Settings and expert assistance
  • Contact NewTek service
  • Troubleshooting
  • Warranty information
  • Price: 11 USD
We recommend checking out our discussion threads on the NewTek 3Play 425 Full Unit Replay System 3P400090-0101, which address similar problems with connecting and setting up Streaming Media Solutions & Servers NewTek.



User manual for the NewTek 3Play 425 Full Unit Replay System 3P400090-0101

The user manual for the NewTek 3Play 425 Full Unit Replay System 3P400090-0101 provides necessary instructions for the proper use of the product Professional Video - Studio & EFP Equipment - Streaming Media Solutions & Servers.

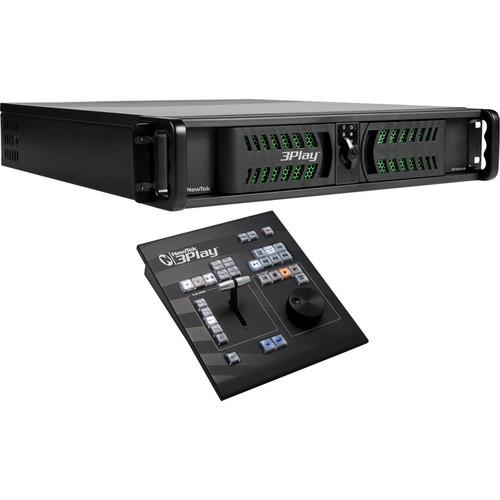

The 3Play 425 Full Unit Replay System with Controller from NewTek is a 6-channel instant-replay slow-motion HD video server with a controller unit designed for use in control rooms and production vehicles of all sizes.
If you own a NewTek streaming media solutions & servers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NewTek 3Play 425 Full Unit Replay System 3P400090-0101 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the NewTek 3Play 425 Full Unit Replay System 3P400090-0101:
Video Input 4 simultaneous inputs
Any combination of:
HD-SDI, HD component, SD-SDI, SD component, composite, or Y/C (BNC)
Video Output 2 fully independent, simultaneous play-out channels
HD-SDI, HD Component, SD-SDI, SD Component, Composite, or Y/C (BNC)
HDMI output
Dedicated HDMI multi-view output
Network output for over-the-network input to TriCaster
Mode A; B; A+B
Video Formats NTSC Model: 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p, 720/24p, 480/60i
Multi-Standard Model: NTSC-J; PAL 1080/25p, 1080/50i, 720/50p, 720/25p, 576/25i
Supports 16:9 and 4:3 aspect ratios
Channels Recording: 4
Recording Capacity More than 30 hours of combined 1080i storage across internal drive and removable drive (15+ hours per drive)
MPEG-2 all I-frame
Genlock Locks to HD or SD analog signals
Supports either tri-level or bi-level sync sources
Multi-viewer Supported with 2nd display, including HUD
Audio Inputs 4 x SDI embedded
3 x 2 balanced 1/4" (Mic/Line)
1 x 2 balanced XLR (Mic/Line)
Audio Outputs 2 x SDI embedded
1 x 2 balanced XLR
1 x 2 balanced 1/4"
Audio Processing Audio is uncompressed and sampled at 96 kHz, 32-bit
Time Code LTC
Standards For Audio/Video:
HD-SDI video conforms to SMPTE 292M
SD video conforms to SMPTE 259M and ITU-R BT.656
Analog audio levels conform to SMPTE RP-155
Controller Dedicated controller with T-bar, jog wheel, speed presets, and clip transport
Dimensions 19.0 x 3.5 x 22.5" (48.3 x 8.9 x 57.2 cm)
Weight 28.0 lb (12.7 kg)
Packaging Info
Package Weight 53.2 lb
Box Dimensions (LxWxH) 26.0 x 25.0 x 16.5"
The user manual for the NewTek 3Play 425 Full Unit Replay System 3P400090-0101 can be downloaded in .pdf format if it did not come with your new streaming media solutions & servers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NewTek users keep a unique electronic library for NewTek streaming media solutions & serverss, where you can use our link to download the user manual for the NewTek 3Play 425 Full Unit Replay System 3P400090-0101.

The user manual lists all of the functions of the NewTek 3Play 425 Full Unit Replay System 3P400090-0101, all the basic and advanced features and tells you how to use the streaming media solutions & servers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NewTek service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NewTek 3Play 425 Full Unit Replay System 3P400090-0101. User manuals are also available on the NewTek website under Professional Video - Studio & EFP Equipment - Streaming Media Solutions & Servers.
