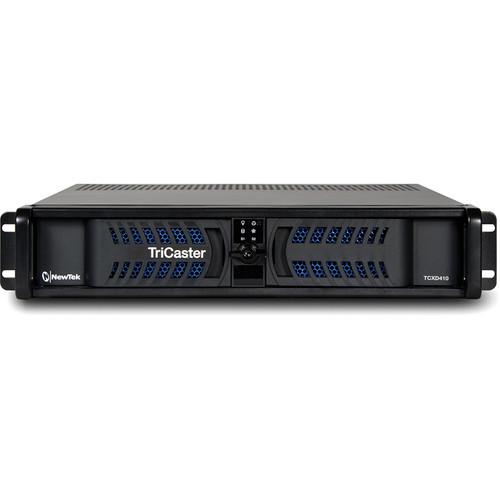

The NewTek TriCaster 410 is an all-in-one, 4-camera SDI production solution that allows you to simultaneously broadcast, project, stream, and record. With the TriCaster 410 you get all the gear you need in an all-in-one, 2RU system that's easy to use and ready to travel.

Built for live event producers and web casters on-the-move, the TriCaster 410 delivers a full live production package. Create high-quality shows with custom visuals like 3D holographic virtual sets, and improve your workflow with a wide variety of productivity enhancing tools. Providing creative flexibility, but staying free of workflow and post-production extras, the TriCaster 410 cuts down equipment expenditure to fit your business needs.

You have many choices for handling live operations with compatible TriCaster and third party control surfaces along with support for breakout control of audio, camera, key commands, and even on-camera sequence triggering. The TriCaster 410 gives you complete control, whether you are producing for broadcast, streaming live to the Web, projecting to a big screen, creating an engaging second-screen experience, or all of the above. Included with the unit is a keyboard, mouse, power cord, four rubber feet for desktop use, two set of keys, and a BNC removal tool.
If you own a NewTek production switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NewTek TriCaster 410 FG-000716-R001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NewTek  TriCaster 410 FG-000716-R001Download user manual for NewTek TriCaster 410 FG-000716-R001
(PDF file, 13.07 MB)
Additional parameters of the NewTek TriCaster 410 FG-000716-R001:
Specifications
    Switcher 15 Channels:
    6 external
    5 internal
    4 M/E buses
    Video Input 4 x SDI
    Network Sources 2 live inputs via RJ-45 Gigabit Ethernet connection

    Selectable from any available network sources with support for video, audio, and alpha channel
    Robotic Camera Support Up to 4 live Pan-Tilt-Zoom (PTZ) robotic cameras via standard serial and network protocols

    Preset system and user interface control over camera orientation, zoom, focus, and iris
    Media 4 integrated digital media sources for video, graphics and sounds
    2 x DDRs 1 x GFX 1 x Sound
    Encoding Formats 2 primary DSK channels
    1 additional key layer per M/E bus, each with independent transition controls, 3D DVE, scaling, cropping, and integrated TransWarp effects
    Hotspots Up to 8 freely configurable, interactive hotspots per input for macro control
    Video Output Configurable for up to 5 output connections, with support for key output and per-connection signal settings

    2 x SDI
    1 x HDMI output
    Recording QuickTime (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio)
    MPEG-2 (high or normal profile)
    AVI (SpeedHQ)
    H.264 (high or web quality)
    Media Publishing Direct content upload to YouTube, Facebook, Twitter, FTP, local or external volumes, and network servers
    Live Streaming HD live streaming with simultaneous archive
    Presets in up to 720p
    Audio Inputs 4 x SDI embedded
    1 x L/R balanced XLR (mic/line)
    1 x L/R balanced 1/4" (mic/line)
    Audio Outputs 2 x SDI embedded
    1 x L/R balanced XLR
    1 x 2 balanced 1/4" (AUX)
    1 x Stereo 1/4" (phones)
    Supported Formats NTSC Model: 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p, 720/24p, 480/60i
    Playback Media Formats AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG (1, 2, all profiles, program or transport streams), MP4, WMV, WebM, PSD, PNG, TGA, BMP, JPEG, EXR, RAW, TIF, AIFF, MP3, WAV, and more, with Import Media application for batch import with optional transcoding of files (including Apple ProRes)
    Export Media Formats Apple ProRes, AVI, DV, DVCPro, DVD, H.264, MOV, MPEG-2, MJPEG, MP4, WebM and more
    Monitoring For user interface and multi-view displays

    1 x DVI
    1 x HDMI
    Signal Monitoring Integrated waveform and vectorscope
    Full field rate with digital calibration
    Color preview
    Support for ITU-R Rec. 601 and 709
    Latency Ultra-low, between 1 and 2 frames
    Processing Video: 4:4:4, 32-bit floating point
    Audio: 4 channels, 96 kHz, 32-bit floating point
    Standards A/V Standards: HD-SDI video conforms to SMPTE 292M
    SD video conforms to SMPTE 259M and ITU-R BT.656
    Analog audio levels conform to SMPTE RP-155
    MIDI Support for standard MIDI protocol enabling third-party MIDI device control of TriCaster operations via macros
    Power Supply 430 W
    Rack Mountable 2RU rack mount, with 430 W power supply and multi-tiered hardware and software fail-safe
    Dimensions 19.0 x 3.5 x 21.5" (48.3 x 8.9 x 54.6 cm)
    Packaging Info
    Package Weight 38.85 lb
    Box Dimensions (LxWxH) 25.75 x 24.75 x 9.5"
