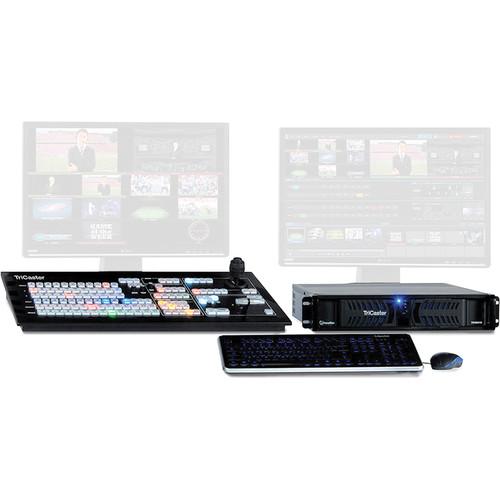

The NewTek TriCaster 410 is an all-in-one, 4-camera SDI production solution that allows you to simultaneously broadcast, project, stream, and record. With the TriCaster 410 you get all the gear you need in an all-in-one, 2RU system that's easy to use and ready to travel. A TriCaster 460 Control Surface comes included for intuitive live production control.
Built for live event producers and web casters on-the-move, the TriCaster 410 delivers a full live production package. Create high-quality shows with custom visuals like 3D holographic virtual sets, and improve your workflow with a wide variety of productivity enhancing tools. Providing creative flexibility, but staying free of workflow and post-production extras, the TriCaster 410 cuts down equipment expenditure to fit your business needs.
You have many choices for handling live operations with compatible TriCaster and third party control surfaces along with support for breakout control of audio, camera, key commands, and even on-camera sequence triggering. The TriCaster 410 gives you complete control, whether you are producing for broadcast, streaming live to the Web, projecting to a big screen, creating an engaging second-screen experience, or all of the above. Included with the unit is a keyboard, mouse, power cord, four rubber feet for desktop use, two set of keys, and a BNC removal tool.
The TriCaster 460 Control Surface lets you maintain a small production footprint without sacrificing manual control. With an intuitive layout, familiar live production controls, and compact frame, the TriCaster 460 Control Surface is suitable for mobile production or tight spaces. It features illuminated buttons, a premium T-Bar and 3-axis joystick for precision control of effects, zooms, and transitions, and a durable, ergonomic design.
If you own a NewTek production switchers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the NewTek TriCaster 410 with Control Surface FG-000480-R001 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the NewTek TriCaster 410 with Control Surface FG-000480-R001:
Specifications
Switcher
15 Channels: 6 external 5 internal 4 M/E buses
Video Input
4 x SDI
Network Sources
2 live inputs via RJ-45 Gigabit Ethernet connection
Selectable from any available network sources with support for video, audio, and alpha channel
Robotic Camera Support
Up to 4 live Pan-Tilt-Zoom (PTZ) robotic cameras via standard serial and network protocols
Preset system and user interface control over camera orientation, zoom, focus, and iris
Media
4 integrated digital media sources for video, graphics and sounds 2 x DDRs 1 x GFX 1 x Sound
Encoding Formats
2 primary DSK channels 1 additional key layer per M/E bus, each with independent transition controls, 3D DVE, scaling, cropping, and integrated TransWarp effects
Hotspots
Up to 8 freely configurable, interactive hotspots per input for macro control
Video Output
Configurable for up to 5 output connections, with support for key output and per-connection signal settings
2 x SDI 1 x HDMI output
Recording
QuickTime (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio) MPEG-2 (high or normal profile) AVI (SpeedHQ) H.264 (high or web quality)
Media Publishing
Direct content upload to YouTube, Facebook, Twitter, FTP, local or external volumes, and network servers
Live Streaming
HD live streaming with simultaneous archive Presets in up to 720p
Audio Inputs
4 x SDI embedded 1 x L/R balanced XLR (mic/line) 1 x L/R balanced 1/4" (mic/line)
Audio Outputs
2 x SDI embedded 1 x L/R balanced XLR 1 x 2 balanced 1/4" (AUX) 1 x Stereo 1/4" (phones)
AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG (1, 2, all profiles, program or transport streams), MP4, WMV, WebM, PSD, PNG, TGA, BMP, JPEG, EXR, RAW, TIF, AIFF, MP3, WAV, and more, with Import Media application for batch import with optional transcoding of files (including Apple ProRes)
Export Media Formats
Apple ProRes, AVI, DV, DVCPro, DVD, H.264, MOV, MPEG-2, MJPEG, MP4, WebM and more
Monitoring
For user interface and multi-view displays
1 x DVI 1 x HDMI
Signal Monitoring
Integrated waveform and vectorscope Full field rate with digital calibration Color preview Support for ITU-R Rec. 601 and 709
Latency
Ultra-low, between 1 and 2 frames
Processing
Video: 4:4:4, 32-bit floating point Audio: 4 channels, 96 kHz, 32-bit floating point
Standards
A/V Standards: HD-SDI video conforms to SMPTE 292M SD video conforms to SMPTE 259M and ITU-R BT.656 Analog audio levels conform to SMPTE RP-155
MIDI
Support for standard MIDI protocol enabling third-party MIDI device control of TriCaster operations via macros
Power Supply
430 W
Rack Mountable
2RU rack mount, with 430 W power supply and multi-tiered hardware and software fail-safe
