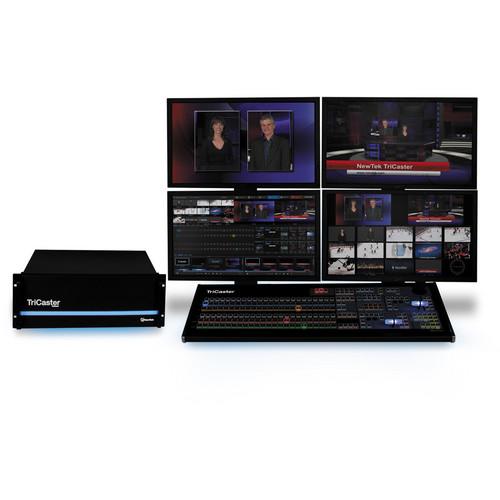

The NewTek TriCaster 8000 is an 8-camera input, tightly integrated hardware and software solution for streaming video online and for producing live events. The TriCaster comes with an appropriate control surface and with a powerful user interface. Altogether the package offers built-in multi-track ISO recording with broadcast, projector, and online output options, completely customizable visuals, powerful 3D effects, video playback, graphics, transitions, virtual sets and more.

Digital and analog outputs are available for streaming to broadcast machines, to live projectors, and to video routers. You can also connect to a network by Ethernet and stream videos directly to the web. At the same time, you can store files to very high-capacity internal and external drives.

The 8000 is a 4RU device designed for large-scale, multi-camera production in native full-resolution HD.
If you own a NewTek production switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NewTek TriCaster 8000 FG-000036-R001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for NewTek  TriCaster 8000 FG-000036-R001Download user manual for NewTek TriCaster 8000 FG-000036-R001
(PDF file, 13.53 MB)
Additional parameters of the NewTek TriCaster 8000 FG-000036-R001:
    Channels 24-10 external
    6 internal
    8 M/E buses
    Video Input 8 simultaneous live video sources, configurable as SDI, analog or router inputs, in any combination of HD-SDI, HD Component, SD-SDI, SD Component, Y/C (BNC) or Composite connections and resolutions
    Network Sources 2 live sources via Gigabit connection, selectable from any networked computer or Apple AirPlay device
    Media 6 integrated digital media sources for video, graphics and sounds
    Frame Buffer 9 channels for static graphics or watch folder
    Mix / Effect Buses 8 re-entrant M/Es with independent 3D positioning, scaling, cropping, keying, transitions and Proc Amp controls
    Macros Record operation sequences and attach to keyboard shortcuts, control surface actions or on-screen hotspots
    DSKs 4 primary DSK channels and 4 layers of overlay per M/E bus, each with independent transition controls, 3D positioning, scaling, cropping and integrated TransWarp effects
    Effects and Transitions Integrated TransWarp effects engine on all effects channels supports standard transitions, customizable animation store transitions with audio, and overlay effects

    - Animation Store Creator for custom animations
    - Supports per-pixel alpha blending between sources and real-time 3D warping of video or graphics
    Virtual Sets 24 HD live virtual sets, with multiple camera angles, real-time reflections, specular highlights, animated zoom and presets
    - Live pan and zoom of virtual camera and customizable virtual camera presets with animated, pan, zoom and pedestal moves
    Hotspots Up to 8 freely configurable, interactive hotspots per input
    Video Output Up to 14 configurable connections and 8 A/V output signals

    - Mix and match output formats, connections, and resolutions
    - HD-SDI, HD Component, SD-SDI, SD Component, Y/C (BNC) or Composite
    - HDMI and VGA for additional displays or projectors
    - Network output for live streaming and/or sending A/V output to network-connected TriCaster
    Recording Multi-track, multi-format recording of up to 8 simultaneous channels via IsoCorder technology

    - Native recording in up to 1080p with timecode
    Recording Capacity ~ 50 hours 1080i
    or ~ 300 hours 480i
    4 trayless SATA III removable drive bays with hot-swap support for unlimited storage and backup
    Social Media Publishing Integrated application for content upload to YouTube, Facebook, Twitter, Flickr, FTP or network servers
    Live Streaming HD live streaming via Gigabit connection, with presets in up to 720p, supporting most common streaming profiles and custom multi-bitrate streaming profiles, configured via browser based plug-ins, Adobe Flash to Flash media server connections or Microsoft Windows Media Push/Pull

    - Streaming Profile Manager with integrated Web browser and integrated Livestream plug-in
    Audio Inputs 8 SDI embedded
    8 AES3/EBU
    8 x 2 balanced XLR (Mic/Line)
    Phantom power support
    Audio Outputs 3 SDI embedded
    2 AES3/EBU
    4 balanced XLR
    4 balanced XLR (AUX)
    1 stereo 1/4" for headphones
    Audio Mixing Integrated multi-channel audio mixer for internal and external audio sources, outputs, stream and headphones

    - Seven-band equalizer and full stereo compressor/limiter per input and output
    - Digital audio inputs equipped with audio time-base synchronizers
    - Supports companion iPad audio mixing app and Avid Artist Series audio control surfaces
    Supported Formats NTSC: 1080/30p, 1080/24p, 1080/60i, 720/60p, 720/30p, 720/24p, 480/60i
    Playback Media Formats AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG (1, 2, all profiles, program or transport streams), MP4, WMV, WebM, PSD, PNG, TGA, BMP, JPEG, EXR, RAW, TIF, AIFF, MP3, WAV, and more, with Import Media application for batch import with optional transcoding of files (including Apple ProRes)

    - NewTek SpeedHQ codecs for Mac and PC for extended file compatibility with TriCaster and system applications
    Export Media Formats Export media application for batch copying with optional transcoding of files to compatible formats for different applications and devices: AVI, DV, DVCPro, DVD, H.264, MOV, MPEG-2, MJPEG, MP4, WebM and more

    - Presets for NLEs: Adobe Premiere, Avid Media Composer, Apple Final Cut Pro, and more
    - Presets for mobile platforms: Android, iPad, iPhone, iPod Touch and more
    Monitoring Freely configurable for any combination of input sources, program, preview, M/E buses, clocks or images
    Signal Monitoring Integrated Waveform and Vectorscope, full field rate with color preview and support for ITU-R Rec. 601 and 709
    Processing Video: 4:4:4:4, 32-bit floating point
    Audio: 4 channels, 96 kHz, 32-bit floating point
    Fail-Safe Multi-tiered hardware and software fail-safe
    Rack Height 4U rack mount
    Power 550W redundant, removable power supply
    Dimensions 19 x 7.25 x 21.5" (48.3 x 18.4 x 54.6 cm)
    Weight 42 lbs (19 kg)
    Packaging Info
    Package Weight 100.0 lb
    Box Dimensions (LxWxH) 25.0 x 24.0 x 13.0"
