User manual for the Night Optics Observer 160x120 25mm Thermal Imager TM-X16-25

The user manual for the Night Optics Observer 160x120 25mm Thermal Imager TM-X16-25 provides necessary instructions for the proper use of the product Optics - Night & Thermal Vision - Thermal Imagers.

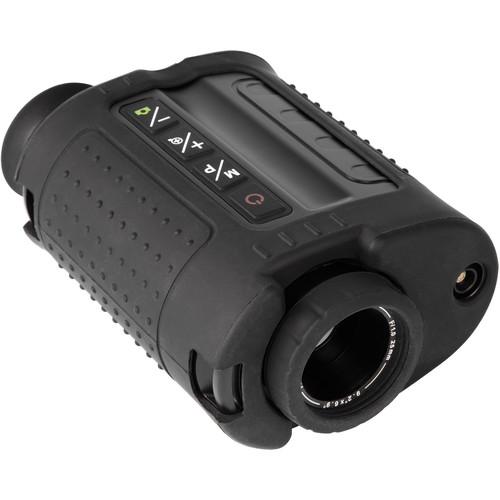

The Observer 160x120 25mm Thermal Imager from Night Optics is more compact and lightweight observation tool than its peers. It is intended for observing livestock and wildlife, surveillance, security, or search and rescue. The 160x120 uncooled ASI FPA microbolometer and 25mm f/1.0 lens system enables a maximum detection range out to 500 yd. Images are viewed through a 1x eyepiece on a 640x480 OLED display with a 2x digital option. Three reticles, nine selectable color schemes and two polarities provide customizable viewing to suit the situation or personal preferences. An on-board SD memory card slot enables video and still images to be captured, stored, and viewed on the Observer. A video-out port allows the use of an external monitor or recording device.
If you own a Night Optics thermal imagers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Night Optics Observer 160x120 25mm Thermal Imager TM-X16-25 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Night Optics Observer 160x120 25mm Thermal Imager TM-X16-25:
Array Configuration 160x120 uncooled ASI FPA microbolometer
Refresh Rate NTSC: 60 Hz
PAL: 50 Hz
Pixel Size 25 µm
Spectral Response 8-14 µm
Thermal Sensitivity (NETD) <120 mK
Magnification 1x optical
2x Digital
Lens System 25mm f/1.0 fixed focus
Field of View 9.15° x 6.87°
Minimum Focus Distance 16' (5 m)
File Format Video: AVI
Still: Bitmap
Video Output Signal: NTSC / PAL
Resolution: 320 x 240
Display 640 x 480 OLED
Memory Card SD card slot
Power Source Rechargeable battery pack
12 VDC with included adapter
110 VAC with included adapter
Run Time 3 hr maximum, with battery pack
Weatherproofing Weatherproof
Temperature Ranges -4 to 122°F (-20 to 50°C)
Dimensions 7.1 x 3.8 x 2.6" (18.2 x 9.7 x 6.8 cm)
Weight 16.6 oz (470 g)
The user manual for the Night Optics Observer 160x120 25mm Thermal Imager TM-X16-25 can be downloaded in .pdf format if it did not come with your new thermal imagers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Night Optics users keep a unique electronic library for Night Optics thermal imagerss, where you can use our link to download the user manual for the Night Optics Observer 160x120 25mm Thermal Imager TM-X16-25.

The user manual lists all of the functions of the Night Optics Observer 160x120 25mm Thermal Imager TM-X16-25, all the basic and advanced features and tells you how to use the thermal imagers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Night Optics service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Night Optics Observer 160x120 25mm Thermal Imager TM-X16-25. User manuals are also available on the Night Optics website under Optics - Night & Thermal Vision - Thermal Imagers.
