User manual for the Night Optics Sentry 14 1x 3rd Generation White NG-P14F3BW
The user manual for the Night Optics Sentry 14 1x 3rd Generation White NG-P14F3BW provides
necessary instructions for the proper use of the product Optics - Night & Thermal Vision - NV Monoculars & Multi-Systems.

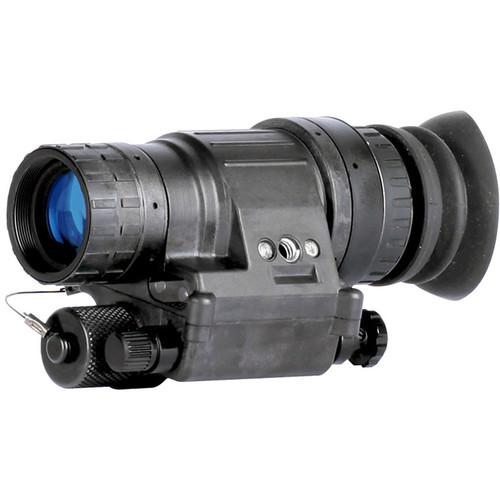

Ideal for security surveillance, search-and-rescue, and tactical applications, the Sentry 14 1x 3rd Generation White Phosphor Night Vision Monocular and Head Mount Kit from Night Optics is equally optimized for handheld, weapon-mounted, or headgear-mounted use. It features a 3rd generation filmless autogated intensifier tube with resolution of 64-72 lp/mm and Automatic Brightness Control. It will enable you to see brighter and clearer images than 1st and 2nd generation devices with similar optics. While the filmless microchannel plate improves signal-to-noise ratio and efficiency of the intensifier, the autogating greatly increases sensitivity in low light and varying lighting conditions, protects against bright light burnout, and extends life. The tube is also enhanced with the white phosphor technology for operators who prefer black and white images to green ones. You can adjust image brightness or detail with a manual gain control. To maximize image brightness in total darkness, the monocular carries a built-in IR illuminator that casts extra infrared light on your targets. To add convenience and stealth for tactical applications, the device offers activation status indicator and automatic off function when you turn it up or take of off your headgear. The 1x lens system, upgradable to higher magnifications with optional lenses, offers a wide 40° field of view and an ultra-short minimal focusing distance of 10".
The housing is made of a lightweight, impact-resistant polymer that offers fogproof and waterproof performance, with a submersion rating of 66'. To provide extra protection and stability for optics, the lens's housing is made of aluminum. To prevent spill-over of light from the intensifier tube and offer comfortable cushion between your eye's orbit and the eyepiece, the eyepiece has a wide rubber eyecup.

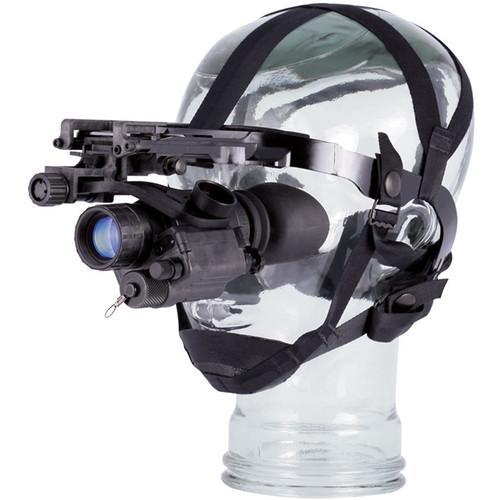

The included head mount is fully adjustable and has hook and loop fasteners on its sides and the top, chin support, and extra pads for eye brows. It features a lockable gear and provides firm and stable attachment for your night vision device whether you are moving or standing still.
If you own a Night Optics nv monoculars & multi-systems and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Night Optics Sentry 14 1x 3rd Generation White NG-P14F3BW in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Night Optics Sentry 14 1x 3rd Generation White NG-P14F3BW:
Specifications
Intensifier Tube
3rd generation 64-72 lp/mm Filmless Autogated White phosphor
Magnification
1x
Angle/Field of View
40°
Linear Field of View
2094' @ 1000 yd (698 @ 1000 m)
Lens System
26mm, f/1.2
Minimum Focus Distance
10" (25 cm)
Eye Relief
27 mm
Dioptric Correction
+2 to -6
Infrared Illuminator
Built-in
Battery / Runtime
1 x AA battery / 40 h
Weatherproofing
Waterproof to 66' (20.1 m)
Temperature Ranges
-4 to 122°F (-20 to 50°C)
Dimensions
Monocular: 4.5 x 2.25 x 2" (114 x 57 x 51 mm) Head mount: 11.25 x 8" (286 x 203 mm)
Weight
Monocular: 13.8 oz (391 g) Head mount: 6.2 oz (176 g)
