User manual Night Optics Vulkan 640 Thermal Biocular with 75mm TB-640-F75

Operating instructions and pdf manual for use - Night Optics Vulkan 640 Thermal Biocular with 75mm TB-640-F75 User manual, User manual Night Optics Vulkan 640 Thermal Biocular with 75mm TB-640-F75, Night, Optics, Vulkan, 640, Thermal, Biocular, wit


User manual for Night Optics Vulkan 640 Thermal Biocular with 75mm TB-640-F75

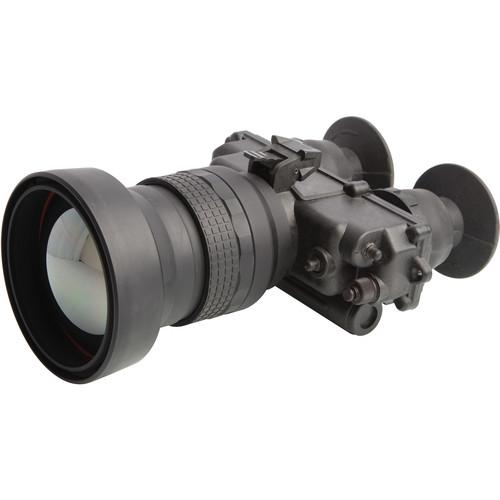

Night Optics Vulkan 640 Thermal Biocular with 75mm TB-640-F75
  • Manufacturer: Night Optics
  • Basic description and contents of package
  • Product classification: Optics - Night & Thermal Vision - Thermal Imagers
  • Safety instructions
  • Startup and operation of the thermal imagers
  • Tips for setting up your Night Optics
  • Settings and expert assistance
  • Contact Night Optics service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Night Optics Vulkan 640 Thermal Biocular with 75mm TB-640-F75, which address similar problems with connecting and setting up Thermal Imagers Night Optics.



User manual for the Night Optics Vulkan 640 Thermal Biocular with 75mm TB-640-F75

The user manual for the Night Optics Vulkan 640 Thermal Biocular with 75mm TB-640-F75 provides necessary instructions for the proper use of the product Optics - Night & Thermal Vision - Thermal Imagers.

The Vulkan 640 Thermal Biocular with 75mm Germanium Objective from Night Optics gives you the ability to observe heat sources of various origins during day or night. This long-wave infrared handheld thermal imager features a 640X480 VOx sensor with spectral range of 7-14 μm and sensitivity of 50mK. The optical system consist of 75mm focal length germanium lens system and offers 1x optical magnification, up to 4x digital zoom, and 9-12º angular field of view. The 800x600 dual OLED display has a refresh rate of 30 Hz and an output with different polarity modes: white hot, black hot, and sepia. A video-out port enables the use of optional external recording in PAL or NTSC format. Thermal imaging is extremely difficult to detect with other devices because they are passive and emit no energy, unlike laser targeting or near-infrared illumination used with NVDs.

Additionally, the Vulkan thermal biocular features water resistant housing, wide rim closed type eyecups for additional light insulation, a diopter and interpupillary adjustment. Also included with the main unit, are a soft case, a lanyard, a shoulder strap, a lens cleaning pad, a video cable, an external power cable, and three CR-123 batteries.
If you own a Night Optics thermal imagers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Night Optics Vulkan 640 Thermal Biocular with 75mm TB-640-F75 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Night Optics Vulkan 640 Thermal Biocular with 75mm TB-640-F75:
Specifications
    Array Configuration 640X480
    Sensor VOx
    Sensitivity <50mK
    Spectral Response 7-14 μm
    Magnification Optical: 1x
    Digital: 2x, 4x
    Field of View 9-12º
    Lens System 75mm focal length germanium lens
    Diopter Adjustment +2 to -6
    Eye Relief 17 mm
    Minimum Focus Distance 10' (3 m)
    Video Output Pal, NTSC
    Refresh Rate 30 Hz
    Display 800x600, dual OLED
    Power Source 3 x CR-123 (3V) / 4 hr max
    Weatherproofing Water resistant
    Dimensions 9.25 x 6 x 4" (235 x 152 x 101 mm)
    Weight 33 oz (940 g)
    The user manual for the Night Optics Vulkan 640 Thermal Biocular with 75mm TB-640-F75 can be downloaded in .pdf format if it did not come with your new thermal imagers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Night Optics users keep a unique electronic library for Night Optics thermal imagerss, where you can use our link to download the user manual for the Night Optics Vulkan 640 Thermal Biocular with 75mm TB-640-F75.

    The user manual lists all of the functions of the Night Optics Vulkan 640 Thermal Biocular with 75mm TB-640-F75, all the basic and advanced features and tells you how to use the thermal imagers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Night Optics service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Night Optics Vulkan 640 Thermal Biocular with 75mm TB-640-F75. User manuals are also available on the Night Optics website under Optics - Night & Thermal Vision - Thermal Imagers.
