User manual Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547

Operating instructions and pdf manual for use - Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547 User manual, User manual Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547, Nikon, D5500, DSLR, Camera, with, 18-55mm, Lens, Red, 1547,

User manual for Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

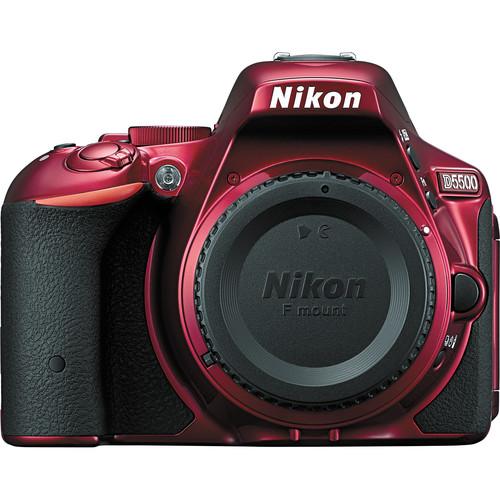

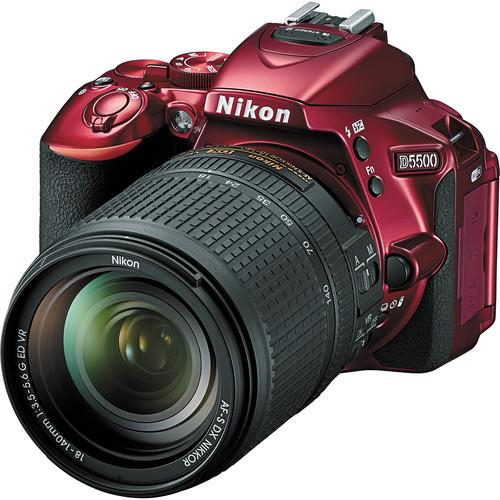

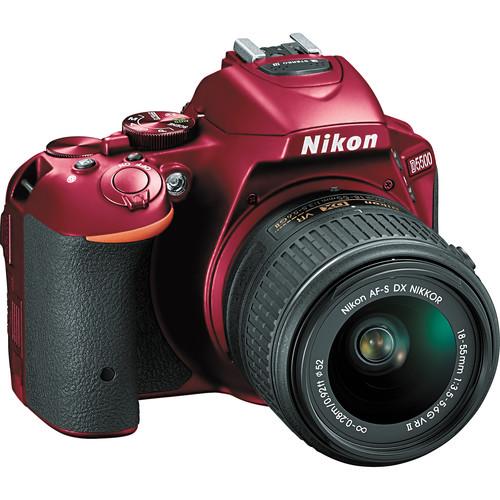

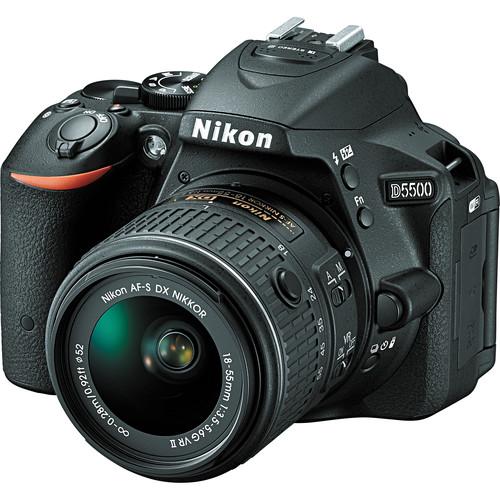

Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547
  • Manufacturer: Nikon
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - DSLR Cameras
  • Safety instructions
  • Startup and operation of the dslr cameras
  • Tips for setting up your Nikon
  • Settings and expert assistance
  • Contact Nikon service
  • Troubleshooting
  • Warranty information
  • Price: 847 USD
Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547 Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547 Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547 Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547 Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547
Click to enlarge image
We recommend checking out our discussion threads on the Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547, which address similar problems with connecting and setting up DSLR Cameras Nikon.


User manual for the Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547

The user manual for the Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547 provides necessary instructions for the proper use of the product Photography - Digital Cameras - DSLR Cameras.

A first for Nikon DSLR cameras, the red D5500 incorporates a touchscreen LCD monitor, giving you greater camera control. It features a 24.2 megapixel sensor and an EXPEED 4 image processor that provide high-resolution images and Full HD 1080p video with notable low-light sensitivity up to ISO 25600 and up to 5 fps. The optical low-pass filter is omitted from the sensor, allowing for additional sharpness in both photos and videos. The D5500 has a 39-point autofocus system with nine cross-type sensors and a 2,016-pixel RGB sensor for precise exposure metering in a wide variety of lighting conditions. Full HD videos can be shot at multiple frame rates up to 60 fps, with full-time continuous auto focusing capabilities. The D5500 also has selectable  audio frequency ranges - Wide and Voice. It also has a built-in intervalometer to record up to 9,999 consecutive exposures at variable intervals.
If you own a Nikon dslr cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547:
Specifications
    Imaging
    Lens Mount Nikon F
    Camera Format DX / (1.5x Crop Factor)
    Pixels Actual: 24.78 MegapixelEffective: Megapixel
    Max Resolution 24 MP: 6000 x 4000
    Aspect Ratio 3:2
    Sensor Type / Size CMOS, 23.5 x 15.6 mm
    File Formats Still Images:
    Audio: Linear PCM
    Bit Depth 14-bit
    Dust Reduction System Yes
    Memory Card Type SD
    SDHC
    SDXC
    Focus Control
    Focus Type Auto & Manual
    Focus Mode Continuous-servo AF (C), Manual Focus (M), Single-servo AF (S)
    Autofocus Points , 9 cross-type
    Viewfinder/Display
    Viewfinder Type Pentamirror
    Viewfinder Coverage 95%
    Viewfinder Magnification Approx. 0.82x
    Diopter Adjustment - 1.7 to +1 m
    Display Screen 3.2" Rear Touchscreen Swivel  LCD (1,037,000)
    Screen Coverage 100%
    Diagonal Angle of View 170.0°
    Exposure Control
    ISO Sensitivity - (Extended Mode: )
    Shutter Type: Electronic & Mechanical
    Speed: 30 - 1/4000 second,  Bulb Mode
    Remote Control MC-DC2 (Optional)
    Mirror Lock-Up Yes
    Metering Method 3D Color Matrix Metering, Center-weighted average metering, Spot metering
    Exposure Modes Modes:
    Metering Range: EV 0.0 - EV 20.0Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV steps)
    White Balance Modes Auto, Cloudy, Direct Sunlight, Flash, Fluorescent, Incandescent, Preset Manual, Shade
    Flash
    Flash Modes Auto
    Auto/Red-eye Reduction
    Fill-in
    Off
    Rear Curtain/Slow Sync
    Rear Sync
    Red-eye Reduction
    Slow Sync
    Slow Sync/Red-eye Reduction
    Built-in Flash Yes
    Guide No. 39' (11.89 m) ISO100
    Max Sync Speed 1 / 200 seconds
    Flash Compensation -3 EV to +1 EV (in 1/3 or 1/2 EV steps)
    Dedicated Flash System iTTL
    External Flash Connection Hot Shoe
    AV Recording
    Video Recording Yes
    File Size 1920 x 1080p (Full HD)
    1280 x 720p (HD)
    640 x 424p (SD)
    Aspect Ratio 16:9
    Frame Rate @ 1920 x 1080: 60 fps, 50 fps, 30 fps, 25 fps, 24 fps
    @ 1280 x 720: 60 fps, 50 fps
    @ 640 x 424: 30 fps, 25 fps
    Exposure Control Auto
    Manual
    ISO Sensitivity 100 - 25600
    Focus Auto
    Manual
    Continuous Auto
    Video Clip Length 1920 x 1080
    @ 60 fps: 20 min.
    @ 30 fps: 29 min.
    Audio Recording Built-in Mic: With Video, Stereo
    Optional External Mic: With Video
    Performance
    Continuous Shooting Up to 5 fps
    Self Timer 2 seconds, 5 seconds, 10 seconds, 20 seconds
    Number of Shots: 1-9
    Interval Recording Yes
    Connectivity 1/8" Microphone, AV Output, HDMI C (Mini), USB 2.0
    Wi-Fi Capable Yes
    Power
    Battery 1x EN-EL14a Rechargeable Lithium-ion Battery Pack, 7.2 VDC, 1230 mAh
    AC Power Adapter EH-5b (Optional)
    Operating/Storage Temperature Operating
    32 to 104°F (0 to 40°C)
    Physical
    Dimensions (WxHxD) 4.9 x 3.8 x 2.8" / 124.0 x 97.0 x 70.0 mm
    Weight .92 lb / 420 g body only
    Kit Lens
    Focal Length 18 - 55mm
    Comparable 35mm Focal Length: 27 - 82.5 mm
    Aperture Maximum: f/3.5 - 5.6
    Minimum: f/22 - 36
    Angle of View 76°
    DX Picture Angle: 17° 50'
    Minimum Focus Distance .92' (28.04 cm)
    Magnification 0.31x
    Elements/Groups 11/8
    Diaphragm Blades 7
    Autofocus Yes
    Image Stabilization Yes
    Filter Thread Front:52 mm
    Dimensions (DxL) Approx. 2.34 x 2.60" (59.5 x 66.0 mm)
    Weight 6.88 oz (195 g)
    Packaging Info
    Package Weight 3.1 lb
    Box Dimensions (LxWxH) 8.661 x 6.457 x 5.276"
    Hands-On Review:Nikon D5500
    The user manual for the Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547 can be downloaded in .pdf format if it did not come with your new dslr cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Nikon users keep a unique electronic library for Nikon dslr camerass, where you can use our link to download the user manual for the Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547.

    The user manual lists all of the functions of the Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547, all the basic and advanced features and tells you how to use the dslr cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Nikon service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Nikon D5500 DSLR Camera with 18-55mm Lens (Red) 1547. User manuals are also available on the Nikon website under Photography - Digital Cameras - DSLR Cameras.
