User manual Nikon D7100 DSLR Camera with 18-55mm and 55-300mm Dual 13489

Operating instructions and pdf manual for use - Nikon D7100 DSLR Camera with 18-55mm and 55-300mm Dual 13489 User manual, User manual Nikon D7100 DSLR Camera with 18-55mm and 55-300mm Dual 13489, Nikon, D7100, DSLR, Camera, with, 18-55mm, 55-300mm,


User manual for Nikon D7100 DSLR Camera with 18-55mm and 55-300mm Dual 13489

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Nikon D7100 DSLR Camera with 18-55mm and 55-300mm Dual 13489
  • Manufacturer: Nikon
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - DSLR Cameras
  • Safety instructions
  • Startup and operation of the dslr cameras
  • Tips for setting up your Nikon
  • Settings and expert assistance
  • Contact Nikon service
  • Troubleshooting
  • Warranty information
Nikon D7100 DSLR Camera with 18-55mm and 55-300mm Dual 13489 Nikon D7100 DSLR Camera with 18-55mm and 55-300mm Dual 13489 Nikon D7100 DSLR Camera with 18-55mm and 55-300mm Dual 13489
Click to enlarge image

We recommend checking out our discussion threads on the Nikon D7100 DSLR Camera with 18-55mm and 55-300mm Dual 13489, which address similar problems with connecting and setting up DSLR Cameras Nikon.



User manual for the Nikon D7100 DSLR Camera with 18-55mm and 55-300mm Dual 13489

The user manual for the Nikon D7100 DSLR Camera with 18-55mm and 55-300mm Dual 13489 provides necessary instructions for the proper use of the product Photography - Digital Cameras - DSLR Cameras.

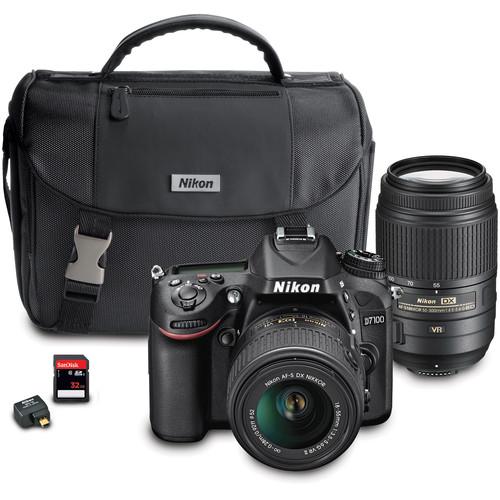

Bundling the versatile camera with a pair of lenses and a wireless adapter, the D7100 DSLR Camera with 18-55mm and 55-300mm Dual Lens Wi-Fi Kit from Nikon includes the DSLR body, standard zoom lens, telephoto zoom lens, a WU-1a Wireless Mobile adapter for transferring imagery to a linked mobile device, 32GB SDHC memory card, and a faux leather trim camera bag for protecting and carrying the entire kit.

The D7100 features a 24.1MP DX-format CMOS sensor and EXPEED 3 image processor to enable high-resolution shooting up to 6 fps, full HD 1080i/p video recording, and expandable sensitivity to ISO 25600. The traditional optical low-pass filter has been omitted from the camera's design for greater detail and overall image sharpness, which is further benefitted by the inclusion of an advanced 51-point AF system that includes 15 cross-type points for added precision and focusing speed. In addition to the pentaprism optical viewfinder, a large 3.2" 1,229k-dot LCD monitor is available for live view monitoring, image playback, and menu navigation. The dust- and moisture-resistant design of the D7100 features magnesium alloy top and rear covers for added durability as well as two SD card slots for shooting versatility.

The AF-S DX NIKKOR 18-55mm f/3.5-5.6G VR II is a standard zoom providing a 27-82.5mm equivalent focal length range. This lens incorporates a robust VR image stabilization system, which helps to minimize the appearance of camera shake by up to four shutter speed steps to benefit working in low-light conditions. A Super Integrated Coating reduces flare and ghosting to optimize image clarity, contrast, and color neutrality and a rounded seven-blade diaphragm works to create a pleasing out-of-focus quality in shallow depth of field images.

Also included in the kit is the longer-reaching AF-S DX NIKKOR 55-300mm f/4.5-5.6G ED VR lens, which is a tele-zoom offering an 82.5-450mm equivalent focal length range. This lens features a three stop-effective VR system to control camera shake, along with a Silent Wave Motor for fast, smooth AF performance. Its optical design incorporates one high refractive index element and two extra-low dispersion elements to reduce chromatic aberrations throughout the zoom range to produce sharp, clear, and color-accurate imagery.
If you own a Nikon dslr cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Nikon D7100 DSLR Camera with 18-55mm and 55-300mm Dual 13489 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Nikon D7100 DSLR Camera with 18-55mm and 55-300mm Dual 13489:
Specifications
  • D7100 DSLR Camera (Body Only)
    Imaging
    Lens Mount Nikon F
    Camera Format DX / (1.5x Crop Factor)
    Pixels Actual: 24.71 Megapixel
    Effective: 24.1 Megapixel
    Max Resolution 24.1 MP: 6000 x 4000
    Aspect Ratio 3:2, 16:9
    Sensor Type / Size CMOS, 23.5 x 15.6 mm
    File Formats Still Images: JPEG, RAW
    Movies: MOV, MPEG-4 AVC/H.264
    Audio: Linear PCM
    Bit Depth 14-bit
    Memory Card Type SD
    SDHC
    SDXC
    Image Stabilization None
    Focus Control
    Focus Type Auto & Manual
    Focus Mode Continuous-servo AF (C), Focus Lock AF Area Mode, Manual Focus (M), Single-servo AF (S)
    Autofocus Points 51
    Viewfinder/Display
    Viewfinder Type Pentaprism
    Viewfinder Eye Point 19.5 mm
    Viewfinder Coverage 100%
    Viewfinder Magnification Approx. 0.94x
    Diopter Adjustment - 2 to +1 m
    Display Screen 3.2" Rear Screen  Live Preview LCD (1,229,000)
    Screen Coverage 100%
    Diagonal Angle of View 170.0°
    Exposure Control
    ISO Sensitivity Auto, 100-6400 (Extended Mode: 12800-25600)
    Shutter Type: Electronic
    Speed: 30 - 1/8000 seconds
    Remote Control ML-L3 (Optional)
    Mirror Lock-Up Yes
    Metering Method 3D Color Matrix Metering, Center-weighted average metering, Spot metering
    Exposure Modes Modes: Aperture Priority, Auto, Bulb, Flash Off, Manual, Programmed Auto, Shutter Priority
    Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV steps)
    White Balance Modes Auto, Cloudy, Daylight, Flash, Fluorescent, Fluorescent (Day White), Fluorescent (Natural White), Fluorescent (White), Fluorescent H, Incandescent, Kelvin, Preset Manual, Shade
    Flash
    Flash Modes 1st Curtain Sync
    Auto
    Auto/Red-eye Reduction
    Fill-in
    Off
    Rear Curtain/Slow Sync
    Red-eye Reduction
    Second-curtain Sync
    Slow Sync
    Slow Sync/Red-eye Reduction
    Built-in Flash Yes
    Guide No. 39' (11.89 m) ISO100
    Max Sync Speed 1 / 250 seconds
    Flash Compensation -3 EV to +1 EV (in 1/3 or 1/2 EV steps)
    Dedicated Flash System iTTL Remote Firing
    External Flash Connection Hot Shoe
    AV Recording
    Video Recording Yes, NTSC/PAL
    File Size 1920 x 1080p (Full HD)
    1920 x 1080i (Full HD)
    1280 x 720p (HD)
    Frame Rate @ 1920 x 1080: 60 fps, 50 fps
    @ 1920 x 1080: 30 fps, 25 fps, 24 fps
    @ 1280 x 720: 60 fps, 50 fps
    Exposure Control Auto: Shutter Speed, Aperture, ISO
    Manual: Shutter Speed, Aperture, ISO
    ISO Sensitivity Auto, 100 - 6400, Expandable to 25600
    Exposure Compensation -5 EV to +5 EV (in 1/3 or 1/2 EV steps)
    Focus Auto
    Manual
    Continuous Auto
    Video Clip Length 1920 x 1080
    20 min.
    1280 x 720
    29.59 min.
    Audio Recording Optional External Mic: With Video, Stereo
    Performance
    Continuous Shooting Up to 6 fps
    Self Timer 2 seconds, 5 seconds, 10 seconds, 20 seconds
    Number of Shots: 1-9
    Interval Recording Yes
    Connectivity 1/8" Microphone
    HDMI C (Mini)
    USB 2.0
    Wi-Fi Capable Yes
    Power
    Battery 1x EN-EL15 Rechargeable Lithium-ion Battery Pack
    AC Power Adapter EH-5b (Optional)
    Operating/Storage Temperature Operating
    32 to 104°F (0 to 40°C)
    Humidity: 0 - 85%
    Physical
    Dimensions (WxHxD) 5.3 x 4.2 x 3.0" / 135.5 x 106.5 x 76.0 mm
    Weight 1.49 lb / 675 g camera body only
    Packaging Info
    Box Dimensions (LxWxH) 8.7 x 6.7 x 5.8"
  • AF-S DX NIKKOR 18-55mm f/3.5-5.6G VR II Lens
    Performance
    Focal Length 18 - 55mm
    Comparable 35mm Equivalent on DX Format Focal Length: 27 - 82.5 mm
    Aperture Maximum: f/3.5 - 5.6
    Minimum: f/22 - 36
    Camera Mount Type Nikon F
    Format Compatibility Nikon DX
    FX in DX Crop Mode
    Angle of View 76° - 28° 50'
    Minimum Focus Distance 9.84" (25 cm)
    Magnification 0.31x
    Elements/Groups 11/8
    Diaphragm Blades 7, Rounded
    Features
    Image Stabilization Yes
    Autofocus Yes
    Tripod Collar No
    Physical
    Filter Thread Front:52 mm
    Dimensions (DxL) Approx. 2.34 x 2.60" (59.5 x 66 mm)
    Weight 6.88 oz (195 g)
    Packaging Info
    Box Dimensions (LxWxH) 4.7 x 4.6 x 4.3"
  • AF-S DX NIKKOR 55-300mm f/4.5-5.6G ED VR Lens
    Performance
    Focal Length 55 - 300mm
    Comparable 35mm Equivalent on DX Format Focal Length: 82.5 - 450 mm
    Aperture Maximum: f/4.5 - 5.6
    Minimum: f/22
    Camera Mount Type Nikon F
    Format Compatibility Nikon DX
    FX in DX Crop Mode
    Angle of View 28° 50' - 5° 20'
    Minimum Focus Distance 4.6' (1.40 m)
    Magnification 0.28x
    Maximum Reproduction Ratio 1:4
    Elements/Groups 17/11
    Diaphragm Blades 9
    Features
    Image Stabilization Yes
    Autofocus Yes
    Tripod Collar No
    Physical
    Filter Thread Front:58 mm
    Dimensions (DxL) Approx. 3.0 x 4.8" (7.62 x 12.19 cm)
    Weight 18.7 oz (530 g)
    Packaging Info
    Box Dimensions (LxWxH) 9.5 x 5.0 x 5.0"
  • WU-1a Wireless Mobile Adapter
    Wireless
    Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
    Protocols Communications:
    IEEE 802.11b: DSSS/CCK
    IEEE 802.11g: OFDM
    IEEE 802.11n: Not Specified by Manufacturer

    Data Transfer: PTP, PTP-IP
    Operating Frequency 2412-2462 MHz (Channels 1-11)
    Range Direct line of sight: 33-49' (10-15 m)
    Data Rate 54 Mbps (According to IEEE standard)
    Security Authentication: Open system, WPA2-PSK
    Encryption: AES
    Setup Supports Wi-Fi Protected Setup (WPS)
    Media Access Protocol Infrastructure
    Physical / Electrical / Environmental
    LED On (green): Connected
    Flashes green once every 2.0 sec: Ready to connect
    Flashes green rapidly (rate varies with connection speed): Transmitting
    Slow green flash once every 5.0 sec: Adapter in sleep mode
    Flashes red once every 0.5 sec: Connection error
    Flashes orange: WPS button held for 10 sec--Restoring default settings
    Operating System Support Smartphones: Android 2.3 or later, iOS 6.0 or later
    Tablets: Android 3.0 or later, iOS 6.0 or later
    Power Consumption Maximum: 1.65 W
    Environmental Conditions Temperature: 32 to 104° F (0 to 40° C)
    Humidity: Less than 85% (no condensation)
    Dimensions 0.7 x 0.8 x 0.4" (1.8 x 2.1 x 1.0 cm)
    Weight 0.1 oz (3.0 g)
    Packaging Info
    Box Dimensions (LxWxH) 9.5 x 6.0 x 1.9"
The user manual for the Nikon D7100 DSLR Camera with 18-55mm and 55-300mm Dual 13489 can be downloaded in .pdf format if it did not come with your new dslr cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Nikon users keep a unique electronic library for Nikon dslr camerass, where you can use our link to download the user manual for the Nikon D7100 DSLR Camera with 18-55mm and 55-300mm Dual 13489.

The user manual lists all of the functions of the Nikon D7100 DSLR Camera with 18-55mm and 55-300mm Dual 13489, all the basic and advanced features and tells you how to use the dslr cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Nikon service.
