User manual for Nord Stage 2 EX Compact Keyboard NSTAGE2-EX-COMPACT
- Manufacturer: Nord
- Basic description and contents of package
- Product classification: Pro Audio - Musical Instruments - Stage Pianos & Organs
- Safety instructions
- Startup and operation of the stage pianos & organs
- Tips for setting up your Nord
- Settings and expert assistance
- Contact Nord service
- Troubleshooting
- Warranty information

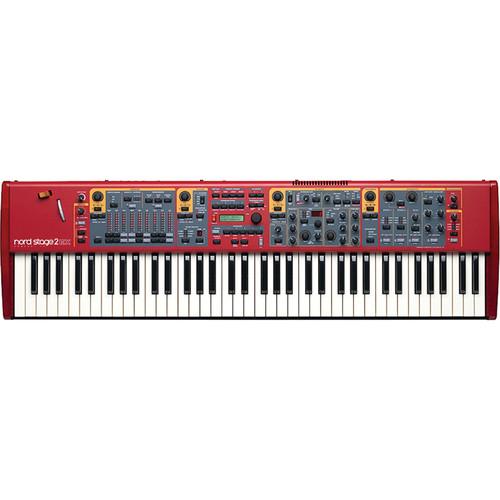

Click to enlarge image
|
We recommend checking out our discussion threads on the Nord Stage 2 EX Compact Keyboard NSTAGE2-EX-COMPACT,
which address similar problems with connecting and setting up Stage Pianos & Organs Nord.
|
User manual for the Nord Stage 2 EX Compact Keyboard NSTAGE2-EX-COMPACT
The user manual for the Nord Stage 2 EX Compact Keyboard NSTAGE2-EX-COMPACT provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Stage Pianos & Organs.
The Stage 2 EX Compact Keyboard from Nord is a professional piano, organ, and synthesizer instrument designed with a well-thought-out user interface, and a 73-key semi-weighted Waterfall keyboard. It can be used to play sounds in various environments for audio applications such as live stage, theater, recording studios, houses of worship, and more.
|
If you own a Nord stage pianos & organs and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Nord Stage 2 EX Compact Keyboard NSTAGE2-EX-COMPACT in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Nord Stage 2 EX Compact Keyboard NSTAGE2-EX-COMPACT:
| General | Master level control
Wooden pitch stick
Modulation wheel
400 programs - 4 banks with 20 pages each. Each page has 5 program locations
Program categories
Program Sort Modes: Numerical, alphabetical or by category
5 live buffers
2 individual slot setups
3 morph sources (modulation wheel, control pedal, aftertouch)
Global mono output
Programmable transpose +/- 6 semitones
Master clock functionality with manual, external and tap-tempo rate control
Internal and MIDI clock source
MIDI over USB functionality | | Organ Section | B3 Tone Wheel organ, Vox Continental and Farfisa models with full polyphony
9 digitally controlled drawbars
Percussion controls
Vibrato / chorus control
Two drawbar settings per program 2-part multitimbral (2 manuals) | | Piano Section | 1 GB memory for piano sounds
Acoustic grand pianos
Upright pianos
Electric pianos
Synth Pianos
Wurlitzer A200 electric piano
Clavinet D6
Harpsichords
Electric grand pianos includes CP-80 electric grand
40-60 voices polyphony
4 selectable velocity curves
Clavinet EQ controls
String resonance (Generation 2) on acoustic Grand Pianos and Uprights
Selectable piano release
Pedal Noise when used with Nord Triple Pedal (optional accessory) on selected acoustic and electric pianos
Slot Detune functionality
2-part multitimbral | | Synth Section | Sample Playback Synthesis: Approx. 380 Megabytes of sample memory, up to 999 Sample Instruments
Analog Synthesis: Multiple waveforms including dual saw, hard sync and PWM
FM Synthesis: 2 & 3 operator FM synthesis
Wavetables Synthesis: 62 waveforms
18 voices polyphony
Unison control - with no reduction in polyphony
Amplitude envelope
Modulation envelope
12/24 dB low pass, high pass, band pass and notch filter with resonance
LFO with 4 waveforms (square, triangle, ramp and sample & hold)
300 patch memory locations, 3 categories
Arpeggiator (Up, Down, Up-Down and Random), Range: 1, 2, 3 or 4 octaves
LFO and Arpeggiator synchronizable to Master Clock
2-part multitimbral | | Common Parameters | Level Control
Zone (split assignment) control | | Effects | Effect 1: Ring modulator, tremolo, pan, wah, autowah 1, autowah 2
Effect 2: Flanger, vibe, 2 phasers, and 2 choruses
Delay: With ping pong (stereo taps) and tap-tempo
3 types of speaker simulations: JC, twin and small
Tube amp simulation with adjustable overdrive
3-band equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz
Rotary Speaker: Selectable speed (stop, slow and fast) and separate overdrive
Effect rates/tempo can be synchronized to the master clock | | Master Effects | Compressor
Reverb - 5 algorithms | | Keyboard | Compact-Model: 73-key semi-weighted velocity-sensitive waterfall keyboard. Range: E-E
Aftertouch, supports 3 split zones with a visual LED indication | | Connections | 4 Assignable Audio Outputs: 1/4" (6.3 mm) jacks, unbalanced
Stereo Headphone Output: 1/4" (6.3 mm) stereo jack
1 Monitor Input: 1/8" (3.5 mm) stereo jack
Sustain Pedal: 1/4" (6.3 mm) jack uses a momentary pedal, like e.g. Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25, etc.
Sustain input compatible with Nord Triple Pedal (sold separately)
Rotor Pedal: 1/4" (6.3 mm) jack. Use a momentary pedal or a switch-type pedal
Organ Swell Pedal: 1/4" (6.3 mm) TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5, etc.
Control Pedal: 1/4" (6.3 mm) TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5, etc.
MIDI In: 5-pin DIN connectors
MIDI Out: 5-pin DIN connectors
USB: type B connector
Power Cord with IEC C14 connector | | Dimensions (L x H x W) | 42 x 4 x 12" (1070 x 104 x 302 mm) | | Weight | 21.4 lb (9.7 kg) | | Package Weight | 29.0 lb | | Box Dimensions (LxWxH) | 47.0 x 14.0 x 7.5" | |
The user manual for the Nord Stage 2 EX Compact Keyboard NSTAGE2-EX-COMPACT can be downloaded in .pdf
format if it did not come with your new stage pianos & organs, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Nord users keep a unique electronic library
for Nord stage pianos & organss,
where you can use our link to download the user manual for the Nord Stage 2 EX Compact Keyboard NSTAGE2-EX-COMPACT.
The user manual lists all of the functions of the Nord Stage 2 EX Compact Keyboard NSTAGE2-EX-COMPACT,
all the basic and advanced features and tells you how to use the stage pianos & organs.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Nord service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Nord Stage 2 EX Compact Keyboard NSTAGE2-EX-COMPACT. User manuals are also
available on the Nord website under Pro Audio - Musical Instruments - Stage Pianos & Organs.
