User manual for the NUUO CT-8000RP Crystal 2U Rack-Mountable CT-8000RP-US-12T-2

The user manual for the NUUO CT-8000RP Crystal 2U Rack-Mountable CT-8000RP-US-12T-2 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Network Video Recorders (NVRs).

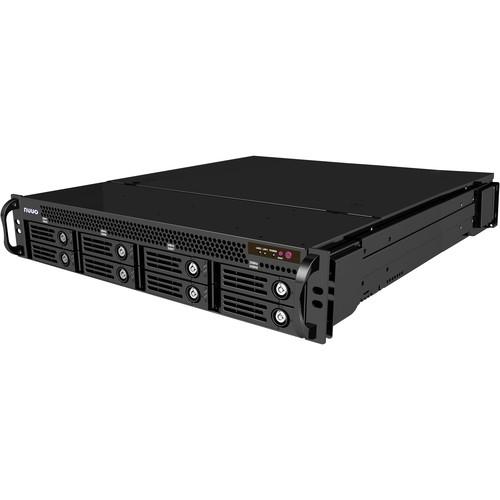

The 12TB CT-8000RP Crystal 2U Rack-Mountable 8-Bay Network Video Recorder from NUUO is a Linux embedded recording solution that supports H.264 encoding for up to 64 channels with a throughput of 250 Mb/s. Featuring a modular system structure that is made to handle large project sizes, NUUO Crystal is the suitable choice for enterprise solutions. The benefits of a modular system design are that not only can it be managed centrally, down on a process level, but also every module can also work independently of each other module. So when a process fails, only that process module shuts down and the rest of the system will continue to function normally, further enhancing the system stability.

NUUO Crystal features recording failover function to safeguard server uptime and performance consistency. The failover function can be assigned and managed as a cluster, so that N+M redundancy can be achieved. The NVR supports internal redundant power supplies. This ensures seamless operation even when the primary power supply has failed. Failed power supplies can be replaced while system is still operating.

The NVR features support for unlimited numbers of cameras, 3rd party access control systems, POS, and I/O devices. Any number of users and user groups may be assigned for different levels of management rights, monitoring points, and event processing. Combined with the intuitive NuClient software to provide centralized live view and playback video stream, NUUO Crystal provides the user with total control over the entire system at their fingertips.

Utilizing a custom recording technology known as File Ring, NUUO Crystal is able to handle high megapixel recordings. The NVR is able to maintain data throughput up to 250 Mb/s for a single volume, 400 Mb/s for 2 volumes, and 500 Mb/s for 3 volumes. NUUO Crystal supports an unlimited number of video wall displays up to 100 channels per monitor. With a built-in View Wizard, changing view configuration is as easy as dragging and dropping different view grids. NUUO Crystal also features Image Fusion to stitch multiple views into one single picture. Combined with PTZ joystick control, Fisheye Dewarp algorithm, and video tour modes, reviewing and monitoring are simplified.
If you own a NUUO network video recorders (nvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the NUUO CT-8000RP Crystal 2U Rack-Mountable CT-8000RP-US-12T-2 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the NUUO CT-8000RP Crystal 2U Rack-Mountable CT-8000RP-US-12T-2:
Specifications
    PC Requirements
    Operating System Windows XP (32-bit)/Windows 7 (32/64-bit)/Windows 8(32/64-bit), Mac OSX (v10.6/10.7/10.8)

    It is suggested to use 64-bit system for best system performance.

    CPU Intel Core 2 Duo, 2.6 GHz
    Display Card nVidia or ATI with 1 GB memory (OpenGL 2.0 and later)
    RAM 2 GB
    LAN Transmission Speed: 10/100/1000 Mb/s (RJ45)
    User Interface Application: NuClient, NuMatrix(available in Ultimate)
    Web Browser: Internet Explorer 8, 9, 10, 11, Firefox 23 and above (Windows version)
    iViewer for NUUO iPhone, iPad, Android mobile live viewer

    It is suggested to use a 64-bit system for best system performance.

    Hardware
    Type Rack-mount 2U with redundant power
    CPU Intel Core i5
    HDD Trays Removable: 8 x SATA II
    Storage Capacity 12 TB, 2 x 6 TB
    Storage 4 TB per drive (maximum 8 drives)
    RAID 0, 1, 5, 10
    External Storage DAS, iSCSI
    External Ports 2 x USB 3.0
    2 x USB 2.0
    1 x eSATA (for DAS)
    Ethernet 2 x Gigabits ports, RJ45
    LAN Transmission Speed: 10/100/1000 Mb/s
    Voltage 100 to 240 V
    Power Consumption Full Loading: 160 W
    Maximum: 500 W (redundant power)
    Operating Temperature 32 to 104°F (0 to 40°C)
    Operating Humidity 5 to 95%
    Dimensions (H x W x D) 3.4 x 17.5 x 22.9" (88.0 x 447.0 x 583.0 mm)
    Weight 29.1 lb (13.1 kg) without HDD
    Software
    Server Operating System Linux
    Client Operating System Windows XP (32-bit) / Windows 7 (32 and 64-bit)/ Windows 8 (32 and 64-bit)/ Windows 8.1 (32 and 64-bit)
    Mac OS X v10.6, 10.7, v10.8
    License Type Enterprise / Ultimate / Metadata channel

    Licenses are available separately

    Number of Cameras 64-channel per recording server
    Maximum Streams 256 per recording server
    Number of Cameras 400 per NuClient
    ONVIF 2.0 Profile S
    Video Compression H.264, MPEG4, MJPEG, MxPEG
    Multi-Streaming Supported
    Recording Performance 250 Mb/s (1 Volume Group)
    400 Mb/s (2 Volume Group)
    550 Mb/s (3 Volume Group)
    Third Party Software Supports POS, access control
    Function Live view and playback line by line with video
    Metadata Search
    Export AVI, ASF, MOV
    Live View 16-channel per view
    Supports view tour to 64-channel
    Recording type Continuous record, trigger record by digital input, motion-triggered record, event-triggered record, boosting record, record by schedule, and manual trigger record on NuClient
    Event pre- and post-recording
    NTP (Network Time Protocol) Yes
    Control Joystick support
    Supported IP Cameras ACTi, ADT, Airlive, Alarm.com, Alphatech, American Dynamics, AMTK, Arecont, ARM, ATV, Asoni, AXIS, Aver, BASLER, Bolide, BOSCH, Brickcom, Bullwark, Centrix, CISCO, CNB, COP, CORUM, Dahua, Digital Watchdog, D-Link, DlinkCN, DYNACOLOR, Eneo, Ernitec, Etrovision, Everfocus, FINE, Forenix, GE, Grandstream, Grundig, Guardeon, Guardliner, HIKVISION, Histream, Honeywell, i-Mege, InscapeData, IQinvision, Jetstor, JVC, LevelOne, LG, Lilin, Linksys, Lumenera, MegaIP, Messoa, MOBOTIX, Milesight, NetworkCamera, NTIC, On Electronics, Onvif, Panasonic, Pelco, PiXORD, PLANET, Probe, Rover, Saerim, Samsung, SANTEC, SANYO, Shany, Sony, StarDot, Sunell, Techson, Telview, Tiandy, TOSHIBA, TRUEN, UDP, Videosec, Vision Hi-Tech, Vista, Vitek, VIVOTEK, Wavekrom, Yudor, Zavio, 3S vision, 3M
    Supported Languages 15 languages
    Czech, Chinese (Simplified), Chinese(Traditional), English, Finnish, French, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Spanish, Swedish, Thai, Turkish
    The user manual for the NUUO CT-8000RP Crystal 2U Rack-Mountable CT-8000RP-US-12T-2 can be downloaded in .pdf format if it did not come with your new network video recorders (nvrs), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other NUUO users keep a unique electronic library for NUUO network video recorders (nvrs)s, where you can use our link to download the user manual for the NUUO CT-8000RP Crystal 2U Rack-Mountable CT-8000RP-US-12T-2.

    The user manual lists all of the functions of the NUUO CT-8000RP Crystal 2U Rack-Mountable CT-8000RP-US-12T-2, all the basic and advanced features and tells you how to use the network video recorders (nvrs). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from NUUO service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the NUUO CT-8000RP Crystal 2U Rack-Mountable CT-8000RP-US-12T-2. User manuals are also available on the NUUO website under Surveillance - Surveillance Video - Network Video Recorders (NVRs).
