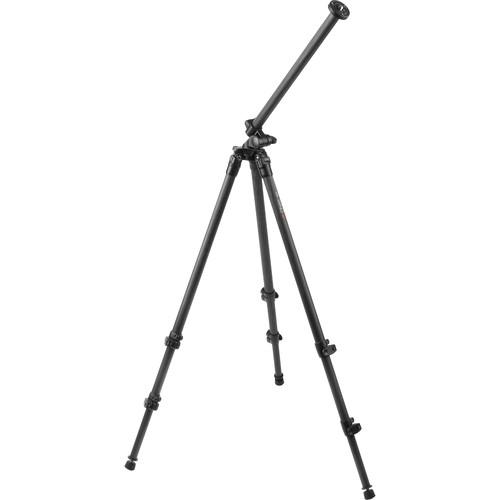

This kit from B&H includes the Oben CC-2361L Carbon Fiber Lateral Tripod and BE-126T Ball Head. The tripod is a sturdy support for any DSLR or point-and-shoot camera. With a load capacity of 17 lb and a maximum height of 69.2", including the head, the lateral tripod features a tilting, swiveling center column that enables flexible positioning for macro photography and other uses.

Engaging the lateral adjustment lever frees the tilting of the center column once it's been extended past the chassis, which becomes possible by pressing the button at the column's bottom to disengage the safety bolt. Once extended, the column can tilt from its original 0°, straight-up-and-down orientation, to a 180° upside-down orientation - with possible stops everywhere in between, including a 90° lateral position. Twisting a knob on the chassis locks and unlocks the 360° swiveling of the center column and its upper collar.

The tripod's flip locks, which enable the extension and securing of the leg stages, are user-adjustable. By using a supplied hex key, the user can tighten each flip lock to safeguard their continued reliable performance.

When it's not being used in its lateral mode, the CC-2361L's rapid center column functions like any professional tripod, extending after a twist of the knob on the upper collar. The tripod's center column can also be removed from both the chassis and the upper collar so that it can be reversed. For protecting your camera when the column is retracted quickly, there's a rubber damper under the center-post collar. Steel locking screws underneath the center-post collar enable you to fasten a camera head more securely.

Push/pull tabs allow you to set the positions of the three legs independently at three different angles. This allows you to shoot from low angles or on uneven terrain. For stability on softer terrain, the CC-2361L features metal spikes that retract and emerge by twisting the foot's rubber portion.

The included BC-126 is a durable aluminum ball head that features an Arca-type compatible quick-release system. It has a large locking knob with a tension control screw to give you maximum control of the ball, and a separate knob for the 360° panning movement.

Its multiple knobs help make taking panoramic photos simple by allowing you to pan a specific number of degrees while keeping the head's tilt position locked. In fact, the BC-126 features degree markings around its circumference to aid in that task. A notch in the ball head allows you to quickly change between portrait and landscape orientation.

The included quick-release plate attaches to your camera via its standard 1/4"-20 screw, and is secured in place with an Arca-type clamp. A locking knob controls the opening and closing of the aluminum clamp simply and reliably. Two safety screws on the bottom of the plate help prevent your camera from accidentally being released when adjusting the plate fore and aft. One bubble level on the clamp, and another on the locking knob, help ensure that your camera will be level with the horizon.
If you own a Oben tripods with heads and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Oben CC-2361L Carbon Fiber Lateral Tripod CC-2361L/BC-126 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Oben CC-2361L Carbon Fiber Lateral Tripod CC-2361L/BC-126:
Specifications
    • Oben CC-2361L 3-Section Carbon Fiber Lateral Tripod Legs
      General
      Load Capacity 17.6 lb (8 kg)
      Maximum Height 65.3" (165.9 cm)
      Maximum Height w/o Column Extended 53.0" (134.6 cm)
      Minimum Height 6.3" (16.0 cm)
      Folded Length 25.4" (64.5 cm)
      Weight 3.15 lb (1.43 kg)
      Head Attachment Fitting 1/4"-20 & 3/8"-16 (reversible screw)
      Legs
      Material Carbon Fiber
      Leg Stages/Sections 2/3
      Leg Lock Type Flip-lock
      Independent Leg Spread Yes
      Spiked/Retractable Feet Yes
      Leg Tube Diameters 0.98" (25 mm)
      Center Brace No
      Center Column
      Center Column Type Rapid
      Center Column Sections 1
      Bubble Level Yes
      Packaging Info
      Box Dimensions (LxWxH) 33.0 x 5.0 x 5.0"
    • Oben BC-126 Ball Head
      Load Capacity 26.4 lb (12.0 kg)
      Ball Sphere Diameter 38 mm
      Quick Release Yes, Arca-type
      Bubble Level 2 x bull's eye
      Tension Control Yes
      Separate Panning Lock Yes
      Tripod Mount Thread Size Female, 3/8"-16
      Height 3.9" (9.9 cm)
      Base Diameter 2" (5 cm)
      Weight 1.0 lb (0.5 kg)
      Packaging Info
      Box Dimensions (LxWxH) 5.0 x 4.2 x 3.3"
    • Oben TS-110 Deluxe Tripod Strap with Swivel Clip
      Material Strap: Nylon
      Shoulder Pad: Neoprene
      Attachment Method Swivel Clip attaches to tripod hook
      Quick-release connector wraps around tripod leg
      Dimensions Adjustable: 34.0 to 40.0" (0.8 to 1.0 m)
      Shoulder Pad: 17.5 x 3.25" (44.5 x 8.3 cm)
      Packaging Info
      Box Dimensions (LxWxH) 17.4 x 3.8 x 1.6"
    • Oben 3/8"-16 to 1/4"-20 Reducer Bushing
      Packaging Info
      Box Dimensions (LxWxH) 0.1 x 0.1 x 0.1"
    • Oben Tripod Hanger (1/4"-20)
      Packaging Info
      Box Dimensions (LxWxH) 3.5 x 3.0 x 0.5"
