User manual for the Oben MFR4-5 Macro Focusing Rail MFR4-5
The user manual for the Oben MFR4-5 Macro Focusing Rail MFR4-5 provides
necessary instructions for the proper use of the product Photography - Lens Accessories - Other Macro Accessories.

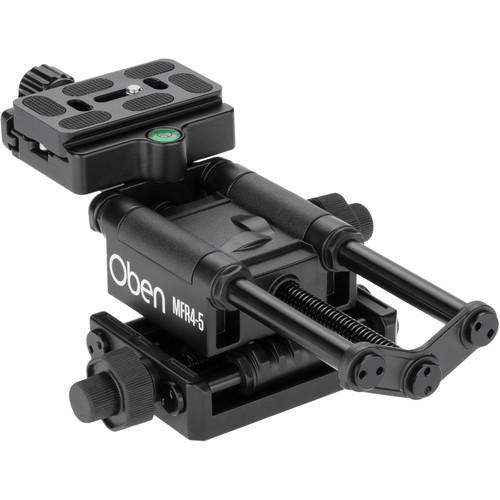

The MFR4-5 Macro Focusing Rail from Oben is a lightweight macro stage designed for precise 4-way camera alignment. Its ability to make small incremental adjustments is ideal for close-up work, tilt-shift or macro-photography.
The MFR4-5 provides 2.75" of maximum front to back movement and 1.25" of maximum left to right movement controlled by dual-level adjustment knobs. The two angles of movement are controlled by independent top and bottom rails which may be separated using the included Allen key. This allows the top rail to be used alone as a front-to-back macro rail.
The rail is also equipped with an integrated Arca-type compatible quick release clamp and an included Arca-type plate. The plate uses a 1/4"-20 screw mount compatible with most cameras. The rail can also be mounted on most tripods by utilizing the built-in 1/4"-20 and 3/8"-16 tripod mounting threads. A durable aluminum construction provides smooth operation for extended use and keeps the unit lightweight at only 1.3 lb.
|
If you own a Oben other macro accessories and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Oben MFR4-5 Macro Focusing Rail MFR4-5 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Oben MFR4-5 Macro Focusing Rail MFR4-5:
| Material of Construction | Aluminum | | Tripod Mount Thread Size | 3/8"-16, 1/4"-20 | | Range of Movement | Front to Back: 2.75" (7 cm)
Left to Right: 1.25" (3.2 cm) | | Quick Release | Arca-type compatible | | Dimensions | 3 x 4.75 x 9" (7.6 x 12 x 22.8 cm) | | Weight | 1.3 lb (0.59 kg) | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.2 x 5.8 x 3.2" | |
