User manual for Olympus OM-D E-M10 Mark II Mirrorless Micro Four V207052SU000
Overall Rating: 5.0
100% of respondents would recommend this to a friend.
- Manufacturer: Olympus
- Basic description and contents of package
- Product classification: Photography - Digital Cameras - Mirrorless System Cameras
- Safety instructions
- Startup and operation of the mirrorless system cameras
- Tips for setting up your Olympus
- Settings and expert assistance
- Contact Olympus service
- Troubleshooting
- Warranty information
- Price: 799 USD
Click to enlarge image
|
We recommend checking out our discussion threads on the Olympus OM-D E-M10 Mark II Mirrorless Micro Four V207052SU000,
which address similar problems with connecting and setting up Mirrorless System Cameras Olympus.
|
User manual for the Olympus OM-D E-M10 Mark II Mirrorless Micro Four V207052SU000
The user manual for the Olympus OM-D E-M10 Mark II Mirrorless Micro Four V207052SU000 provides
necessary instructions for the proper use of the product Photography - Digital Cameras - Mirrorless System Cameras.

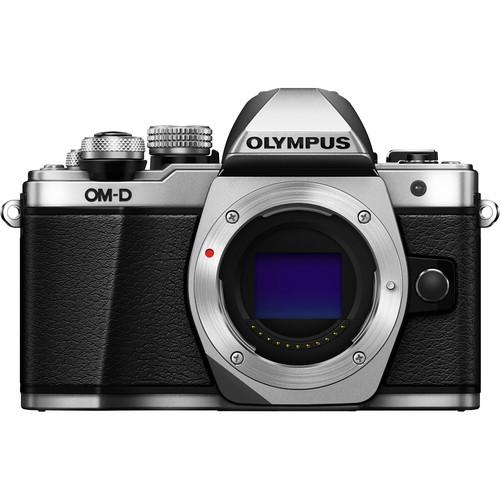

Sporting a classic design and sleek form factor, the silver OM-D E-M10 Mark II from Olympus is a mirrorless Micro Four Thirds digital camera featuring refined stills and movie recording capabilities to suit working in a variety of day-to-day environments. A high-resolution 16.1MP 4/3 Live MOS sensor pairs with the TruePic VII image processor to facilitate up to 8.5 fps shooting and full HD 1080p/60 movie recording, with a top sensitivity of ISO 25600. In-camera 5-axis image stabilization compensates for up to 4 stops of camera shake to benefit working in difficult lighting conditions and a FAST AF system employs 81 contrast-detection areas for quick, accurate performance with dedicated subject tracking modes. The retro-themed body incorporates a range of assignable function buttons and dials, as well as a 2.36m-dot OLED electronic viewfinder and 3.0" 1.04m-dot tilting touchscreen LCD for clear image monitoring and playback. Besides the handsome appeal of the E-M10 Mark II's design, its main assets lie in its versatility of shooting functions and performance to benefit photographers and videographers alike.
Benefited by the range of imaging capabilities, the E-M10 Mark II also incorporates a variety of shooting modes to suit working in various situations. A Silent Mode utilizes an electronic shutter for perfectly quiet picture-taking, with shutter speeds up to 1/16,000 sec. available. Live Bulb and Live Time modes are well-suited to creative long exposure photography and a dedicated Live Composite mode lets you watch a long exposure gradually build up during the course of the shot. Built-in Wi-Fi allows you to pair the camera with your smartphone or tablet for wireless sharing and remote camera control, and an interval shooting mode can be used to produce in-camera 4K time lapse movies.

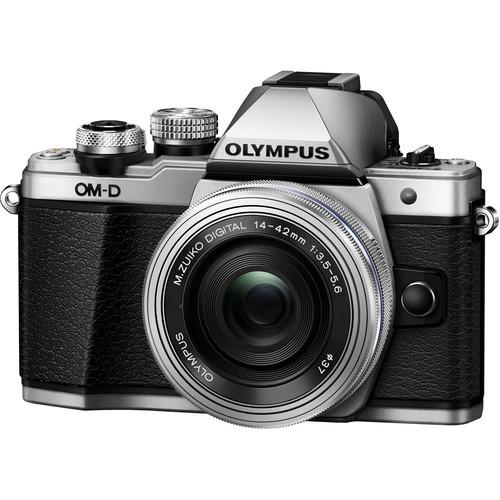

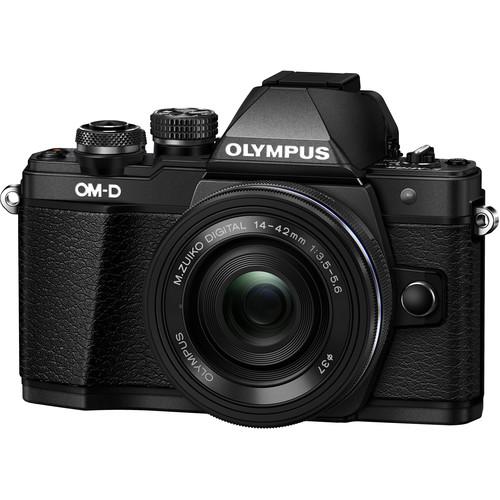

Included with the camera is the versatile M.ZUIKO Digital ED 14-42mm f/3.5-5.6 EZ, which covers a wide-angle to portrait-length 28-84mm equivalent focal length range. A series of aspherical, ED, and high refractive index elements work to control aberrations and distortions for notable image sharpness and clarity, and the lens' sleek 0.9"-thick profile is well-matched to the compact form factor of the E-M10 Mark II.
|
If you own a Olympus mirrorless system cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Olympus OM-D E-M10 Mark II Mirrorless Micro Four V207052SU000 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Olympus OM-D E-M10 Mark II Mirrorless Micro Four V207052SU000:
| Lens Mount | Micro Four Thirds | | Camera Format | Micro Four Thirds (2x Crop Factor) | | Pixels | Actual: 17.2 Megapixel
Effective: 16.1 Megapixel | | Max Resolution | 4608 x 3456 | | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 | | Sensor Type / Size | MOS, 17.3 x 13 mm | | File Formats | Still Images: JPEG, MPO, RAW
Movies: AVI, MOV, MPEG-4 AVC/H.264
Audio: Linear PCM (Stereo) | | Bit Depth | 12-bit | | Dust Reduction System | Yes | | Memory Card Type | SDHC
SDXC | | Image Stabilization | Sensor-Shift, 5-Way | | Video Recording | Yes, NTSC/PAL | | Video Format | High Definition
MOV
1920 x 1080p / 29.97 fps (77 Mbps)
1920 x 1080p / 25 fps (77 Mbps)
1920 x 1080p / 23.98 fps (77 Mbps)
High Definition
MOV
1920 x 1080p / 29.97 fps (52 Mbps)
1920 x 1080p / 25 fps (52 Mbps)
1920 x 1080p / 23.98 fps (52 Mbps)
High Definition
MOV
1920 x 1080p / 29.97 fps (30 Mbps)
1920 x 1080p / 25 fps (30 Mbps)
1920 x 1080p / 23.98 fps (30 Mbps)
High Definition
MOV
1920 x 1080p / 29.97 fps (18 Mbps)
1920 x 1080p / 25 fps (18 Mbps)
1920 x 1080p / 23.98 fps (18 Mbps)
High Definition
MOV
1920 x 1080p / 59.94 fps (52 Mbps)
1920 x 1080p / 50 fps (52 Mbps)
High Definition
MOV
1920 x 1080p / 59.94 fps (30 Mbps)
1920 x 1080p / 50 fps (30 Mbps)
High Definition
MOV
1920 x 1080p / 59.94 fps (18 Mbps)
1920 x 1080p / 50 fps (18 Mbps)
High Definition
MOV
1280 x 720p / 59.94 fps
1280 x 720p / 50 fps
High Definition
MOV
1280 x 720p / 29.97 fps
1280 x 720p / 25 fps
1280 x 720p / 23.98 fps
High Definition
AVI
1280 x 720p / 30 fps
Standard Definition
AVI
640 x 480p / 120 fps
640 x 480p / 30 fps | | Aspect Ratio | 4:3, 16:9 | | Video Clip Length | Up to 29 Min | | Audio Recording | Built-in Mic: With Video, Stereo | | Focus Type | Auto & Manual | | Focus Mode | Continuous-servo AF (C), Manual Focus (M), Single-servo AF (S) | | Autofocus Points | Contrast Detection: 81 | | Viewfinder Type | Electronic | | Viewfinder Pixel Count | 2,360,000 | | Viewfinder Eye Point | 19.2 mm | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 1.08x | | Diopter Adjustment | - 4 to +2 m | | Display Screen | 3" Rear Touchscreen Tilting LCD (1,040,000) | | ISO Sensitivity | Auto, 200-25600 (Extended Mode: Auto, 100-25600) | | Shutter | Type: Electronic & Mechanical
Speed: 60 - 1/4000 second
Type: Electronic & Mechanical
Speed: .5 - 1 minute in Bulb Mode
Type: Electronic
Speed: 60 - 1/16000 second | | Remote Control | RM-UC1 (Optional) | | Metering Method | Center-weighted average metering, Multi-zone metering, Spot metering, Highlight Weighted | | Exposure Modes | Modes: Aperture Priority, Art Filter, Bulb, Intelligent Auto, Manual, Program Shift, Programmed Auto, Scene Selection, Shutter Priority, Time, Underwater
Metering Range: EV -2.0 - EV 20.0
Compensation: -5 EV to +5 EV (in 1/3, 1/2 or 1 EV steps) | | White Balance Modes | Auto, Custom | | Burst Rate | Up to 8.5 fps at 16.1 MP for up to 36 frames
Up to 4 fps at 16.1 MP | | Flash Modes | Auto
Fill-in
Manual
Off
Red-eye Reduction
Second-curtain Sync
Slow Sync
Slow Sync/Red-eye Reduction | | Built-in Flash | Yes | | Guide No. | 19.03' (5.8 m) ISO100 | | Max Sync Speed | 1 / 250 seconds | | Flash Compensation | -3 EV to +3 EV (in 1/3, 1/2 or 1 EV steps) | | Dedicated Flash System | TTL Remote Firing Groups: 4 Channels: 4 | | External Flash Connection | Hot Shoe | | Continuous Shooting | Up to 8.5 fps | | Self Timer | 12 seconds, 2 seconds
Custom: 1-30 seconds at 0.5, 1.0, 2.0, 3.0 second intervals
Number of Shots: 1-10 | | Interval Recording | Yes | | Connectivity | HDMI D (Micro), USB 2.0 | | Wi-Fi Capable | Yes | | Battery | 1x BLS-50 Rechargeable Lithium-ion Battery Pack, 7.2 VDC, 1175 mAh | | Operating/Storage Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 30 - 90% | | Dimensions (WxHxD) | 4.7 x 3.3 x 1.8" / 119.5 x 83.1 x 46.7 mm | | Weight | 13.76 oz / 390 g with battery and memory card | | Focal Length | 14 - 42mm
Comparable 35mm Focal Length: 28 - 84 mm | | Aperture | Maximum: f/3.5 - 5.6
Minimum: f/22 | | Angle of View | 79° - 29° | | Minimum Focus Distance | 7.9" (20.07 cm) | | Magnification | 0.23x | | Elements/Groups | 8/7 | | Diaphragm Blades | 5, Rounded | | Autofocus | Yes | | Filter Thread | Front: 37 mm | | Dimensions (DxL) | Approx. 2.4 x 0.9" (60.96 x 22.86 mm) | | Weight | 3.2 oz (91 g) | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 9.4 x 9.1 x 3.9" | |
The user manual for the Olympus OM-D E-M10 Mark II Mirrorless Micro Four V207052SU000 can be downloaded in .pdf
format if it did not come with your new mirrorless system cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Olympus users keep a unique electronic library
for Olympus mirrorless system camerass,
where you can use our link to download the user manual for the Olympus OM-D E-M10 Mark II Mirrorless Micro Four V207052SU000.
The user manual lists all of the functions of the Olympus OM-D E-M10 Mark II Mirrorless Micro Four V207052SU000,
all the basic and advanced features and tells you how to use the mirrorless system cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Olympus service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Olympus OM-D E-M10 Mark II Mirrorless Micro Four V207052SU000. User manuals are also
available on the Olympus website under Photography - Digital Cameras - Mirrorless System Cameras.
