User manual Onkyo A-9050 Integrated Stereo Amplifier A-9050

Operating instructions and pdf manual for use - Onkyo A-9050 Integrated Stereo Amplifier A-9050 User manual, User manual Onkyo A-9050 Integrated Stereo Amplifier A-9050, Onkyo, A-9050, Integrated, Stereo, Amplifier, A-9050, Video


User manual for Onkyo A-9050 Integrated Stereo Amplifier A-9050

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

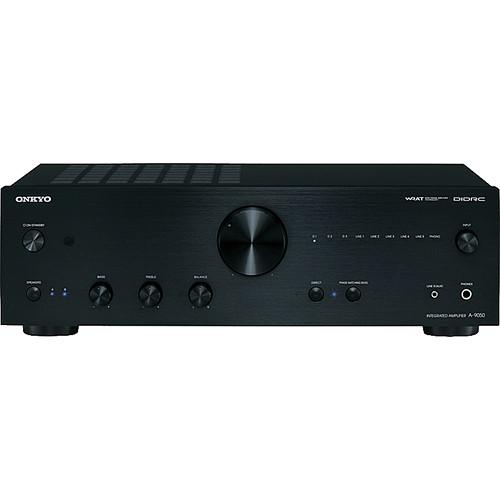

Onkyo  A-9050 Integrated Stereo Amplifier A-9050
  • Manufacturer: Onkyo
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Receivers & Amplifiers - Amplifiers
  • Safety instructions
  • Startup and operation of the amplifiers
  • Tips for setting up your Onkyo
  • Settings and expert assistance
  • Contact Onkyo service
  • Troubleshooting
  • Warranty information
  • Price: 449 USD
We recommend checking out our discussion threads on the Onkyo A-9050 Integrated Stereo Amplifier A-9050, which address similar problems with connecting and setting up Amplifiers Onkyo.



User manual for the Onkyo A-9050 Integrated Stereo Amplifier A-9050

The user manual for the Onkyo A-9050 Integrated Stereo Amplifier A-9050 provides necessary instructions for the proper use of the product TVs & Entertainment - Receivers & Amplifiers - Amplifiers.

The Onkyo A-9050 Integrated Stereo Amplifier provides classic analog power and modern digital audio processing technology. The two-channel amplifier supports 75W power output per channel for 150W total. It features one digital optical input and two digital coaxial inputs linked to a Wolfson 192 kHz / 24-bit DAC, which allows you to enjoy true lossless audio formats including WAV.
If you own a Onkyo amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Onkyo A-9050 Integrated Stereo Amplifier A-9050 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Onkyo  A-9050 Integrated Stereo Amplifier A-9050Download user manual for Onkyo A-9050 Integrated Stereo Amplifier A-9050
(PDF file, 2.45 MB)
Additional parameters of the Onkyo A-9050 Integrated Stereo Amplifier A-9050:
Specifications
    Amplifier
    Power Output 75W + 75W (8 ohms, 20 Hz - 20 kHz, 0.05%, 2-channels driven, FTC)
    THD & Noise 0.08% (half-power)
    Damping Factor 60 (1 kHz, 8 ohms)
    Audio Inputs Digital Optical x 1
    Digital Coaxial x 2
    Analog Stereo RCA (line) x 5
    Phono RCA x 1
    Audio Outputs Analog Stereo RCA (line) x 1
    Analog Stereo RCA (pre-out) x 1
    Subwoofer (pre-out) x 1
    Headphones (6.3 mm) x 1
    Speaker Outputs: SP-A, B
    Input Sensitivity Line: 175 mV
    Phono MM: 4.8 mV
    Input Impedance Line: 33 kohms
    Phono MM: 47 kohms
    Output Level Rec Out: 175 mV
    Output Impedance Rec Out: 2.2 kohms
    Phono Overload 100 mV (MM, 1 kHz, 0.5%)
    Frequency Response 10 Hz - 100 kHz (+1 dB / -3 dB) line 1
    Tone Control Bass: ±14 dB (100 Hz)
    Treble: ±14 dB (10 kHz)
    PM Bass: +8 dB (80 Hz)
    Signal to Noise Ratio 107 dB (line, IHF-A)
    Speaker Impedance 4 - 16 ohms (A or B)
    8 - 16 ohms (A + B)
    General
    Power Supply AC 120V (60 Hz)
    Power Consumption 160W
    Standby Power Consumption 0.2W
    Dimensions (WxHxD) 17.1 x 5.5 x 13" (435 x 139 x 330.3 mm)
    Weight 23.1 lb (10.5 kg)
    Packaging Info
    Package Weight 22.7 lb
    Box Dimensions (LxWxH) 22.0 x 16.5 x 10.0"
    The user manual for the Onkyo A-9050 Integrated Stereo Amplifier A-9050 can be downloaded in .pdf format if it did not come with your new amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Onkyo users keep a unique electronic library for Onkyo amplifierss, where you can use our link to download the user manual for the Onkyo A-9050 Integrated Stereo Amplifier A-9050.

    The user manual lists all of the functions of the Onkyo A-9050 Integrated Stereo Amplifier A-9050, all the basic and advanced features and tells you how to use the amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Onkyo service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Onkyo A-9050 Integrated Stereo Amplifier A-9050. User manuals are also available on the Onkyo website under TVs & Entertainment - Receivers & Amplifiers - Amplifiers.
