User manual Onkyo HT-S5800 5.1.2-Channel Home Theater System HT-S5800

Operating instructions and pdf manual for use - Onkyo HT-S5800 5.1.2-Channel Home Theater System HT-S5800 User manual, User manual Onkyo HT-S5800 5.1.2-Channel Home Theater System HT-S5800, Onkyo, HT-S5800, 5.1.2-Channel, Home, Theater, System, HT-

User manual for Onkyo HT-S5800 5.1.2-Channel Home Theater System HT-S5800

Overall rating 1.0
Overall Rating: 1.0

20% of respondents would recommend this to a friend.
Onkyo HT-S5800 5.1.2-Channel Home Theater System HT-S5800
  • Manufacturer: Onkyo
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Speakers - Home Theater in a Box
  • Safety instructions
  • Startup and operation of the home theater in a box
  • Tips for setting up your Onkyo
  • Settings and expert assistance
  • Contact Onkyo service
  • Troubleshooting
  • Warranty information
  • Price: 699 USD
We recommend checking out our discussion threads on the Onkyo HT-S5800 5.1.2-Channel Home Theater System HT-S5800, which address similar problems with connecting and setting up Home Theater in a Box Onkyo.


User manual for the Onkyo HT-S5800 5.1.2-Channel Home Theater System HT-S5800

The user manual for the Onkyo HT-S5800 5.1.2-Channel Home Theater System HT-S5800 provides necessary instructions for the proper use of the product TVs & Entertainment - Speakers - Home Theater in a Box.

Enjoy an immersive surround sound experience with the Onkyo HT-S5800 5.1.2-Channel Home Theater System. This system incorporates Onkyo AccuEQ room calibration, which automatically configures sound parameters for optimized sound using the included setup microphone. The bundled AV receiver features Onkyo's WRAT amplifier technology and delivers up to 65W per channel at 8 ohms and up to 115W at 6 ohms for robust audio playback. Built-in Bluetooth 2.1 connectivity allows you to wirelessly stream music from compatible audio sources, such as computers, MP3 players, smartphones, and tablets.

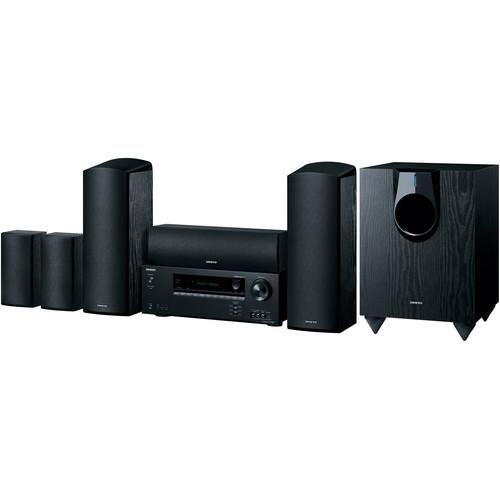

The included speaker package contains dual front/height speakers, a center speaker, dual surround speakers, and a 10" 120W down-firing subwoofer. The front speakers feature a hybrid design that incorporates up-firing height channels. Dolby Atmos utilizes height speaker channels to replicate overhead sound effects, delivering an immersive home entertainment audio experience.

This system's home theater receiver has four HDMI inputs for interfacing audio and video sources, and the pass-through of 3D and 4K video sources. You can connect this receiver to your external display thanks to its HDMI output with Audio Return Channel (ARC) support. Built-in high-resolution audio support allows you to take advantage of dynamic surround sound formats like DTS-HD Master Audio and Dolby TrueHD.
If you own a Onkyo home theater in a box and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Onkyo HT-S5800 5.1.2-Channel Home Theater System HT-S5800 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Onkyo HT-S5800 5.1.2-Channel Home Theater System HT-S5800:
Specifications
Receiver
Channels Up to 7.1
Power Output All Channels
115 W per channel (6 ohms, 1 kHz, 0.9% THD, 1-channel driven, FTC)
65 W per channel (8 ohms, 20 Hz - 20 kHz, 0.7% THD, 2-channels driven, FTC)
Dynamic Power per Channel 160 W (3 ohms, front)
125 W (4 ohms, front)
85 W (8 ohms, front)
THD & Noise 0.08 % (20 Hz - 20 kHz, half power)
Input Sensitivity and Impedance 200 mV / 47 k-ohms (line)
RCA Output Level and Impedance Rated: 1 V / 470 ohms (subwoofer pre-out)
Maximum: 2 V / 470 ohms (subwoofer pre-out)
Frequency Response 10 Hz - 100 kHz / +1 dB, -3 dB (direct mode)
Tone Control +/- 10 dB, 20 Hz (bass)
+/- 10 dB, 20 kHz (treble)
Signal-to-Noise Ratio 100 dB (line, IHF-A)
Impedance 6 - 16 ohms
Crossover Adjustment Each Channel: 40, 50, 60, 70, 80, 90, 100, 120, 150, 200 Hz
Video
Input Sensitivity/Output Level and Impedance 1.0 Vp-p / 75 ohms (component Y)
0.7 Vp-p / 75 ohms (component PB/CB, PR/CR)
1.0 Vp-p / 75 ohms (composite)
Upscaling None
3D Support Yes
Deep Color / x.v. Color Support Yes
HDMI CEC Yes
FM Stereo
Tuning Frequency Range FM: 87.5 MHz - 107.9 MHz
AM: 530 kHz - 1,710 kHz
FM/AM Preset Memory 40 Stations
Connectivity
Wi-Fi No
Bluetooth Version: 2.1 + EDR
AirPlay No
Audio Return Channel (ARC) Yes
Inputs 4 x HDMI
2 x Component Video
3 x Composite Video (1 front)
1 x Digital Coaxial
2 x Digital Optical
7 x Stereo RCA (1 front)
Outputs 1 x HDMI
1 x USB (5 V, 1 A, power only)
1 x Subwoofer Pre-out
1 x Headphone (front)
Other Interfaces 1 x RI Remote Control
1 x Calibration Microphone (front)
1 x AM Antenna
1 x FM Antenna
Speaker Connectors Center
Front Left
Front Right
Surround Left
Surround Right
Surround Back or Height Left
Surround Back or Height Right
Speaker System
Channels 5.1.2
Speaker Type Front/Center: 2-Way, Bass-reflex
Height (Integrated): Full-range, acoustic-suspension
Surround: Full-range, acoustic-suspension
Subwoofer: Bass-reflex, powered
Drivers Front Woofer: 5" (12 cm) cone
Front Tweeter: 1" (2.5 cm) balanced-dome
Height: 3.25" (8 cm) cone
Center Woofers: 2 x 3.5" (8 cm) cone
Center Tweeter: 1" (2.5 cm) balanced-dome
Surround: 3.25" (8 cm) cone
Subwoofer: 10" (25 cm) cone
Frequency Response Front: 55 Hz - 50 kHz
Height: 80 Hz - 20 kHz
Center: 65 Hz - 50 kHz
Surround: 80 Hz - 20 kHz
Subwoofer: 25 Hz - 150 Hz
Output Sound Pressure Level Front: 83 dB/W/m
Height: 81 dB/W/m
Center: 86 dB/W/m
Surround: 81 dB/W/m
Maximum Input Power Front/Height/Center/Surround: 130 W
Rated Output Power Subwoofer: 120 W (minimum continuous power, 4 ohms, 100 Hz, 1%, FTC)
Nominal Impedance Front/Height/Center/Surround: 6 ohms
Input Sensitivity/Impedance Subwoofer: 540 mV / 20 k-ohms
General
Power Consumption 4.3 A
No Sound: 80 W
Standby: 0.1 W
Power Requirements 120 VAC, 60 Hz
Dimensions (WxHxD) Receiver: 17.1 x 6.3 x 12.9" / 435.0 x 160.0 x 328.0 mm
Each Front/Height Speaker: 6.1 x 18.4 x 7.2" / 155.0 x 467.0 x 183.0 mm
Center Speaker: 16.1 x 4.5 x 4.8" / 409.0 x 115.0 x 121.0 mm
Each Surround Speaker: 4.5 x 9.1 x 3.8" / 115.0 x 230.0 x 96.0 mm
Subwoofer: 12.5 x 18.2 x 15.7" / 317.5 x 463.0 x 398.0 mm
Weight Receiver: 17.2 lb / 7.8 kg
Each Front/Height Speaker: 7.9 lb / 3.6 kg
Center Speaker: 4.9 lb / 2.2 kg
Each Surround Speaker: 2.2 lb / 1.0 kg
Subwoofer: 21.2 lb / 9.6 kg
Packaging Info
Package Weight 77.2 lb
Box Dimensions (LxWxH) 29.5 x 20.0 x 3.0"
The user manual for the Onkyo HT-S5800 5.1.2-Channel Home Theater System HT-S5800 can be downloaded in .pdf format if it did not come with your new home theater in a box, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Onkyo users keep a unique electronic library for Onkyo home theater in a boxs, where you can use our link to download the user manual for the Onkyo HT-S5800 5.1.2-Channel Home Theater System HT-S5800.

The user manual lists all of the functions of the Onkyo HT-S5800 5.1.2-Channel Home Theater System HT-S5800, all the basic and advanced features and tells you how to use the home theater in a box. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Onkyo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Onkyo HT-S5800 5.1.2-Channel Home Theater System HT-S5800. User manuals are also available on the Onkyo website under TVs & Entertainment - Speakers - Home Theater in a Box.
