User manual Onkyo TX-8050 Network Stereo A/V Receiver TX-8050

Operating instructions and pdf manual for use - Onkyo TX-8050 Network Stereo A/V Receiver TX-8050 User manual, User manual Onkyo TX-8050 Network Stereo A/V Receiver TX-8050, Onkyo, TX-8050, Network, Stereo, A/V, Receiver, TX-8050,


User manual for Onkyo TX-8050 Network Stereo A/V Receiver TX-8050

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

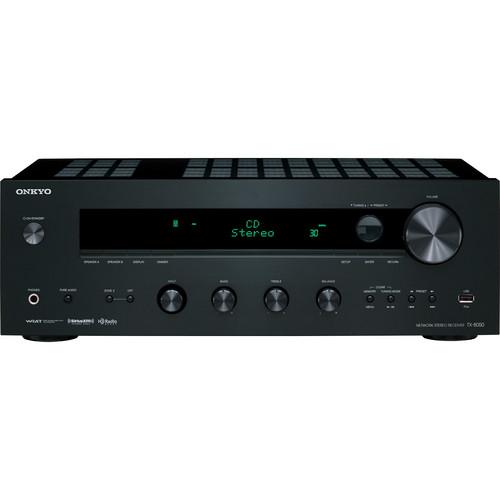

Onkyo TX-8050 Network Stereo A/V Receiver TX-8050
  • Manufacturer: Onkyo
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Receivers & Amplifiers - Receivers
  • Safety instructions
  • Startup and operation of the receivers
  • Tips for setting up your Onkyo
  • Settings and expert assistance
  • Contact Onkyo service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Onkyo TX-8050 Network Stereo A/V Receiver TX-8050, which address similar problems with connecting and setting up Receivers Onkyo.



User manual for the Onkyo TX-8050 Network Stereo A/V Receiver TX-8050

The user manual for the Onkyo TX-8050 Network Stereo A/V Receiver TX-8050 provides necessary instructions for the proper use of the product TVs & Entertainment - Receivers & Amplifiers - Receivers.

Onkyo's TX-8050 Network Stereo A/V Receiver is a feature-laden, network ready stereo receiver with a solid build for excellent two-channel audio reproduction. By connecting it to the internet you can stream content from internet radio stations like Pandora or vTuner, or stream audio from your PC for a larger library. You'll also find four video inputs with two outputs as well as six audio inputs and two audio output terminals for connection with both legacy and advanced home theater components.
If you own a Onkyo receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Onkyo TX-8050 Network Stereo A/V Receiver TX-8050 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Onkyo TX-8050 Network Stereo A/V Receiver TX-8050Download user manual for Onkyo TX-8050 Network Stereo A/V Receiver TX-8050
(PDF file, 6.63 MB)
Additional parameters of the Onkyo TX-8050 Network Stereo A/V Receiver TX-8050:
Specifications
    Amplifier
    Stereo RMS Power 80W per channel x 2, into 8 ohms
    Dynamic Power 160W per channel x 2, into 4 ohms
    No. of Channels 2
    Frequency Response 5 Hz-100 kHz (+ 1 dB, -3 dB)
    Total Harmonic Distortion (THD) 0.08 % (20hz-20kHz, half power)
    Signal to Noise Ratio Phono (MM): 80 dB (IHF-A)
    CD-Tape: 106 dB (IHF-A)
    Audio Processing
    Dolby Digital No
    Dolby Digital EX No
    Dolby Pro Logic II No
    DTS No
    DTS ES No
    DTS Neo:6 No
    THX Surround EX No
    THX Certified No
    Convenience
    Speaker Selector Yes
    Multi Room/Source Yes, Zone 2 Output
    AM/FM Tuner Yes, with 40 presets
    Remote Control Yes
    Connectors
    Input Analog Audio x 5 Sets (RCA)
    Composite Video x 4 Sets (RCA)
    Phono x 1 Set (RCA)
    Digital Optical Audio x 2
    Digital Coaxial Audio x 2
    FM Antenna x 1
    AM Antenna x 1
    Output Analog Audio x 2 Sets (RCA)
    Composite Video x 2 (RCA)
    Headphone x 1 (1/4" Phone)
    Speakers x 4 Sets (Binding Post)
    Zone 2 x 1 Set (RCA)
    Pre/Subwoofer x 1
    Other Ports Ethernet Port x 1
    USB Port (Front) x 1
    IR Input/Output x 1 (Mini)
    RI Port x 1 (Mini)
    XM Port x 1
    Sirius Port x 1
    Video Input Conversion No
    General
    Power Requirements 120VAC, 60Hz
    Color Black
    Dimensions (WxHxD) 17.1 x 5.9 x 12.9 (435 x 149.5 x 328 mm)
    Weight 19 lb (8.6 kg)
    Packaging Info
    Package Weight 23.4 lb
    Box Dimensions (LxWxH) 22.0 x 17.0 x 10.2"
    The user manual for the Onkyo TX-8050 Network Stereo A/V Receiver TX-8050 can be downloaded in .pdf format if it did not come with your new receivers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Onkyo users keep a unique electronic library for Onkyo receiverss, where you can use our link to download the user manual for the Onkyo TX-8050 Network Stereo A/V Receiver TX-8050.

    The user manual lists all of the functions of the Onkyo TX-8050 Network Stereo A/V Receiver TX-8050, all the basic and advanced features and tells you how to use the receivers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Onkyo service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Onkyo TX-8050 Network Stereo A/V Receiver TX-8050. User manuals are also available on the Onkyo website under TVs & Entertainment - Receivers & Amplifiers - Receivers.
