User manual Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747

Operating instructions and pdf manual for use - Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747 User manual, User manual Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747, Onkyo, TX-NR747, 7.2-Channel, Network, AV, Receiver, TX-NR747,


User manual for Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747
  • Manufacturer: Onkyo
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Receivers & Amplifiers - Receivers
  • Safety instructions
  • Startup and operation of the receivers
  • Tips for setting up your Onkyo
  • Settings and expert assistance
  • Contact Onkyo service
  • Troubleshooting
  • Warranty information
  • Price: 799 USD

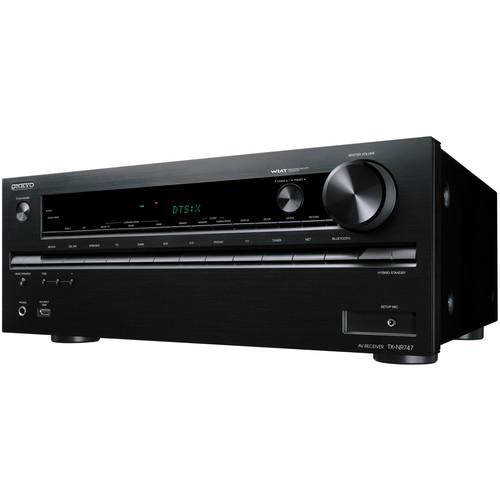

Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747 Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747 Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747
Click to enlarge image

We recommend checking out our discussion threads on the Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747, which address similar problems with connecting and setting up Receivers Onkyo.



User manual for the Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747

The user manual for the Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747 provides necessary instructions for the proper use of the product TVs & Entertainment - Receivers & Amplifiers - Receivers.

The Onkyo TX-NR747 7.2-Channel Network AV Receiver delivers wireless audio streaming and powerful multi-channel audio. This receiver features Onkyo's WRAT amplifier technology and delivers up to 110W per channel at 8 ohms for robust audio playback. Built-in AirPlay and Bluetooth allow you to wirelessly stream music from compatible audio sources such as computers, MP3 players, smartphones, and tablets. Onboard Wi-Fi and Ethernet connectivity gives you the ability to stream music from Internet radio sources and use DLNA technology to share content with compatible networked devices. Two Wi-Fi antennas are on the rear of the receiver for optimized signal range.

The Onkyo TX-NR747 has eight HDMI 2.0a inputs for interfacing audio and video sources, and the pass-through of 3D and 4K video sources. There's also a USB port for interfacing additional audio sources. Onkyo also offers a free remote app for controlling your receiver from a smartphone or tablet. Built-in high-resolution audio support allows you to take advantage of dynamic surround sound formats like DTS-HD Master Audio and Dolby TrueHD.
If you own a Onkyo receivers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747Download user manual for Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747
(PDF file, 6.19 MB)
Additional parameters of the Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747:
Specifications
    Channels 7.2
    Power Output All Channels
    175 W per channel (6 ohms, 1 kHz, 0.9% THD, 1-channel driven, FTC)
    110 W per channel (8 ohms, 20 Hz - 20 kHz, 0.08% THD, 2-channels driven, FTC)
    Dynamic Power per Channel 250 W (3 ohms, front)
    230 W (4 ohms, front)
    130 W (8 ohms, front)
    THD & Noise 0.08 % (20 Hz - 20 kHz, half power)
    Damping Factor 60 (front, 1 kHz, 8 Ohms)
    Input Sensitivity and Impedance 200 mV / 47 k-ohms (line)
    2.5 mV / 47 k-ohms (phono MM)
    RCA Output Level and Impedance Rated:
    100 mV / 2.2 k-ohms (zone 2 line-out)
    200 mV / 470 ohms (subwoofer pre-out)
    Maximum:
    1.0 V / 2.2 k-ohms (zone 2 line-out)
    2.0 V / 470 ohms (subwoofer pre-out)
    Phono Overload 70 mV (MM, 1 kHz, 0.5%)
    Frequency Response 10 Hz - 100 kHz / +1 dB, -3 dB (direct mode)
    Tone Control +/- 10 dB, 20 Hz (bass)
    +/- 10 dB, 20 kHz (treble)
    Signal-to-Noise Ratio 100 dB (line, IHF-A)
    80 dB (phono MM, IHF-A)
    Speaker Impedance 4 - 16 ohms or 6 - 16 ohms
    Crossover Adjustment Each Channel: 40, 50, 60, 70, 80, 90, 100, 120, 150, 200 Hz
    Video
    Input Sensitivity/Output Level and Impedance 1.0 Vp-p / 75 ohms (component Y)
    0.7 Vp-p / 75 ohms (component PB/CB, PR/CR)
    1.0 Vp-p / 75 ohms (composite)
    Component Video Frequency Response 5 Hz - 13.5 MHz / +0 dB, -3 dB
    Upscaling None
    3D Support Yes
    Deep Color / x.v. Color Support Yes
    HDMI CEC Yes
    FM Stereo
    Tuning Frequency Range FM: 87.5 MHz - 107.9 MHz
    AM: 530 kHz - 1,710 kHz
    FM/AM Preset Memory 40 Stations
    Connectivity
    Wi-Fi Yes
    Bluetooth Version: 2.1 + EDR
    AirPlay Yes
    DLNA Certified Yes, version 1.5
    Bi-Amp Capability Yes
    Audio Return Channel (ARC) Yes
    Inputs 8 x HDMI (1 front)
    2 x Component Video
    3 x Composite Video
    1 x Digital Coaxial
    2 x Digital Optical
    7 x Stereo RCA
    1 x Stereo RCA Phono
    1 x USB (5 V / 1 A)
    Outputs 2 x HDMI
    1 x Stereo RCA Zone 2
    2 x Subwoofer Pre-out
    1 x Headphone (front)
    Other Interfaces 1 x Ethernet
    1 x RI Remote Control
    1 x Calibration Microphone (front)
    1 x AM Antenna
    1 x FM Antenna
    Speaker Connectors Center
    Front Left
    Front Right
    Surround Left
    Surround Right
    Surround Back, Height, or Bi-amp Left
    Surround Back, Height, or Bi-amp Right
    Zone 2 Left
    Zone 2 Right
    General
    Power Consumption 6.9 A
    No Sound: 70 W
    Standby: 0.1 W
    Power Requirements 120 VAC, 60 Hz
    Dimensions (WxHxD) 17.1 x 6.9 x 14.9" / 435.0 x 175.0 x 379.0 mm
    Weight 24.3 lb / 11.0 kg
    Packaging Info
    Package Weight 29.4 lb
    Box Dimensions (LxWxH) 22.0 x 18.0 x 12.0"
    The user manual for the Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747 can be downloaded in .pdf format if it did not come with your new receivers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Onkyo users keep a unique electronic library for Onkyo receiverss, where you can use our link to download the user manual for the Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747.

    The user manual lists all of the functions of the Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747, all the basic and advanced features and tells you how to use the receivers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Onkyo service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Onkyo TX-NR747 7.2-Channel Network AV Receiver TX-NR747. User manuals are also available on the Onkyo website under TVs & Entertainment - Receivers & Amplifiers - Receivers.
