User manual for the Open-Mesh OM5P-AN-NA OM Series Cloud Managed OM5P-AN-NA

The user manual for the Open-Mesh OM5P-AN-NA OM Series Cloud Managed OM5P-AN-NA provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Access Points.

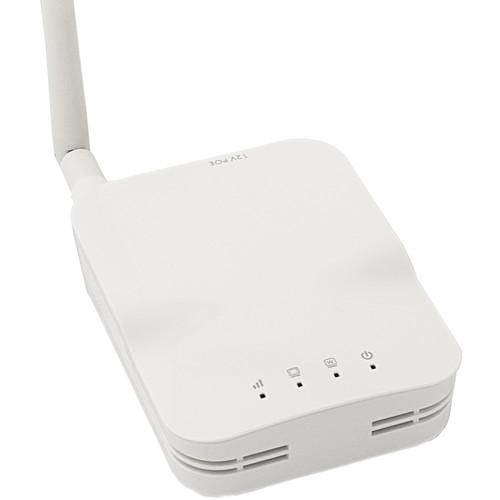

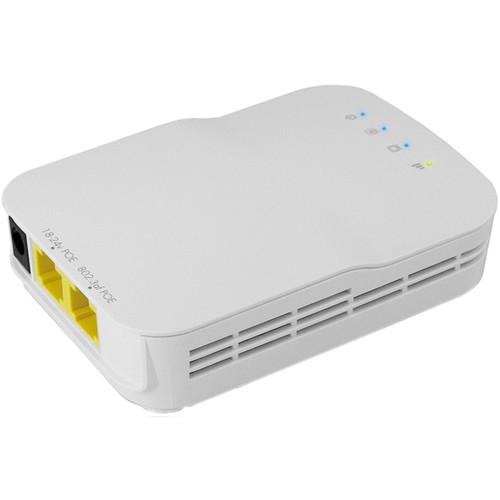

The cloud managed OM5P-AN-NA OM Series Cloud Managed Dual-Band Wireless-N Access Point from Open-Mesh is a modular access point designed for easy installation and configuration. Operating on both the 2.4 GHz and 5 GHz frequencies and supporting the 802.11a/b/g/n network standard, users benefit from data transfer rates of up to 135 Mbps. A variety of enclosure options including support for outdoor wall/pole, indoor wall plug, indoor Ethernet jack, and indoor ceiling installations allow this mesh network AP to be installed virtually anywhere a network connection is needed. The access point comes equipped with one Fast Ethernet port and one Gigabit Ethernet port and features 802.3af PoE connectivity to help eliminate the need for a separate power source. Also found within the AP you will find a three antenna configuration capable of emitting a signal to a distance of up to 100' when used indoors and up to 400' when installed outside.

Once installed, the OM5P-AN-NA Access Point can be managed remotely thanks to the cloud-based network controller, CloudTrax. Whether in front of a computer or on the go CloudTrax can be access via a web browser or the free app available for both iOS and Android. Configure up to two SSIDs, one private and one public, making it easy to provide users access to specific networks as well as the ability restrict access to portions of the network. Automated alerts provide up to the minute status updates to network administrators while WPA/WPA2 encryption keys help ensure the network remains safe and secure.
If you own a Open-Mesh wireless access points and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Open-Mesh OM5P-AN-NA OM Series Cloud Managed OM5P-AN-NA in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Open-Mesh OM5P-AN-NA OM Series Cloud Managed OM5P-AN-NA:
Specifications
Speed 450 Mbps (150+300)
Network Standards Compatibility 802.11a/b/g/n
Operating Frequency 2.4 GHz / 5 GHz
Antenna Three internal
1x1 2.4 GHz
2x2 5 GHz
Power 19 dBm (79 mw) flat power
Range 50 to 100' indoor (2-3 walls) / 400' outdoor
(15 to 30 m indoor / 122 m outdoor)
Processor 700 MHz QCA9557 MIPS74K
+ QCA9882 (5 GHz radio)
Max Users (Recommended) 20-50 per AP
Max Real Per-User Speed 135 Mbps
Memory 64 MB DRAM
SSIDs 1 public, 1 private
SSID to VLAN Tagging Yes
Ethernet Ports 1 x 10/100 Mbps
1 x 10/100/1000 Mbps
PoE Standard 802.3af
and 12-24 V Passive
Power Supply N/A
LEDs Power, 2 x Ethernet, Wi-Fi
Temperature 32 to 122°F / 0 to 50°C
Certifications FCC, IC, CE, CTick
Dimensions 3.75 x 2.75 x 1.00" / 9.53 x 6.99 x 2.54 cm
Weight Not specified by manufacturer
