User manual for the Optoma Technology S316 SVGA DLP Multimedia Projector S316

The user manual for the Optoma Technology S316 SVGA DLP Multimedia Projector S316 provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

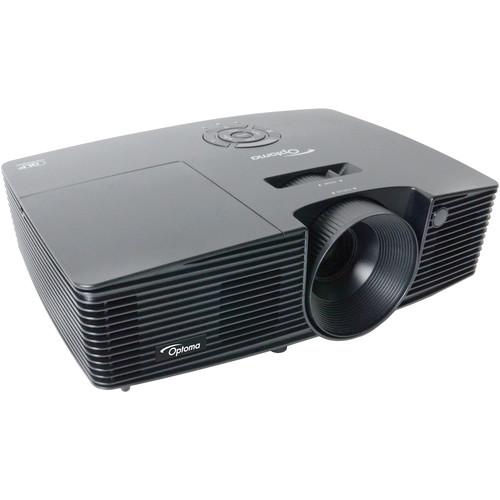

With an SVGA native resolution and a 4:3 native aspect ratio, the S316 SVGA DLP Multimedia Projector from Optoma is perhaps best suited for displaying SD video and PowerPoint style presentations. In addition to its native resolution, it can also support a range of non-native resolutions and aspect ratios up to 1920 x 1200, which is achieved through scaling. The image the S316 delivers is produced by a single-chip, 0.55" DLP device and provides 3200 lumens of brightness when set to full output.

The projector is designed to accommodate a variety of video sources. It features an HDMI port, which supports all HDMI 1.4a mandatory 3D formats for use with Blu-ray Disc players, computers, and other devices that are HDMI 1.4a 3D compatible. Next there are two VGA ports for computers with analog outputs, many AV systems, document cameras, and a number of other devices. For use with analog SD equipment such as VCRs, there is an S-video port and a composite video port. Lastly among the inputs, there are two stereo audio inputs on 3.5mm mini jack connectors. Finally, there is a VGA output for looping through one of the VGA input signals, plus a 3.5mm mini jack audio out for connecting amplified speakers or a sound system. Where external audio is unavailable, there is a built-in two-watt speaker that can be used.

An IR remote is included for operating the projector from within the same room - or you can just use the on-board buttons. For operation from further away, or integration with an automation system such as Crestron, there is an RS-232 interface. A case is included for transporting and storing the projector.
If you own a Optoma Technology multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Optoma Technology S316 SVGA DLP Multimedia Projector S316 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Optoma Technology S316 SVGA DLP Multimedia Projector S316Download user manual for Optoma Technology S316 SVGA DLP Multimedia Projector S316
(PDF file, 6.59 MB)
Additional parameters of the Optoma Technology S316 SVGA DLP Multimedia Projector S316:
Specifications
    Image Display
    Display System 1-Chip 0.55" / 13.97 mm DLP
    Native Resolution SVGA - 800 x 600
    Supported Resolutions WUXGA - 1920 x 1200
    UXGA - 1600 x 1200
    WXGA - 1280 x 800
    SXGA - 1280 x 1024
    SXGA+ - 1400 x 1050
    XGA - 1024 x 768
    SVGA - 800 x 600
    VGA - 640 x 480
    Format NTSC
    PAL
    SECAM
    HDTV Compatibility 1920 x 1080p
    1920 x 1080i
    1280 x 720p
    720 x 576p
    720 x 576i
    720 x 480p
    720 x 480i
    Brightness Normal Mode: 3200 Lumens
    Uniformity >80%
    Aspect Ratio Native: 4:3
    Supported: 16:9
    Supported: 16:10
    Dynamic Contrast Ratio 20000:1
    DLP Link 3D Yes

    Supports all HDMI 1.4a mandatory 3D formats

    Color Range 1.07 Billion
    Scan Vertical: 24 - 85 Hz or 120 Hz
    Horizontal: 15.375 - 91.146 kHz
    Lens
    Lens F 2.41 - 2.55 (f = 21.8 - 23.99 mm)
    Zoom 1.1x
    Throw Distance 3.2 - 39.4' (97.5 - 1200.9 cm)
    Throw Ratio 1.95 - 2.15:1
    Projection Size 27.5 - 302.8" / 69.85 - 769.11 cm
    Features
    Keystone Correction Vertical: ± 40°
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Built-in Speaker Yes, 2 W
    Input/Output Connectors
    Inputs/Outputs 1x HDMI Audio/Video (Input)
    2x 15-pin VGA Video (Input)
    1x S-Video Video (Input)
    1x RCA Composite Video (Input)
    2x 1/8" (3.5 mm) Mini Audio (Input)
    1x 15-pin VGA Video (Output)
    1x 1/8" (3.5 mm) Mini Audio (Output)
    1x Mini-USB Type-B Female
    1x RS-232C Control (Input)
    General
    Lamp (Bulb) 1x P-VIP

    Model number: SP.8VH01GC01

    Watts Normal Mode: 190 W
    Life Normal Mode: 5000 Hours
    Eco Mode: 6000 Hours
    Eco+ Mode: 10000 Hours
    Fan Noise Normal Mode: 29 dB
    Remote Control Yes
    Security Cable Lock Slot
    Security Bar
    Power Requirements 100-240 VAC, 50/60 Hz
    Power Consumption Normal Mode: 253 W
    Eco Mode: 194 W
    Standby Mode (Eco): <.5 W
    Temperature Operating
    41 to 104°F (5 to 40°C)
    Dimensions (WxHxD) 12.4 x 4.0 x 8.8" / 31.5 x 10.2 x 22.4 cm
    Weight 5.2 lb / 2.36 kg
    Packaging Info
    Package Weight 7.8 lb
    Box Dimensions (LxWxH) 15.8 x 11.3 x 6.0"
