User manual Optoma Technology X316ST Short-Throw DLP Multimedia X316ST

Operating instructions and pdf manual for use - Optoma Technology X316ST Short-Throw DLP Multimedia X316ST User manual, User manual Optoma Technology X316ST Short-Throw DLP Multimedia X316ST, Optoma, Technology, X316ST, Short-Throw, DLP, Multimedia

User manual for Optoma Technology X316ST Short-Throw DLP Multimedia X316ST

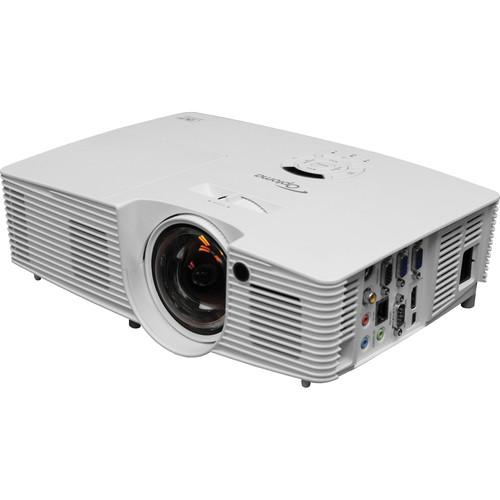

Optoma Technology X316ST Short-Throw DLP Multimedia X316ST
  • Manufacturer: Optoma Technology
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Optoma Technology
  • Settings and expert assistance
  • Contact Optoma Technology service
  • Troubleshooting
  • Warranty information
  • Price: 849 USD
We recommend checking out our discussion threads on the Optoma Technology X316ST Short-Throw DLP Multimedia X316ST, which address similar problems with connecting and setting up Multimedia Projectors Optoma Technology.


User manual for the Optoma Technology X316ST Short-Throw DLP Multimedia X316ST

The user manual for the Optoma Technology X316ST Short-Throw DLP Multimedia X316ST provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

The 0.6:1 throw ratio lens on the X316ST Short-Throw DLP Multimedia Projector from Optoma makes it ideal for classrooms, small conferences rooms, rear projection, and other tight spaces where the projector needs to be placed relatively close to the screen. It features the XGA (1024 x 768) format, which - at a 4:3 aspect ratio - is ideal for PowerPoint and other presentations. With a brightness of 3400 lumens, combined with the short throw distance required, the X316ST provides sufficient output to overcome a reasonable amount of ambient light for use in rooms where the lighting cannot be fully controlled.

Just about every input possibility is covered on the X316ST. This includes an HDMI input with 3D support, two VGA inputs and one output, plus composite and S-video inputs for legacy SD equipment. There are two separate audio inputs to accompany the analog video inputs, and there is a VAO audio output that loops through the audio accompanying whichever input is selected. In case a separate sound system is unavailable, there is also a built-in 10-watt speaker.

An IR remote is included, featuring a laser pointer and mouse control for giving presentations. It also has RS-232 for integration with control systems such as Crestron, plus an Ethernet port for control over a local network, helping reduce IT administrative costs.
If you own a Optoma Technology multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Optoma Technology X316ST Short-Throw DLP Multimedia X316ST in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Optoma Technology X316ST Short-Throw DLP Multimedia X316STDownload user manual for Optoma Technology X316ST Short-Throw DLP Multimedia X316ST
(PDF file, 7.26 MB)
Additional parameters of the Optoma Technology X316ST Short-Throw DLP Multimedia X316ST:
Specifications
    Image Display
    Display System 1-Chip 0.55" / 13.97 mm DC3 DMD DLP
    Native Resolution XGA - 1024 x 768
    Supported Resolutions WUXGA - 1920 x 1200
    UXGA - 1600 x 1400
    SXGA+ - 1400 x 1050
    WXGA+ - 1440 x 900
    WXGA - 1280 x 800
    SXGA - 1280 x 960
    XGA - 1024 x 768
    SVGA - 800 x 600
    VGA - 640 x 480
    Format NTSC
    PAL
    SECAM
    HDTV Compatibility 1920 x 1080p
    1920 x 1080i
    1280 x 720p
    720 x 576p
    720 x 576i
    720 x 480p
    720 x 480i
    Brightness Normal Mode: 3400 Lumens
    Uniformity >80%
    Aspect Ratio Native: 4:3
    Supported: 16:9
    Supported: 16:10
    Dynamic Contrast Ratio 20000:1
    DLP Link 3D Yes
    Supported 3D Formats Frame Packing
    Side by Side
    Top Bottom
    Color Range 1.07 Billion
    Scan Vertical: 24 - 85 Hz or 120 Hz
    Horizontal: 15.375 - 91.1 kHz
    Lens
    Focus Manual
    Lens F 2.7 (f = 7.15 mm)
    Zoom Digital: 0.8-2x
    Throw Distance 1.3 - 10.1' (0.4 - 3.1 m)
    Throw Ratio 0.617:1
    Projection Size 59.8 - 247.3" / 151.89 - 628.14 cm
    Features
    Keystone Correction Vertical: ± 40°
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Built-in Speaker 10 W (Mono)
    Closed Captioning Yes
    Input/Output Connectors
    Inputs/Outputs 1x HDMI Audio/Video (Input)
    2x 15-pin VGA Video (Input)
    1x S-Video Video (Input)
    1x RCA Composite Video (Input)
    1x 1/8" (3.5 mm) Mini Audio (Input)
    1x 1/8" (3.5 mm) Mini Microphone (Input)
    1x 15-pin VGA Video (Output)
    1x 1/8" (3.5 mm) Mini Audio (Output)
    1x RS-232C Control
    1x Ethernet LAN
    1x Mini-USB Control

    VGA output functional in both normal and standby modes. VAO audio output: HDMI VAO audio out supported; VAO available in normal mode, fixed during Standby
    General
    Watts Normal Mode: 210 W
    Life Bright Mode: 4000 Hours
    Eco Mode: 6000 Hours
    Dynamic Mode: 6500 Hours
    Eco+ Mode: 7000 Hours
    Education Cycle Mode: 8000 Hours
    Fan Noise Normal Mode: 29 dB
    Remote Control Yes
    Security Cable Lock Slot
    Padlock
    Security Bar
    Power Requirements 100-240 VAC, 50/60 Hz
    Power Consumption Normal Mode: 280 W
    Eco Mode: 194 W
    Standby Mode (Eco): <.5 W
    Temperature Operating
    41 to 104°F (5 to 40°C)
    Dimensions (WxHxD) 12.4 x 4.0 x 8.8" / 31.5 x 10.2 x 22.4 cm
    Weight 6.1 lb / 2.77 kg
    Packaging Info
    Package Weight 8.35 lb
    Box Dimensions (LxWxH) 15.512 x 11.181 x 6.929"
    The user manual for the Optoma Technology X316ST Short-Throw DLP Multimedia X316ST can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Optoma Technology users keep a unique electronic library for Optoma Technology multimedia projectorss, where you can use our link to download the user manual for the Optoma Technology X316ST Short-Throw DLP Multimedia X316ST.

    The user manual lists all of the functions of the Optoma Technology X316ST Short-Throw DLP Multimedia X316ST, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Optoma Technology service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Optoma Technology X316ST Short-Throw DLP Multimedia X316ST. User manuals are also available on the Optoma Technology website under A/V Presentation - Projectors - Multimedia Projectors.
