User manual for the Orion Images 19RCA 19" Economy Series CCTV LCD 19RCA
The user manual for the Orion Images 19RCA 19" Economy Series CCTV LCD 19RCA provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Surveillance Monitors.

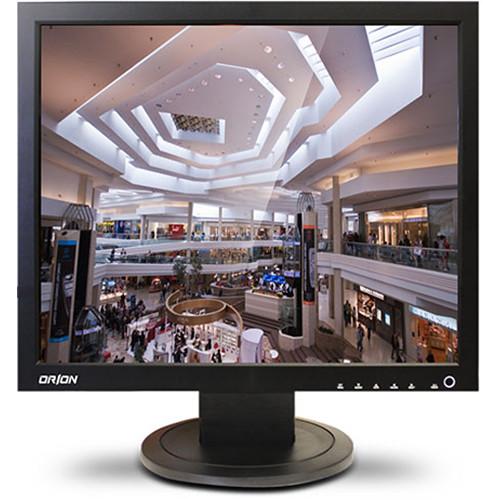

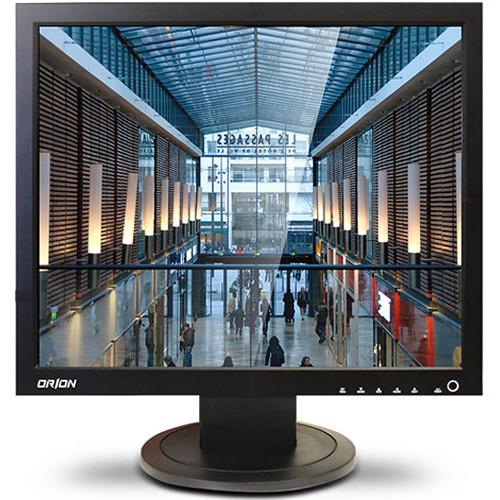

The black 19RCA 19" Economy Series CCTV LCD Monitor from Orion Images displays clear and sharp images up to a resolution of 1280 x 1024. With a response time of less than 5 ms, flickering effect is eliminated, thereby producing smooth images. The monitor is compatible with both NTSC and PAL video systems, and offers flexibility with multiple inputs such as video (BNC type), S-video, VGA, audio, and stereo. Also, the monitor is built with CCTV PCB boards and circuitry making it suitable for security or industry surveillance purposes.
If you own a Orion Images surveillance monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Orion Images 19RCA 19" Economy Series CCTV LCD 19RCA in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Orion Images 19RCA 19" Economy Series CCTV LCD 19RCA:
Specifications
Screen Size
19" (48.3 cm)
Maximum Resolution
1280 x 1024 @ 60 Hz
Pixel Pitch
0.294 x 0.294 mm
Brightness
250 cd/m²
Contrast Ratio
1000:1
Aspect Ratio
5:4
Viewing Angle
160°/160°
Display Colors
16.7 million
Response Time
< 5 ms
Video System
NTSC / PAL
Frequency
H: 31 to 64 kHz V: 56 to 75 kHz
Interface
2 x Video In (BNC type) 2 x Video Out (BNC type) 1 x S-Video In 1 x S-Video Out 1 x VGA In (15-pin D-sub) 1 x Audio In (RCA type) 1 x PC stereo In
Filter Type
3D Comb
Multi-Language
English, French, Dutch, Spanish, and Italian
Material
Cabinet: ABS Plastic
Power Consumption
< 30 W
Power Supply
100 to 240 VAC (50/60 Hz) 12 VDC, 3.5 A
Mounting
VESA Mount Size: 75 x 75 mm Wall: WB-5, WB-10, WB-30, WB-31 Mounts Ceiling: CMK-01
Operating Temperature
32 to 104°F (0 to 40°C)
Storage Temperature
-4 to 140°F (-20 to 60°C)
Dimensions
16.59 x 16.57 x 7.87" (42.1 x 42.1 x 19.8 cm)
Weight
13.2 lb (6 kg)
The user manual for the Orion Images 19RCA 19" Economy Series CCTV LCD 19RCA can be downloaded in .pdf
format if it did not come with your new surveillance monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Orion Images users keep a unique electronic library
for Orion Images surveillance monitorss,
where you can use our link to download the user manual for the Orion Images 19RCA 19" Economy Series CCTV LCD 19RCA.
The user manual lists all of the functions of the Orion Images 19RCA 19" Economy Series CCTV LCD 19RCA,
all the basic and advanced features and tells you how to use the surveillance monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Orion Images service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Orion Images 19RCA 19" Economy Series CCTV LCD 19RCA. User manuals are also
available on the Orion Images website under Surveillance - Surveillance Video - Surveillance Monitors.
