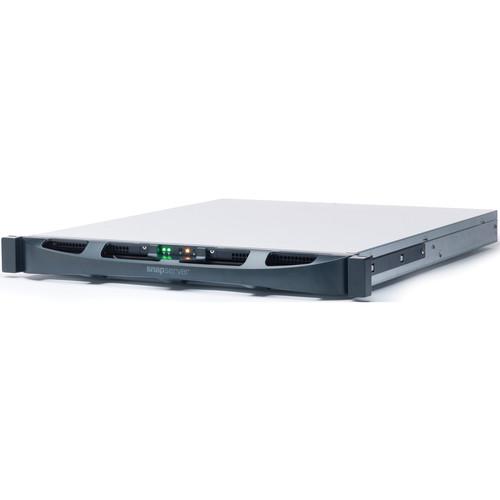

Designed for workgroups, departments, or remote offices requiring large amounts of storage and mobile/remote access requirements, the 24TB (4 x 6TB) 4-Bay SnapServer XSR 40 NAS from Overland Storage offers enterprise class data management and data protection features in a 1U rackmount form factor. With support for < 100 concurrent users and data performance speeds up to 40 MB/s, the XSR 40 runs on GuardianOS. This NAS comes pre-configured with 24TB (4 x 6TB) of storage and supports 4 x SATA II 3 Gb/s drive bays. It is powered by a 1.8 GHz processor and its 2GB of ECC RAM, which can be upgraded to 4GB, allows frequently-used files to be quickly accessed. Network connectivity is achieved using the dual Gigabit Ethernet ports. This NAS also has 2 x USB 2.0 ports for connecting external devices, such as an RDX QuickStor.
SnapServer's GuardianOS includes DynamicRAID for seamless storage expansion by adding or replacing hard drives as capacity requirements change. In addition, all SnapServer storage volumes can grow or shrink dynamically within the storage pool without IT intervention, helping to prevent provisioning errors and costly upgrades. Supported RAID modes include RAID 0, 1, 5, 6, 10, and JBOD, as well as Dynamic RAID Dual or Single Parity.
With both block and file level access, the XSR 40 has cross-platform compatibility with Windows, Linux, UNIX, and Macintosh systems. GuardianOS also includes additional data protection features such as high performance snapshots, direct backup to RDX, disk, or LTO tape, as well as BitTorrent Sync, which will help sync and replicate to other SnapServers in the event of disaster recovery. BitTorrent Sync will also enable anywhere file access with virtually any mobile device and optional data replication is also available.
The capacity of the XSR 40 can also be expanded. Although this NAS only comes pre-configured with 24TB of storage, drives can be added to the array, provided there are available drive bays, but further expansion is possible using the external 2U, 12-bay SnapExpansion chassis. Up to three SnapExpansion chassis units may be simultaneously utilized. The XSR 40 is compatible with Enterprise SATA II drives with capacities of 1, 2, 3, 4, 5, and 6TB.
The 24TB (4 x 6TB) 4-Bay SnapServer XSR 40 NAS has a power rating of 200W and operates on 100-240 VAC at 50-60 Hz. It has a maximum input current of 4A at 115 VAC and 2A at 230 VAC. It consumes 80W and includes a US power cord, an EMEA power cord, a UK power cord, a Serial DB9 to RJ-11 adapter, a fixed rack rail mounting kit, and 2 x 7.00' / 2.13m Cat-5 Ethernet cables.
If you own a Overland network attached storage drives and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Overland 24TB (4 x 6TB) 4-Bay SnapServer XSR 40 NAS OT-NAS200230 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Overland 24TB (4 x 6TB) 4-Bay SnapServer XSR 40 NAS OT-NAS200230:
Specifications
Operating System
GuardianOS 7.6
Management
Web-based GUI, CLI, SnapServer Manager
Concurrent Users
< 100
Performance
40 MB/s
Network File Protocols
SMB, CIFS, NFS, AFP, HTTP, FTP
iSCSI Support
Included
Snapshots
Included
Replication
Snap EDR
Power Supply
Single
Sync and Mobile Access
BitTorrent Sync
Microsoft Active Directory Support
Included
VMware Support
VMWare Ready
Form Factor
1U, 4-drive rackmount
CPU and Memory
1.8 GHz processor 1 x 2 GB 800 MHz DDR3 ECC SO-DIMM (upgradeable to 2 x 2 GB)
Drive Configuration
4 x SATA II 3 Gb/s
RAID Levels
Traditional RAID Levels 0, 1, 5, 6, 10, and JBOD Dynamic RAID Dual or Single Parity
Drive Types Supported
Enterprise SATA II: 1, 2, 3, 4, 5, and 6TB
Network Connectivity
2 x 1GbE Ethernet Included
USB Interface
UPS, Printers, Tape Devices, RDX QuikStor
Expansion Array
Supports up to 3 SnapExpansion Chassis
Expansion Array Interface
SFF-8088 SAS (optional SAS HBA required)
Local Backup Interface
4 x USB 2.0 ports
Agency Approvals
IEC/EN/UL 60950, cULus
Power
Power Rating: 200 W, 100-240 V AC, 50-60 Hz Input Current: Max 4 A (RMS) @ 115 V AC, 2A (RMS) @ 230 V AC Power Consumption: 80 W (steady state)
Environmental Limits
Operating Environment:
Temperature: 32 to 95°F / 0 to 35°C Humidity Range: 20 to 80% non-condensing Shock: 6 pulses of 31 Gs for up to 2 ms Altitude: -50.00 to 10,000.00' / -15.24 to 3,048.00 m)
Non-Operating Environment:
Temperature: -40 to 149°F / -40 to 65°C Humidity Range: 90%, non-condensing Altitude: -50.00 to 35,000.00' / -15.24 to 10,668.00 m
Supported Platforms
Windows, Linux, UNIX, Apple, VMWare
Certifications
Certified for Windows Server 2008, Server 2008 Hyper-V, Server 2012 VMWare Ready
Physical / Mounting
Dimensions: 17.17 x 1.73 x 19.25" / 436.12 x 43.94 x 488.95 mm Weight: 17.00 lb / 7.71 kg (without drives); 24.00 lb / 10.89 kg (with four drives)
