User manual for the OWC / Other World Computing 16TB Mercury Rack OWMRPM3F8Q16.0T

The user manual for the OWC / Other World Computing 16TB Mercury Rack OWMRPM3F8Q16.0T provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Hard Drive Arrays.

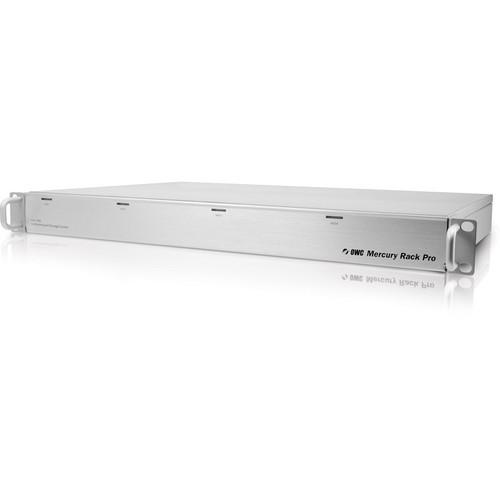

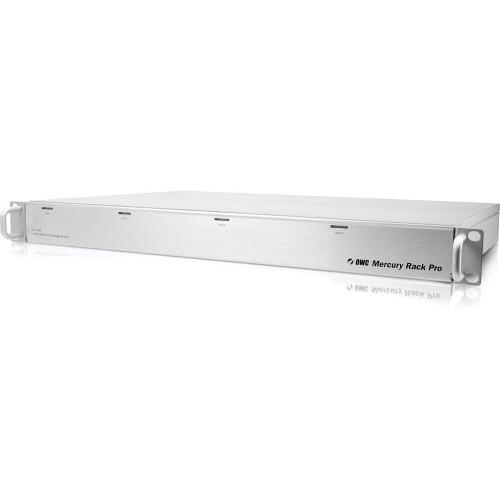

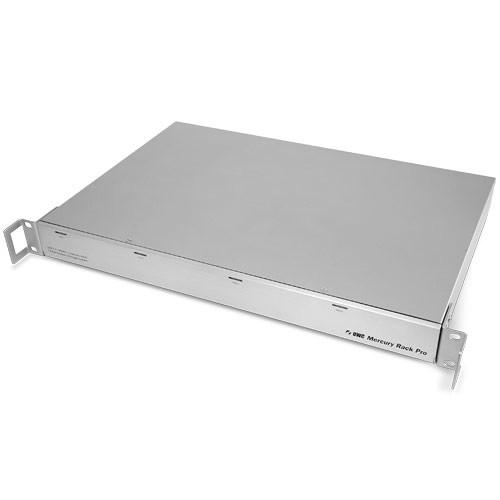

Designed to meet the serious demands of video and audio production work, the 16TB Mercury Rack Pro 16TB (4 x 4TB) 1U Multi-Interface Four-Bay RAID Solution from OWC / Other World Computing is a high-performance, hardware-controlled RAID array that can connect to your computer with four different interfaces. In a 1U rack mount size, the Mercury Rack Pro comes with, and holds, four standard SATA 3.5" 4TB hard disk drives that spin at 7200rpm. The drives total a capacity of 16TB and together come preconfigured as a RAID 5 array; however, you can use the rear-panel to hardware re-configure the drives as a SPAN, a RAID 0, 1, 3, 10, or as a JBOD. The drives are also hot swappable.

In connecting to your computer, the Mercury Rack Pro offers you flexibility and high-speed options with four different kinds of ports. It features one eSATA port, one USB 3.0 port, two FireWire 800 ports, and one FireWire 400 port. For managing your RAID array and backing up your data, the Mercury Rack Pro comes with the following software: OWC RAID Manager Visual Interface, Prosoft Engineering Data Backup 3, Carbon Copy Cloner, and NovaStor NovaBACKUP. It also comes with Intech SpeedTools Utilities, a program for repairing and maintaining your disks. The OWC Mercury Rack Pro is preformatted for use with Macs but is also compatible with Windows computers.
If you own a OWC / Other World Computing hard drive arrays and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the OWC / Other World Computing 16TB Mercury Rack OWMRPM3F8Q16.0T in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for OWC / Other World Computing 16TB Mercury Rack OWMRPM3F8Q16.0TDownload user manual for OWC / Other World Computing 16TB Mercury Rack OWMRPM3F8Q16.0T
(PDF file, 7.31 MB)
Additional parameters of the OWC / Other World Computing 16TB Mercury Rack OWMRPM3F8Q16.0T:
Chipset eSATA with port-multiplier capability, FireWire 800 (1394B), FireWire 400 (1394A), and USB 3.0 Chipset
RAID Support Preconfigured in RAID 5
Rear panel selectable Hardware RAID settings - SPAN, 0, 1, 3, 5, 10, and Non-RAID/Raid Ready
Independent Mode - each drive appears as independent volume
Drives Included 4 x 4 TB hard drives
7200 RPM
128 MB per drive, 512 MB total
Ports 1 x eSATA port with port-multiplier capability
2 x FireWire 800 9-pin ports
1 x FireWire 400 6-pin port
1 x USB 3.0 Type-A port
Format Included Drive Guide Software will format drive for OS X or Windows
Data Transfer Rate (max) eSATA - 300 MB/s
FireWire 800 - 100 MB/s
FireWire 400 - 50 MB/s
USB 3.0 - 500 MB/s
USB 2.0 - 60 MB/s
USB 1.1 - 1.5 MB/s
Interface Bootability eSATA, FireWire 800, FireWire 400, USB 3.0, and USB 2.0 on Windows and Macs
Macintosh System Requirements eSATA: Macintosh with eSATA PCI Interface card. eSATA requires Mac OS X 10.2 or later, including Mavericks 10.9.x
FireWire 800 (1394B): Macintosh with FireWire 800 (1394B) interface, either built in or via PCI FireWire 800 (1394B) card. FireWire 800 (1394B) requires Mac OS X 10.2 or later, including Mavericks 10.9.x
FireWire 400 (1394A): Macintosh with FireWire 400 interface, either built in or via PCI FireWire 400 card. FireWire 400 requires Mac OS 8.6 or later, including Mavericks 10.9.x
USB 3.0: Macintosh OS 8.6 to 9.2.2, OS X 10.2.x or later, including Mavericks 10.9.x, and an available USB 3.0 port
Time Machine Compatible: Mac OS X 10.5 (version introduced) and later
Windows System Requirements eSATA: Windows system with eSATA PCI Interface, either built in or via PCI eSATA card. eSATA requires Windows XP or later.
FireWire 800 (1394B): Windows system with FireWire 800 (1394B) interface, either built in or via PCI FireWire 800 (1394B) card. FireWire 800 (1394B) requires Windows XP or later.
FireWire 400 (1394A): Windows system with FireWire 400 interface, either built in or via PCI FireWire 400 card. FireWire 400 requires Windows XP or later.
USB 3.0: Windows 98 or later and an available USB 3.0/USB 2.0/USB 1.1 port
Linux Requirements Linux compatible via supported USB and FireWire interfaces
Cooling 3 x 40mm brushless, quiet, constant speed fans
Power Supply UL Listed U.S./International Adjustable 100 to 240 V, 50 to 60 Hz, 200 W (Max.) input Power Supply (power cables for International use sold separately).
Temperature Operating: 41 to 108°F / 5 to 42°C
Non-operating: -40 to 149°F / -40 to 65°C
Humidity Operating: 8 to 90% RH (non-condensing)
Non-operating: 5 to 95% RH (non-condensing)
Shock 65G 2mS; (non-operating) 175G 2mS
Vibration Operating: 1 G (5 to 300 Hz)
Non-operating: 5 G (5 to 500 Hz)
Dimensions 11.9 x 17.3 x 1.7" / 30.2 x 43.9 x 4.3 cm
With Feet: 11.9 x 17.3 x 2.2" / 30.2 x 43.9 x 5.6 cm
With Rack Mounting Handles: 11.9 x 19.2 x 1.7" / 30.2 x 48.8 x 4.3 cm
Weight 10.0 lb / 4.5 kg
Packaging Info
Package Weight 23.1 lb
Box Dimensions (LxWxH) 21.8 x 16.2 x 10.1"
The user manual for the OWC / Other World Computing 16TB Mercury Rack OWMRPM3F8Q16.0T can be downloaded in .pdf format if it did not come with your new hard drive arrays, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other OWC / Other World Computing users keep a unique electronic library for OWC / Other World Computing hard drive arrayss, where you can use our link to download the user manual for the OWC / Other World Computing 16TB Mercury Rack OWMRPM3F8Q16.0T.

The user manual lists all of the functions of the OWC / Other World Computing 16TB Mercury Rack OWMRPM3F8Q16.0T, all the basic and advanced features and tells you how to use the hard drive arrays. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from OWC / Other World Computing service.
