User manual OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T

Operating instructions and pdf manual for use - OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T User manual, User manual OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T, OWC, /, Other, World, Computing, Mercury, Elite, Pro


User manual for OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T
  • Manufacturer: OWC / Other World Computing
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Hard Drive Arrays
  • Safety instructions
  • Startup and operation of the hard drive arrays
  • Tips for setting up your OWC / Other World Computing
  • Settings and expert assistance
  • Contact OWC / Other World Computing service
  • Troubleshooting
  • Warranty information
  • Price: 440 USD
OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T
Click to enlarge image

We recommend checking out our discussion threads on the OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T, which address similar problems with connecting and setting up Hard Drive Arrays OWC / Other World Computing.



User manual for the OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T

The user manual for the OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Hard Drive Arrays.

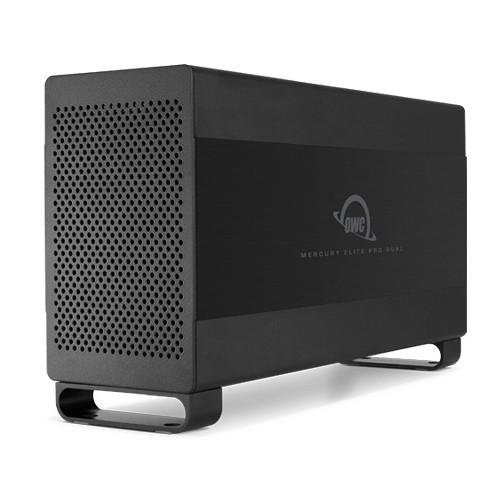

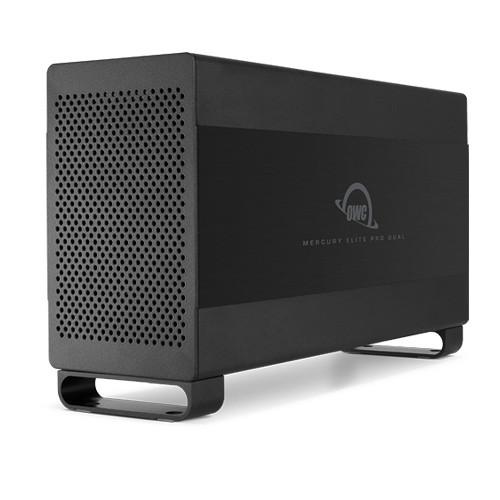

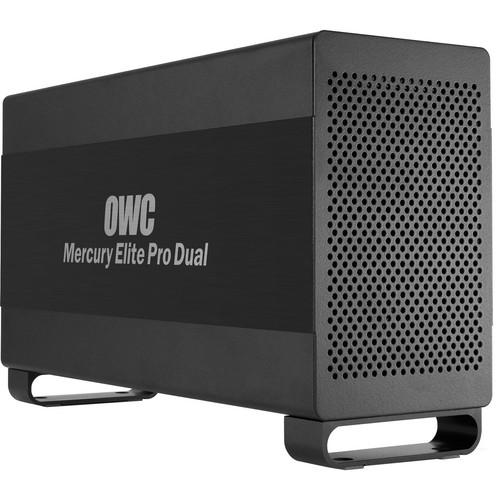

The Mercury Elite Pro Dual 4TB (2 x 2TB) Two-Bay Thunderbolt RAID Array from OWC / Other World Computing is a multi-interface storage solution that houses two 2TB 3.5" hard drives. For maximum performance, the two drives are configured in RAID 0 by default but can be easily reconfigured in RAID 1, span, or JBOD/independent modes via the RAID selector switch on the back. The hard drives each sport 64MB of cache memory and spin at 7,200 rpm. Furthermore, USB 3.0 and Thunderbolt ports provide fast access to the data stored on the drives.

This storage solution comes in a durable, heat-dissipating, and brushed-aluminum enclosure along with a cooling fan. A Thunderbolt chipset offers the full potential of this rugged external drive's dual 3.5" hard drives. The system comes with variety of backup software and utilities that include Prosoft Engineering Data Backup, NovaStor NovaBACKUP, and Intech SpeedTools utilities. In addition to this, it includes Drive Guide Software that formats drives for either OS X or Windows on demand.
If you own a OWC / Other World Computing hard drive arrays and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0TDownload user manual for OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T
(PDF file, 3.79 MB)
Additional parameters of the OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T:
Specifications
    Chipset Thunderbolt
    Interfaces Supported Thunderbolt
    USB 3.0 (backwards compatible with USB 2.0)
    Drives Included 2 x 4 TB 3.5" hard drives
    64 MB of cache memory each
    7200 rpm rotational speed
    Ports 2 x Thunderbolt
    1 x USB 3.0 Type-B
    Max Data Transfer Rate Thunderbolt - up to 10 Gb/s
    USB 3.0 - up to 500 MB/s
    USB 2.0 - up to 60 MB/s
    Port/Interface Bootability USB 3.0: Supported on Macs and PC's meeting minimum requirements
    USB 2.0: Supported on Macs and PC's meeting minimum requirements
    Thunderbolt: It can be used as a Thunderbolt startup drive on Macs running Mac OS X
    Macintosh System Requirements USB 3.0: Macintosh with USB 3.0 interface, either built in or via USB 3.0 expander card and OS 10.6.8 or later
    USB 2.0: Macintosh with USB 2.0 interface, either built in or via USB 2.0 expander card and OS 10.2.8 or later
    Available Thunderbolt port and OS 10.6.8 or later
    Time Machine Compatible: Mac OS X 10.5 (version introduced) and later
    Windows System Requirements Thunderbolt: Any PC running Windows 7 Service Pack 1 or later with a Thunderbolt port
    USB 3.0: Windows XP and later with USB 3.0 interface, either built in or via USB 3.0 expander card
    USB 2.0: Windows 2000 and later with USB 2.0 interface, either built in or via USB 2.0 expander card
    Boot Camp is is only supported using USB
    The Thunderbolt certification process does not include Macs running Windows through Boot Camp
    Linux Requirements Linux compatible via supported USB 3.0/USB 2.0 interfaces
    Power Supply UL Listed U.S./International Auto Switching 100 to 240 VAC, 50/60 Hz input, 12 V, 6 A output
    Temperature Operating: 41 to 108°F / 5 to 42°C
    Non-operating: -40 to 149°F / -40 to 65°C
    Humidity Operating: 8 to 90% RH (non-condensing)
    Non-operating: 5 to 95% RH (non-condensing)
    Shock 65 G 2mS; (non-operating) 175 G 2mS
    Vibration Operating: 1.0 G (5 to 300 Hz)
    Non-operating: 5.0 G (5 to 500 Hz)
    MTBF More than 300,000 power-on hours
    Dimensions (W x D x H) 2.8 x 9.0 x 5.3" / 71.1 x 228.6 x 134.6 mm
    Weight 5.5 lb / 2.5 kg
    Packaging Info
    Package Weight 7.95 lb
    Box Dimensions (LxWxH) 11.417 x 9.764 x 4.646"
    The user manual for the OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T can be downloaded in .pdf format if it did not come with your new hard drive arrays, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other OWC / Other World Computing users keep a unique electronic library for OWC / Other World Computing hard drive arrayss, where you can use our link to download the user manual for the OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T.

    The user manual lists all of the functions of the OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T, all the basic and advanced features and tells you how to use the hard drive arrays. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from OWC / Other World Computing service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the OWC / Other World Computing Mercury Elite Pro OWCMETB7DH4.0T. User manuals are also available on the OWC / Other World Computing website under Computers & Solutions - Drives & Storage - Hard Drive Arrays.
