User manual for the OWC / Other World Computing Mercury Elite Pro Qx2 OWCM3QX2T24.0E
The user manual for the OWC / Other World Computing Mercury Elite Pro Qx2 OWCM3QX2T24.0E provides
necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Hard Drive Arrays.

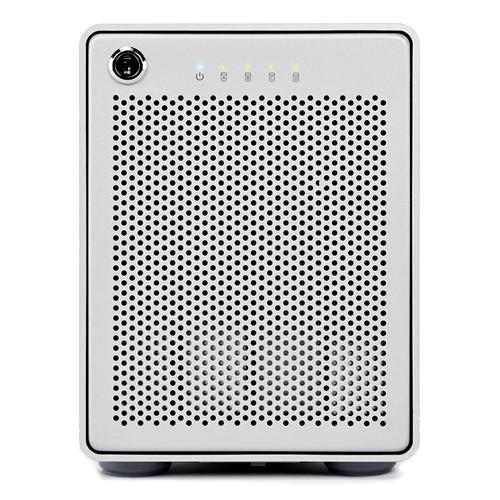

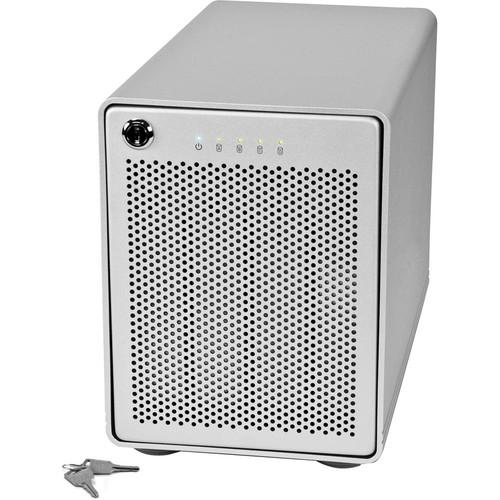

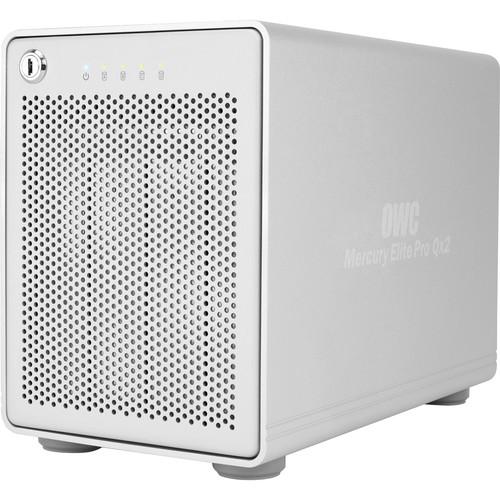

The Enterprise edition of the Mercury Elite Pro Qx2 24TB (4 x 6TB) Four-Bay RAID Array from OWC / Other World Computing is a multi-interfaced RAID storage solution that consists of four Enterprise-class 6TB 3.5" Serial ATA hard disk drives in a brushed aluminum enclosure. This storage array is pre-configured in RAID 5 mode, which is designed for optimized data protection, capacity, and performance. Hardware RAID levels 0, 1, 5, 10 can also be selected from the systems lockable front panel; each RAID level offers configuration options for capacity, data protection, redundancy, and speed.
In addition to offering support for RAID 0, 1, 5 and 10 levels, the Mercury Elite Pro offers USB 3.0, dual FireWire 800, and an eSATA port with maximum transfer speeds of 300, 100, and 300 MB/s respectively. USB 3.0, eSATA, and FireWire 800 cables are included. This storage array is pre-formatted for Mac but can be re-formatted to work in a Windows environment. A free downloadable software suite is also available for the backup and tuning of your Mac and Windows systems.
|
If you own a OWC / Other World Computing hard drive arrays and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the OWC / Other World Computing Mercury Elite Pro Qx2 OWCM3QX2T24.0E in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the OWC / Other World Computing Mercury Elite Pro Qx2 OWCM3QX2T24.0E:
| Chipset | JMicron 355 / FW800 (1394B) / FW400(1394A) and JMicron 567 3.0 | | Storage | 24 TB | | Port Configuration | 1 x eSATA port
2 x FireWire 800 (9-pin) ports
1 x USB 3.0 (9-pin, mini-B) port | | Data Transfer Rate (max) | eSATA: 300 MB/sec (in RAID 0)
FireWire 800: 100 MB/sec
FireWire 400: 50 MB/sec
USB 3.0: 300 MB/sec (in RAID 0)
USB 2.0: 60 MB/sec | | Drives | 4 x 6 TB hard disk drives | | RAID / JBOD Support | RAID 0,1,5,10 Hardware RAID Mode, and NRAID Span Options
Solutions are pre-configured as RAID 5 for optimum speed, protection & capacity | | Cache Memory | 64 MB per drive, 256 MB total | | Format | Included Drive Guide software will format drive for either OS X or Windows | | Requirements | Macintosh System Requirements:
Minimum Apple G4 processor, 128MB RAM
Mac OS 8.6 to 9.2.2, 10.0.x or later and an available USB 1.1 or FireWire 400 port
Mac OS X 10.2.8 or later including Mavericks 10.9.x and an available USB 2.0/1.1, FireWire 800/400 port, or eSATA port
Time Machine Compatible: Mac OS X 10.5 (version introduced) and later
Windows System Requirements:
Minimum Intel Pentium III CPU 500MHz, 128MB RAM
Windows XP(64 bit) or later and an available USB 3.0/2.0, FireWire 800/400, or eSATA port
Linux Requirements:
Linux compatible via supported USB and FireWire interfaces | | Temperature | Operating: 41 to 108°F / 5 to 42°C
Non-operating: -40 to 149°F / -40 to 65°C | | Relative Humidity | Operating: 8-90% RH (Non-condensing)
Non-operating: 5-95% RH (Non-condensing) | | Shock | 65G 2mS; (non-operating) 175G 2mS | | Vibration | Operating: 1.0G (5-300 Hz)
Non-operating: 5.0G (5-500 Hz) | | Dimensions | 9.7 x 5.3 x 7.0" / 246.4 x 134.6 x 177.8 mm | | Weight | 8.6 lb / 3.9 kg | |
The user manual for the OWC / Other World Computing Mercury Elite Pro Qx2 OWCM3QX2T24.0E can be downloaded in .pdf
format if it did not come with your new hard drive arrays, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other OWC / Other World Computing users keep a unique electronic library
for OWC / Other World Computing hard drive arrayss,
where you can use our link to download the user manual for the OWC / Other World Computing Mercury Elite Pro Qx2 OWCM3QX2T24.0E.
The user manual lists all of the functions of the OWC / Other World Computing Mercury Elite Pro Qx2 OWCM3QX2T24.0E,
all the basic and advanced features and tells you how to use the hard drive arrays.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from OWC / Other World Computing service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the OWC / Other World Computing Mercury Elite Pro Qx2 OWCM3QX2T24.0E. User manuals are also
available on the OWC / Other World Computing website under Computers & Solutions - Drives & Storage - Hard Drive Arrays.
