User manual for the OWC / Other World Computing Mercury On-The-Go OWCMS8U3H7500GB
The user manual for the OWC / Other World Computing Mercury On-The-Go OWCMS8U3H7500GB provides
necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - External Drives.

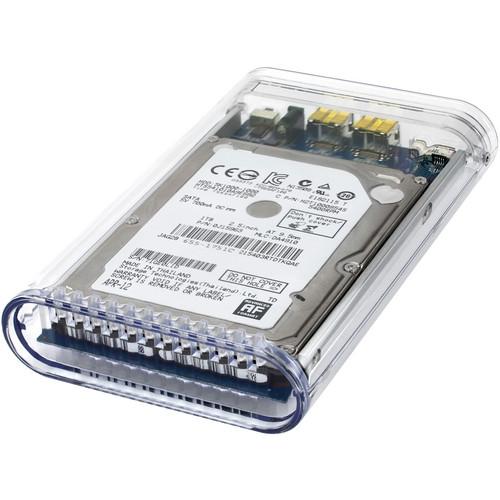

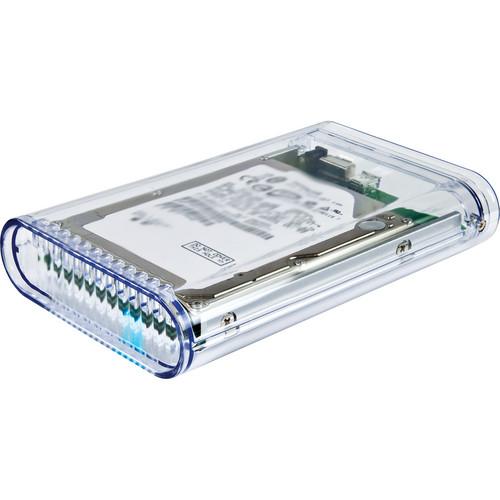

The Mercury On-The-Go Pro 500GB Hard Drive from Other World Computing is a 500GB portable hard drive with a variety of connection options, including FireWire 800/400 and USB 3.0. This hard drive is compatible with both Mac and PC machines as well as backwards compatible with USB 2.0 making it both compact and versatile. The drive features a fanless design for near silent operation.
A variety of included cables allow you to begin using your hard drive right out of the box. The included USB cable gives you the ability to connect to systems with either a USB 3.0 or 2.0 port. The drive comes preformatted for Mac OS X systems and can be easily reformatted for a Windows system. Once connected, the OWC hard drive contains both backup and utility software allowing you to easily create complete system backups.
If you own a OWC / Other World Computing external drives and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the OWC / Other World Computing Mercury On-The-Go OWCMS8U3H7500GB in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the OWC / Other World Computing Mercury On-The-Go OWCMS8U3H7500GB:
Specifications
Bus Interface
FireWire 1394B (IEE1394A/B/iLink Compliant), 2 9-pin (powered) ports USB 3.0 / 2.0 / 1.1 Backwards compatible 9-pin mini "B" port.
Cables
All cables included. The USB cable connects to systems with USB 1.1, USB 2.0, and USB 3.0. No additional USB cable is needed to connect the drive.
Chipset
Oxford 944 and ASMedia 1051e FireWire/USB chipset
Standard Mechanism
500GB Seagate/Samsung Spinpoint M8 Hard Disk Drive** **OWC reserves the right to replace or upgrade to equivalent or better components
Drive Interface
SATA (Serial ATA)
Drive Cache Size
32 Megabyte (32,768k)
Drive Rotation Speed
7200rpm
Port Configuration
FireWire 800 - (2) 9-pin powered ports USB 3.0 - (1) 9-pin mini B port
Max Data Transfer Rate
FireWire 800 - 100MB/sec FireWire 400 - 50MB/sec USB 3.0 - 500MB/sec USB 2.0 - 60MB/sec USB 1.1 - 1.5MB/sec
Port/Interface Bootability
FireWire 800 FireWire 400 USB 3.0 USB 2.0
Drive Format
FAT32
Mac System Requirements
Mac OS 8.6 to 9.2.2 compatible, OS X 10.1.x and later. (10.2 or later required for FW800 and USB 3.0) FireWire 800: Macintosh with FireWire 800 interface, either built in or via PCI FireWire 800 card. FireWire 400: Macintosh with FireWire 400 interface, either built in or via PCI FireWire 400 card. USB 2.0: Macintosh with USB 2.0 interface, either built in or via PCI USB 2.0 card.
Windows System Requirements
FireWire 800: PC with FireWire 800 interface, either built in or via PCI FireWire 800 card. FireWire 400: PC with FireWire 400 interface, either built in or via PCI FireWire 400 card. USB 3.0: PC with USB 3.0 interface, either built in or via PCI USB 3.0 card. USB 2.0: PC with USB 2.0 interface, either built in or via PCI USB 2.0 card.
Linux Requirements
Linux compatible via supported USB and FireWire interfaces.
Power Supply
Bus Power via FireWire 800 supported on all models equipped with an available FireWire 800 port either factory stock or via add on FireWire 800 PCI Card. Bus Power via FireWire 400 on all models made in 2001 or later via Factory ports or any model with add on FireWire 400 PCI Card. Bus Power via USB on most computers with USB 3.0 port factory stock. Optional AC Adapter (available as a separate purchase)
The user manual for the OWC / Other World Computing Mercury On-The-Go OWCMS8U3H7500GB can be downloaded in .pdf
format if it did not come with your new external drives, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other OWC / Other World Computing users keep a unique electronic library
for OWC / Other World Computing external drivess,
where you can use our link to download the user manual for the OWC / Other World Computing Mercury On-The-Go OWCMS8U3H7500GB.
The user manual lists all of the functions of the OWC / Other World Computing Mercury On-The-Go OWCMS8U3H7500GB,
all the basic and advanced features and tells you how to use the external drives.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from OWC / Other World Computing service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the OWC / Other World Computing Mercury On-The-Go OWCMS8U3H7500GB. User manuals are also
available on the OWC / Other World Computing website under Computers & Solutions - Drives & Storage - External Drives.
