User manual OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240

Operating instructions and pdf manual for use - OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240 User manual, User manual OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240, OWC, /, Other, World, Computing, Mercury, On


User manual for OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240

OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240
  • Manufacturer: OWC / Other World Computing
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - External Drives
  • Safety instructions
  • Startup and operation of the external drives
  • Tips for setting up your OWC / Other World Computing
  • Settings and expert assistance
  • Contact OWC / Other World Computing service
  • Troubleshooting
  • Warranty information
  • Price: 186 USD
OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240 OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240 OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240

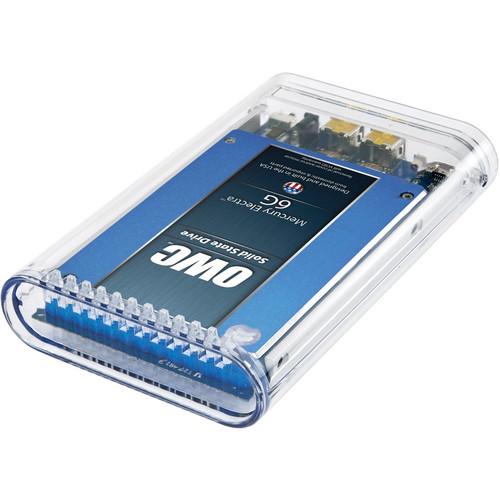

Click to enlarge image

We recommend checking out our discussion threads on the OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240, which address similar problems with connecting and setting up External Drives OWC / Other World Computing.



User manual for the OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240

The user manual for the OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240 provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - External Drives.

The Mercury On-The-Go Pro 240GB 2.5" Solid State Drive from Other World Computing is a portable Solid State Drive with a variety of connection options, including FireWire 800/400 and USB 3.0. This solid state drive is compatible with both Mac and PC machines and is backwards compatible with USB 2.0, making it both compact and versatile. The drive features a fanless design for near silent operation and utilizes the current DuraClass technology with a SandForce processor to deliver high transfer speeds, endurance, performance and power efficiency.
If you own a OWC / Other World Computing external drives and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240Download user manual for OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240
(PDF file, 0.78 MB)
Additional parameters of the OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240:
Specifications
    Bus Interface FireWire 1394B (IEE1394A/B/iLink Compliant), 2 x 9-pin (powered) ports
    USB 3.0 / 2.0 / 1.1 Backwards compatible 9-pin mini "B" port
    Cables All cables included. The USB cable connects to systems with USB 2.0 and USB 3.0. No additional USB cable is needed to connect the drive
    Chipset Oxford 944 and ASMedia 1051e FireWire/USB chipset
    Standard Mechanism 240 GB* OWC Mercury Electra 6G SSD**

    *Total accessible capacity depends on operating environment. Actual capacity depends on defined file settings.
    **OWC reserves the right to replace/upgrade to equivalent/better components.

    Drive Interface SATA (Serial ATA)
    Port Configuration FireWire 800 - 2 x 9-pin powered ports
    USB 3.0 - 1 x 9-pin mini B port
    Max Data Transfer Rate FireWire 800 - 100 MBps
    FireWire 400 - 50 MBps
    USB 3.0 - 500 MBps
    USB 2.0 - 60 MBps
    USB 1.1 - 1.5 MBps
    Port/Interface Bootability eSATA
    FireWire 800
    FireWire 400
    USB 3.0
    USB 2.0
    Drive Format FAT32
    Mac System Requirements Mac OS 8.6 to 9.2.2 compatible, OS X 10.1.x and later. (10.2 or later required for FW800 and USB 3.0)
    eSATA: Macintosh with eSATA interface, either built in or via PCI eSATA card
    FireWire 800: Macintosh with FireWire 800 interface, either built in or via PCI FireWire 800 card
    FireWire 400: Macintosh with FireWire 400 interface, either built in or via PCI FireWire 400 card
    USB 3.0: Macintosh with USB 3.0 interface, either built in or via PCI USB 3.0 card
    USB 2.0: Macintosh with USB 2.0 interface, either built in or via PCI USB 2.0 card
    Windows System Requirements eSATA: PC with eSATA interface, either built in or via PCI eSATA card
    FireWire 800: PC with FireWire 800 interface, either built in or via PCI FireWire 800 card
    FireWire 400: PC with FireWire 400 interface, either built in or via PCI FireWire 400 card
    USB 3.0: PC with USB 3.0 interface, either built in or via PCI USB 3.0 card
    USB 2.0: PC with USB 2.0 interface, either built in or via PCI USB 2.0 card
    Linux Requirements Linux compatible via supported USB and FireWire interfaces
    Power Supply Bus Power via FireWire 800 supported on all models equipped with an available FireWire 800 port either factory stock or via add-on FireWire 800 PCI Card
    Bus Power via FireWire 400 on all models made in 2001 or later via factory ports or any model with add-on FireWire 400 PCI Card
    Bus Power via USB on most computers with USB 3.0 port factory stock
    Optional AC Adapter (available as a separate purchase)

    AC adapter is not required for most applications, provided the computer bus supplies appropriate power.

    Temperature Operating: 32 to 158°F (0 to 70°C)
    Non-Operating: -40 to 185°F(-40 to 85°C)
    Relative Humidity Operating: 8 to 90% (non-condensing)
    Non-Operating: 5 to 95% (non-condensing)
    Shock Operating: 1500 G 0.5 ms
    Non-Operating: 1500 G 0.5 ms
    Vibration Operating: 16 G (16 to 1600 Hz)
    Non-Operating: 16 G (16 to 1600 Hz)
    Dimensions (W x D x H) 3.5 x 5.5 x 1.0" (8.9 x 14 x 2.5 cm)
    Weight 0.61 lb (0.27 kg)
    Packaging Info
    Package Weight 1.3 lb
    Box Dimensions (LxWxH) 7.4 x 6.2 x 2.8"
    The user manual for the OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240 can be downloaded in .pdf format if it did not come with your new external drives, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other OWC / Other World Computing users keep a unique electronic library for OWC / Other World Computing external drivess, where you can use our link to download the user manual for the OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240.

    The user manual lists all of the functions of the OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240, all the basic and advanced features and tells you how to use the external drives. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from OWC / Other World Computing service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the OWC / Other World Computing Mercury On-The-Go Pro OWCMS8U3SSD240. User manuals are also available on the OWC / Other World Computing website under Computers & Solutions - Drives & Storage - External Drives.
