User manual for the OWC / Other World Computing ThunderBay 4 16TB OWCTB2IVT16.0S
The user manual for the OWC / Other World Computing ThunderBay 4 16TB OWCTB2IVT16.0S provides
necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Hard Drive Arrays.

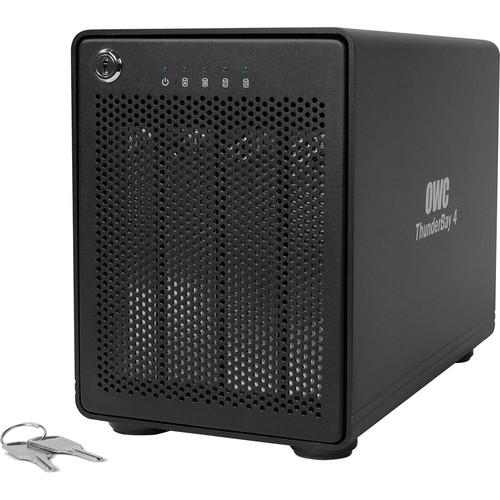

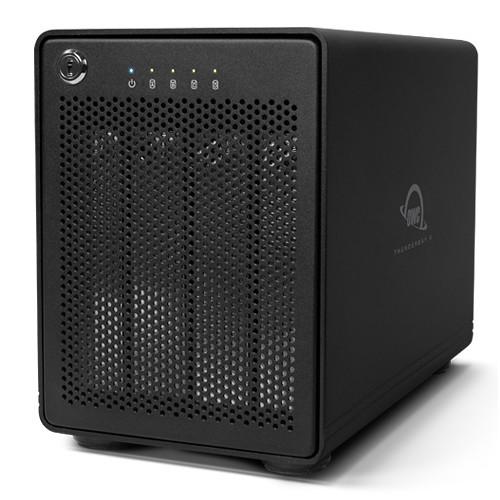

The ThunderBay 4 16TB (4 x 4TB) Four-Bay Thunderbolt RAID Array from OWC / Other World Computing comes with four hard drives preinstalled and connects to Mac systems via Thunderbolt. Behind the lockable front panel are four bays that each house a single 4TB hard drive. These drives feature 32MB of cache memory and spin at 7,200 rpm. Out of the box the drives work in JBOD mode where each drive is handled independently with its own drive letter. These drives can be software reconfigured in different RAID options that offer redundancy, speed, or a combination of both. RAID software is not included.
The ThunderBay 4 comes with two Thunderbolt 2 ports which allow you to daisy-chain up to six devices such as additional ThunderBays, 4K displays, and more. Thunderbolt 2 offers a single 20 Gb/s bi-directional channel that allows you to stream and write 4K video at the same time. To cool the hard drives, OWC uses a quiet 92mm fan. For service, OWC provides a 3-year warranty and also includes level 1 data recovery during the first year.
If you own a OWC / Other World Computing hard drive arrays and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the OWC / Other World Computing ThunderBay 4 16TB OWCTB2IVT16.0S in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the OWC / Other World Computing ThunderBay 4 16TB OWCTB2IVT16.0S:
Specifications
Chipset
Thunderbolt 2
Interface Supported
Thunderbolt 2 (20 Gb/s)
Ports
2 x Thunderbolt 2
RAID / JBOD Support
JBOD: Utilize each of the four drives independently RAID: Use any Software RAID of your choice to setup the ThunderBay 4 for multi-drive performance or data redundancy
Capacity
16 TB
Bays
4
Drives Included
4 x 4 TB Hard Drives 7200 rpm 32 MB of cache per drive
Temperature
Operating: 41.0 to 107.6 F° / 5.0 to 42.0 C° Non-operating: -40.0 to 149.0 F° / -40.0 to 65.0 C°
Humidity
Operating: 8 to 90% RH (Non-condensing) Non-operating: 5 to 95% RH (Non-condensing)
Shock
Operating: 65 G 2 mS Non-operating: 175 G 2 mS
Vibration
Operating: 1.0 G (5 to 300 Hz) Non-operating: 5.0 G (5 to 500 Hz)
Power Supply
Internal UL Listed U.S./International Auto Switching 100 to 240 VAC, 50/60 Hz input as well as 12 V, 16.66 A output Power Supply
Port/Interface Bootability
It can be used as a Thunderbolt startup drive on Macs running Mac OS X
System Requirements
Mac with a Thunderbolt port running OS X 10.9 or later PC running Windows 7 Service Pack 1 or later with a Thunderbolt port (driver required for proper installation) Boot Camp is not supported The Thunderbolt certification process does not include Macs running Windows through Boot Camp
