User manual for OWC / Other World Computing ThunderBay 4 Mini 2TB OWCTB4MJB02T7
- Manufacturer: OWC / Other World Computing
- Basic description and contents of package
- Product classification: Computers & Solutions - Drives & Storage - Hard Drive Arrays
- Safety instructions
- Startup and operation of the hard drive arrays
- Tips for setting up your OWC / Other World Computing
- Settings and expert assistance
- Contact OWC / Other World Computing service
- Troubleshooting
- Warranty information
- Price: 579 USD
Click to enlarge image
|
We recommend checking out our discussion threads on the OWC / Other World Computing ThunderBay 4 Mini 2TB OWCTB4MJB02T7,
which address similar problems with connecting and setting up Hard Drive Arrays OWC / Other World Computing.
|
User manual for the OWC / Other World Computing ThunderBay 4 Mini 2TB OWCTB4MJB02T7
The user manual for the OWC / Other World Computing ThunderBay 4 Mini 2TB OWCTB4MJB02T7 provides
necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Hard Drive Arrays.

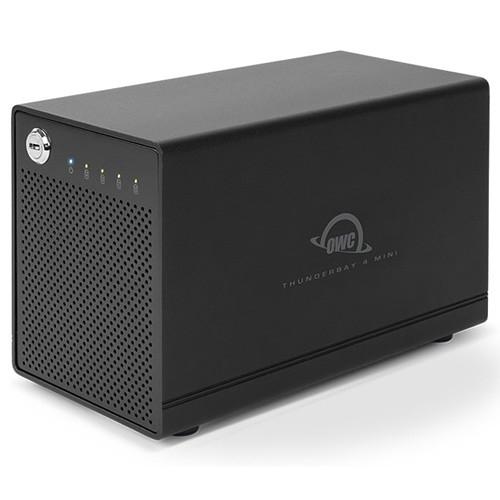

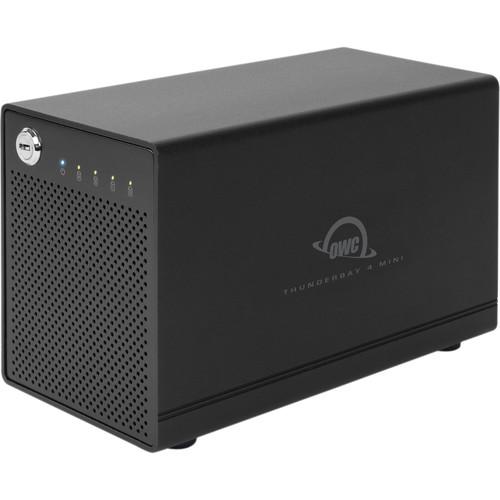

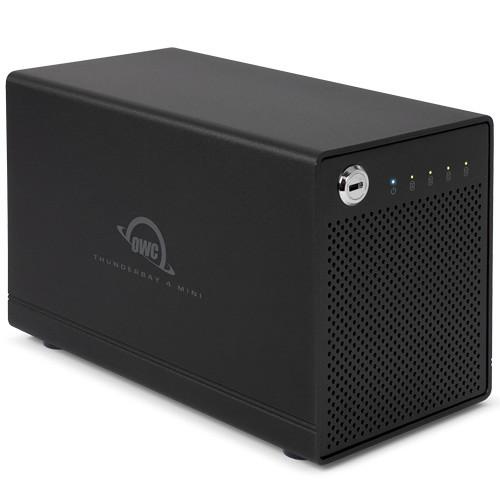

The ThunderBay 4 Mini 2TB (4 x 500GB) Four-Bay Thunderbolt 2 Array from OWC / Other World Computing comes with four hard drives and connects to Mac and Windows systems via Thunderbolt. This array features four 2.5" bays that can each house a 500GB hard drive to provide your system a total storage capacity of 2TB. The drives have a spin speed of 7200 rpm and 32MB of cache memory. When configured in RAID 0, these drives can provide a read speed up to 474 MB/s and a write speed up to 579 MB/s. Furthermore, they can be configured, by using your own RAID software, into different RAID options that offer redundancy, speed, or a combination of both. The ThunderBay 4 Mini allows you to handle demanding applications such as workflows involving 4K, 2K, uncompressed HD, and multi-stream SD videos. Moreover, the Mini's size and weight lets you easily transport your data between production environments.
The ThunderBay 4 Mini is equipped with two Thunderbolt 2 ports that transfer data at speeds of up to 20 Gb/s between your system and the array. It also allows you to daisy-chain up to six devices such as additional ThunderBays, 4K displays, and more. To cool the drives and the array, OWC uses a quiet 60mm fan along with a flow-thru vented design. Additionally, included with the array is a 3.3' (1m) Thunderbolt cable to help you get started.
|
If you own a OWC / Other World Computing hard drive arrays and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the OWC / Other World Computing ThunderBay 4 Mini 2TB OWCTB4MJB02T7 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the OWC / Other World Computing ThunderBay 4 Mini 2TB OWCTB4MJB02T7:
| Chipset | Thunderbolt 2 | | Interface Transfer Rate | Thunderbolt 2 (20 Gb/s)
SATA III 6 Gb/s | | Ports | 2 x Thunderbolt 2 | | Read / Write Speeds | Read: 474 MB/s
Write: 579 MB/s | | Capacity | Total: 2 TB | | Bays | Four | | Drives | 4 x 500 GB hard drives
Rotational Speed: 7200 rpm
Cache Size: 32 MB per drive, 128 MB total | | RAID Levels | JBOD: Utilize each of the four drives independently
RAID: Use any Software RAID of your choice to setup the ThunderBay 4 for multi-drive performance or data redundancy. | | Temperature | Operating: 41.0 to 107.6 F° / 5.0 to 42.0 C°
Non-operating: -40.0 to 149.0 F° / -40.0 to 65.0 C° | | Humidity | Operating: 8 to 90% RH (Non-condensing)
Non-operating: 5 to 95% RH (Non-condensing) | | Shock | Operating: 65 G 2 mS
Non-operating: 175 G 2 mS | | Vibration | Operating: 1.0 G (5 to 300 Hz)
Non-operating: 5.0 G (5 to 500 Hz) | | Power Supply | UL Listed U.S./International Auto Switching 100 to 240 V, 50/60 Hz input, 12 Volt 6.0 A output Power Supply | | Port/Interface Bootability | It can be used as a Thunderbolt startup drive on Macs running Mac OS X. | | System Requirements | Any Mac with a Thunderbolt port running OS X 10.9 or later
Any PC running Windows 7 Service Pack 1 or later with a Thunderbolt port
Driver required for proper installation (3.3 MB ZIP)
Boot Camp is not supported. The Thunderbolt certification process does not include Macs running Windows through Boot Camp. | | Dimension (D x W x H) | 7.6 x 3.8 x 4.6" / 19.3 x 9.7 x 11.7 cm | | Weight | 2.4 lb / 1.1 kg (no drives) | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 10.8 x 10.8 x 5.0" | |
The user manual for the OWC / Other World Computing ThunderBay 4 Mini 2TB OWCTB4MJB02T7 can be downloaded in .pdf
format if it did not come with your new hard drive arrays, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other OWC / Other World Computing users keep a unique electronic library
for OWC / Other World Computing hard drive arrayss,
where you can use our link to download the user manual for the OWC / Other World Computing ThunderBay 4 Mini 2TB OWCTB4MJB02T7.
The user manual lists all of the functions of the OWC / Other World Computing ThunderBay 4 Mini 2TB OWCTB4MJB02T7,
all the basic and advanced features and tells you how to use the hard drive arrays.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from OWC / Other World Computing service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the OWC / Other World Computing ThunderBay 4 Mini 2TB OWCTB4MJB02T7. User manuals are also
available on the OWC / Other World Computing website under Computers & Solutions - Drives & Storage - Hard Drive Arrays.
