User manual OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and AMP-IW4S

Operating instructions and pdf manual for use - OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and AMP-IW4S User manual, User manual OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and AMP-IW4S, OWI, Inc., AMP-IW4S, In-Wall, Four-Source, D


User manual for OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and AMP-IW4S

OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and AMP-IW4S
  • Manufacturer: OWI Inc.
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Mixer/Amplifiers
  • Safety instructions
  • Startup and operation of the mixer/amplifiers
  • Tips for setting up your OWI Inc.
  • Settings and expert assistance
  • Contact OWI Inc. service
  • Troubleshooting
  • Warranty information
  • Price: 252 USD
We recommend checking out our discussion threads on the OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and AMP-IW4S, which address similar problems with connecting and setting up Mixer/Amplifiers OWI Inc..



User manual for the OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and AMP-IW4S

The user manual for the OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and AMP-IW4S provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Mixer/Amplifiers.

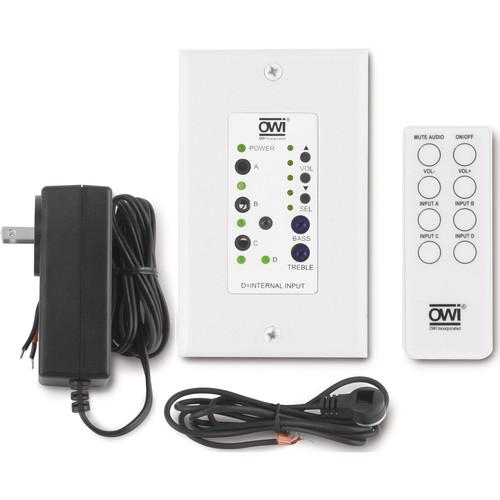

The AMP-IW4S from OWI is an in-wall four-source digital mixer and 15W amplifier suitable for AV and standalone audio-only communication systems. The unit is ideal for most small room applications including education, healthcare, corporate, retail, church, government, entertainment, and sporting facilities. The easy-to-install system fits into a standard 1-gang electrical box and provides full fidelity output capable of driving 1 to 4 speakers.
If you own a OWI Inc. mixer/amplifiers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and AMP-IW4S in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and AMP-IW4SDownload user manual for OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and AMP-IW4S
(PDF file, 19.72 MB)
Additional parameters of the OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and AMP-IW4S:
Architecture Type Architecture: 2 channel mixer amplifier digital class D
Input Connections External Front Audio Input: 3 x 3.5 mm
Internal Audio-In Connector: 3-Pin
Internal Override Connector: 2-Pin
Frequency Response 20 Hz to 20 kHz (±1.5 dB)
THD+N THD + N (Mono-Each Channel):
≤1.0% at 1 kHz rated output
≤0.1% at 1 kHz at 10 W, 4 Ohms
Signal to Noise Ratio 90 dB A-weighted (band pass 20 Hz to 20 kHz)
Channel Separation 60 dB
Dynamic Range 100 dB
Input Sensitivity and Impedance Program: 0.775 V, 10 kOhms electronically balanced, with RF filter (ferrite)
Speaker Output 4 Ohms (optimum) or 8 Ohms
Output Regulation Less than 2 dB, no load to full load at 1 kHz
Automatic "Duck" manual adjust
1 to -50 dB for Mic input
Internal Controls "Duck" Level: Screwdriver adjust
Front Controls Volume Gain (+/-): Soft push buttons
Power Efficiency <80% at 25 W @ 4 Ohms, <85% @ 8 Ohms
<90% at 10 W @ 4 Ohms, <95% @ 8 Ohms
Operating/Storage Temperature Operating: -14 to 104°F / -26 to 40°C
Storage: -4 to 149°F / -20 to 65°C
Compliance FCC, UL, CUL, CE
Power Main Input Power: 100-240 VAC, 50 - 60 Hz
Input Power (to HNB): 24 VDC in-line regulated power supply, 2.5 A
Output Power: 15 W peak per channel at 4 Ohms
Dimensions Decora Plate: 2.8 x 4.5" / 7.0 x 11.4 cm
Internal Circuit Board: 1.5 x 4.1 x 3.0" / 3.8 x 10.5 x 7.5 cm
Wireless Remote: 1.3 x 3.4" / 3.3 x 8.6 cm
Weight Not Specified by Manufacturer
The user manual for the OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and AMP-IW4S can be downloaded in .pdf format if it did not come with your new mixer/amplifiers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other OWI Inc. users keep a unique electronic library for OWI Inc. mixer/amplifierss, where you can use our link to download the user manual for the OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and AMP-IW4S.

The user manual lists all of the functions of the OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and AMP-IW4S, all the basic and advanced features and tells you how to use the mixer/amplifiers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from OWI Inc. service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and AMP-IW4S. User manuals are also available on the OWI Inc. website under Pro Audio - Installation Sound - Mixer/Amplifiers.
