User manual Panasonic 1-Chip 8,500 Lumens DLP Projector PT-DZ870UK

Operating instructions and pdf manual for use - Panasonic 1-Chip 8,500 Lumens DLP Projector PT-DZ870UK User manual, User manual Panasonic 1-Chip 8,500 Lumens DLP Projector PT-DZ870UK, Panasonic, 1-Chip, 8,500, Lumens, DLP, Projector, PT-DZ870UK,


User manual for Panasonic 1-Chip 8,500 Lumens DLP Projector PT-DZ870UK

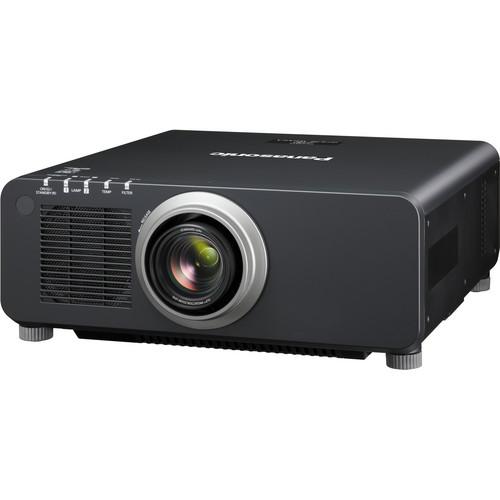

Panasonic 1-Chip 8,500 Lumens DLP Projector PT-DZ870UK
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Panasonic 1-Chip 8,500 Lumens DLP Projector PT-DZ870UK, which address similar problems with connecting and setting up Multimedia Projectors Panasonic.



User manual for the Panasonic 1-Chip 8,500 Lumens DLP Projector PT-DZ870UK

The user manual for the Panasonic 1-Chip 8,500 Lumens DLP Projector PT-DZ870UK provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

High quality, power and versatility characterize this DZ870UK 1-Chip 8,500 Lumen DLP Projector (with Lens) from Panasonic. Delivering a powerful 8500 lumens, it is well suited for use even in fully-lit rooms as well rear projection applications. Housed in a dust-resistant shroud, the optical block will retain its brilliance and clarity for longer periods, as well as reducing maintenance and repairs.
If you own a Panasonic multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic 1-Chip 8,500 Lumens DLP Projector PT-DZ870UK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Panasonic 1-Chip 8,500 Lumens DLP Projector PT-DZ870UKDownload user manual for Panasonic 1-Chip 8,500 Lumens DLP Projector PT-DZ870UK
(PDF file, 21.22 MB)
Additional parameters of the Panasonic 1-Chip 8,500 Lumens DLP Projector PT-DZ870UK:
Specifications
    Image Display
    Display System 1-Chip 0.67" / 17.02 mm DLP
    Native Resolution WUXGA - 1920 x 1080
    Supported Resolutions WUXGA - 1920 x 1080
    HDTV Compatibility 720p @ 50 Hz
    720p @ 60 Hz
    1080i @ 50 Hz
    1080i @ 60 Hz
    1080p @ 24 Hz
    1080p @ 25 Hz
    1080p @ 50 Hz
    1080p @ 60 Hz
    Pixels 2,304,000
    Brightness 8500 Lumens
    Uniformity 90%
    Aspect Ratio 16:10
    Contrast Ratio 10000:1

    Contrast ratio with full on/off, dynamic iris on.

    DLP Link 3D Yes
    Scan Horizontal: 15 - 100 kHz
    Vertical: 24 - 120 Hz
    Lens
    Lens Shift Vertical: +50%
    Horizontal: ±10%
    Throw Ratio 1.7 - 2.4:1
    Projection Size 50 - 600" / 127.00 - 1524.00 cm
    Features
    Keystone Correction Vertical: ± 40°
    Horizontal: ± 15°
    Ceiling Mountable Yes
    Input/Output Connectors
    Inputs/Outputs 1x SDI Video (Input)
    1x HDMI Video (Input)
    1x DVI-D Video (Input)
    1x 5-BNC Audio/Video (Input)
    1x 15-pin VGA Type-A Female (Input)
    1x BNC Video (Input/Output)
    1x BNC Video (Output)
    1x BNC Composite Video (Input)
    1x 9-pin VGA Type-A Female (Input)
    1x 9-pin VGA Type-A Male (Output)
    1x M3 Remote (Input)
    1x M3 Remote (Output)
    1x 9-pin VGA Remote (Input)
    1x Ethernet LAN (Input)
    General
    Lamp (Bulb) 2x UHM

    Use dual-lamp optical system's alternating lamp operation function for continuous use. Projector cannot be operated continuously 24/7 in dual-lamp.

    Watts 420 W
    Fan Noise Eco Mode: 35 dB
    Normal Mode: 40 dB
    Maximum Pixel Clock 162 MHz
    Remote Control Yes
    Power Requirements 120-240 VAC, 50/60 Hz
    Input Current 5.2 A
    Heat Dissipation 3516 BTU

    without light 3,400 BTU/hour

    Power Consumption Normal Mode: 1030 W
    Standby Mode: 3 W
    Standby Mode (Eco): .3 W
    Temperature Operating
    32 to 113°F (0 to 45°C)
    Humidity: 10 - 80%

    No condensation

    Dimensions (WxHxD) 19.6 x 7.9 x 21.9" / 498.0 x 200.0 x 556.0 mm approximately, with supplied lens

    Height with legs at shortest position

    Weight 40.34 lb / 18.3 kg approximately, with supplied lens
    Packaging Info
    Package Weight 53.25 lb
    Box Dimensions (LxWxH) 29.0 x 26.5 x 14.5"
    The user manual for the Panasonic 1-Chip 8,500 Lumens DLP Projector PT-DZ870UK can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic multimedia projectorss, where you can use our link to download the user manual for the Panasonic 1-Chip 8,500 Lumens DLP Projector PT-DZ870UK.

    The user manual lists all of the functions of the Panasonic 1-Chip 8,500 Lumens DLP Projector PT-DZ870UK, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Panasonic 1-Chip 8,500 Lumens DLP Projector PT-DZ870UK. User manuals are also available on the Panasonic website under A/V Presentation - Projectors - Multimedia Projectors.
