User manual Panasonic AG-AC90AEN AVCCAM Camcorder (PAL) AG-AC90AEN

Operating instructions and pdf manual for use - Panasonic AG-AC90AEN AVCCAM Camcorder (PAL) AG-AC90AEN User manual, User manual Panasonic AG-AC90AEN AVCCAM Camcorder (PAL) AG-AC90AEN, Panasonic, AG-AC90AEN, AVCCAM, Camcorder, PAL, AG-AC90AEN,

User manual for Panasonic AG-AC90AEN AVCCAM Camcorder (PAL) AG-AC90AEN

Panasonic AG-AC90AEN AVCCAM Camcorder (PAL) AG-AC90AEN
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: Professional Video - Professional Camcorders - PAL Camcorders
  • Safety instructions
  • Startup and operation of the pal camcorders
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Panasonic AG-AC90AEN AVCCAM Camcorder (PAL) AG-AC90AEN, which address similar problems with connecting and setting up PAL Camcorders Panasonic.


User manual for the Panasonic AG-AC90AEN AVCCAM Camcorder (PAL) AG-AC90AEN

The user manual for the Panasonic AG-AC90AEN AVCCAM Camcorder (PAL) AG-AC90AEN provides necessary instructions for the proper use of the product Professional Video - Professional Camcorders - PAL Camcorders.

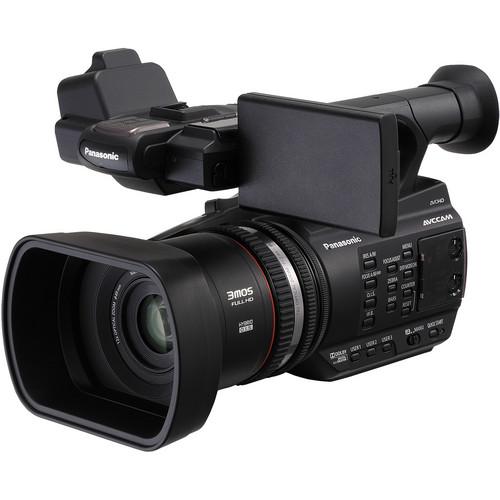

The Panasonic AG-AC90AEN AVCCAM Camcorder is designed to be compatible with European broadcast standards and features three 1/4.7" sized MOS sensors (3MOS), with 2.19MP each to capture Full HD 1920x1080 resolution video at up to 50p. It is an update to the AG-AC90A, offering additional 720p60 and 576i/50 3.5Mbps recording modes, as well as other enhancements such as the ability to copy content from one SD card to another in-camera. Features inherited from the AG-AC90 include the 12x zoom lens with a 35mm equivalent focal range of 29.8 to 357.6mm, Nano Surface Coating for reduced ghosting and lens flares, and three manual control rings for focus, zoom, and iris.

The AG-AC90AEN records Full HD 1920x1080 video in a variety of frame rates using the AVCHD codec, including 50p, 50i, and 25p. You can also record SD video, including a low 3.5Mbps bit-rate mode for easy uploading to cloud servers. Date and time stamps can be super-imposed over the video, a feature useful for law enforcement and legal depositions.

Two SD memory card slots are available for expanded memory or simultaneous recording to both cards for an instant backup. The camcorder is compatible with SD, SDHC, and SDXC card up to 64GB, with support for ultra high-speed UHS-I speed class 1. It is also compatible with optional Eye-Fi SD cards for Wi-Fi transfer to your mobile device A five-axis image stabilizer improves stabilization for handheld shooting, and 4x pixel shifting technology helps to create a sharper image. An Intelligent 25x digital zoom function makes automatic adjustments of edge, gradation, and detail.

In addition to a built-in microphone, two XLR audio inputs provide an interface for professional grade, external microphones. Audio Channel 1 and Channel 2 feature individual level controls and input selection, including 48V phantom power supply on/off.
If you own a Panasonic pal camcorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic AG-AC90AEN AVCCAM Camcorder (PAL) AG-AC90AEN in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Panasonic AG-AC90AEN AVCCAM Camcorder (PAL) AG-AC90AEN:
Specifications
    Sensor
    Sensor Type 3MOS (with backside illumination)
    Sensor Size 1/4.7"
    Sensor Resolution Approx. 8,040K (Approx. 2,680K x 3)
    Minimum Illumination Approx. 3 lux (iA mode, auto slow shutter ON)
    Lens
    Focal Length 2.84 - 34.1mm
    35mm Equivalent Focal Length 29.8 - 383.7.6mm (16:9)
    Zoom Ratio 12x optical
    25x i.Zoom
    2x, 5x, 10x digital zoom
    Aperture f/1.5 to f/2.8
    Lens Coating Nano Surface Coating
    Control Rings 3 (focus, zoom, iris)
    Filter Thread 49 mm
    Image Stabilization Optical (hybrid optical image stabilizer, active mode)
    Recording Specifications
    Signal System PAL
    Video Format AVCHD version 2.0 compliant, AVCHD Progressive
    Compression Video: MPEG-4 AVC/H.264
    Audio: Dolby Digital (5.1ch/2 ch)
    Still Picture: JPEG (based on Exif 2.2 standard)
    Recording Modes PS Mode: 1920x1080 50p (25 Mbps average; 28 Mbps max)
    PH Mode: 1920x1080 50i/25p (21 Mbps average; 24 Mbps max)
    HA Mode: 1920x1080 50i (17 Mbps average)
    HE Mode: 1440x1080 50i (6 Mbps average)
    SA Mode: 720x576 50i (9 Mbps average)
    Maximum Recording Time With two 64GB SDXC memory cards:

    PS Mode: Approx. 10 hours 40 minutes
    PH Mode: Approx. 12 hours
    HA Mode: Approx. 16 hours
    HE Mode: Approx. 48 hours
    SA Mode: Approx. 33 hours

    Note: The maximum continuous recording time is 6 hours regardless of the recording mode.
    Shutter Speed 1/25 sec. to 1/2000 sec. (auto slow shutter ON)
    1/50 sec. to 1/2000 sec. (auto slow shutter OFF)
    at 50i/50p/25p motion picture recording, manual mode
    Audio Channels CH1, CH2
    Audio Format Dolby Digital (5.1 / 2 ch)
    Still Capture 3 MP still photographs (can be captured during video recording)
    Interface
    Recording Media 2 x SD/SDHC/SDXC (compatible with UHS-I Speed Class 1)
    Input/Outputs 1 x HDMI output (1080p/1080i/576p)
    1 x AV Multi output (D-connector, component video, composite video and audio 2 channel)
    1 x USB 2.0
    1 x 2.5mm remote terminal for zoom and REC START/STOP
    1 x 3.5mm remote terminal for iris and focus
    2 x XLR audio input (MIC/LINE/+48V selectable)
    General Specifications
    LCD Monitor 3.5" (8.8 cm) touchscreen
    1,152 K dot resolution
    270° rotation
    Viewfinder 0.24" LCOS color EVF with 263 K dot resolution
    Supply Voltage DC 12V (when the AC adaptor is used)
    DC 7.2V (when the battery is used)
    Power Consumption 12.9 W
    Operating Temperature 32 to 104° F (0 ~ 40° C)
    Operating Humidity 10 to 80% (no condensation)
    Dimensions (WxHxD) Excluding protrusions: 6.30 x 7.68 x 13.78" (16.0 x 19.5 x 35.0 cm)
    Weight Main Unit Only: Approx. 3.3 lb (1.50 kg)
    With Battery and an SD Card: Approx. 3.9 lb (1.78 kg)
    Packaging Info
    Package Weight 8.2 lb
    Box Dimensions (LxWxH) 16.5 x 11.3 x 10.0"
    The user manual for the Panasonic AG-AC90AEN AVCCAM Camcorder (PAL) AG-AC90AEN can be downloaded in .pdf format if it did not come with your new pal camcorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic pal camcorderss, where you can use our link to download the user manual for the Panasonic AG-AC90AEN AVCCAM Camcorder (PAL) AG-AC90AEN.

    The user manual lists all of the functions of the Panasonic AG-AC90AEN AVCCAM Camcorder (PAL) AG-AC90AEN, all the basic and advanced features and tells you how to use the pal camcorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Panasonic AG-AC90AEN AVCCAM Camcorder (PAL) AG-AC90AEN. User manuals are also available on the Panasonic website under Professional Video - Professional Camcorders - PAL Camcorders.
