User manual for the Panasonic AG-HMX100 Digital AV Mixer AGHMX100PJ
The user manual for the Panasonic AG-HMX100 Digital AV Mixer AGHMX100PJ provides
necessary instructions for the proper use of the product Professional Video - Studio & EFP Equipment - Production Switchers.

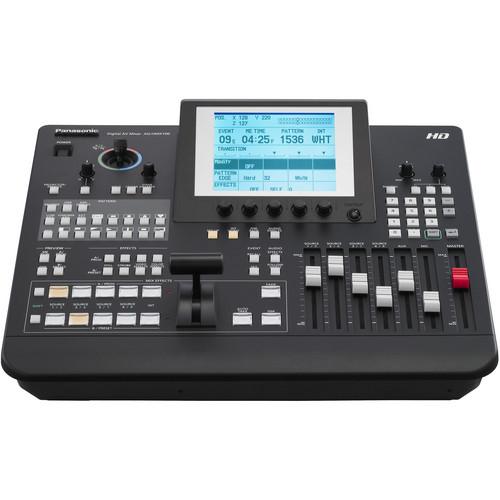

The Panasonic AG-HMX100 Digital AV Mixer consists of a multi-format video switcher, an audio mixer, frame synchronizer, and digital effector and supports 1080i/720p HD and SD formats. To ensure broadcast-grade images, it offers 12-bit internal processing speed and full 4:2:2:4 digital component. The AV mixer includes a wipe pattern that lets you switch between 16:9 and 4:3 aspect ratios. It features 7 video inputs with PC image support and 6 video outputs. Using the intuitive control panel, you can choose from over 100 wipe patterns and mixes with effects like chroma keying, luminance keying, DSK, and fading with M/E and DSK preview as well as built-in digital effects including mosaic, defocus, monocolor, still, strobe, multi-strobe, etc.
Up to 10 audio sources, which include AUX and MIC input, can be mixed using a fader control. It also provides output via PGM, PVW, and AUX terminals and XLR (L/R) and pin terminal (L/R) analog outputs. Audio effects include pan, 3-band equalizer, voice changer (pitch/level), and mute effects. Audio levels are displayed as a multi-view overlay on the LCD screen. Using the Multi-Viewer function, you can display video sources, audio levels, and a waveform monitor in multiple windows on a single display.
A large LCD panel with a 5-column, 3-row matrix menu automatically displays setting items depending on the operating status. A rotary switch is also included for choosing from settings with several selections.
Supporting switched transmission of 3D camera images, the AG-HMX100 Digital AV Mixer operates as a 3D video switcher with dual SDI signal inputs from 3D cameras with only the switcher function operational while in 3D mode. Simul and Side-by-Side 3D output methods are supported by the mixer, and up to four 3D cameras can be switched when 2 AG-HMX100 Digital AV Mixers are connected.
For audio-visual applications, the Digital AV Mixer can be connected to Panasonic projectors via DVI-D, HD-SDI and RS-232C connections to control the projector’s power and shutter settings. Additional features that offer ease of operation include pattern presets, event memory, key learn, joystick controller, and a numerical keypad. Offering a flexible user interface, the AG-HMX100 Digital AV Mixer is ideal for use in schools, hotels, government facilities, corporations, public access channels, event producers, and in mobile or portable applications.
If you own a Panasonic production switchers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Panasonic AG-HMX100 Digital AV Mixer AGHMX100PJ in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
1x BNC, 75ohm Composite signal sync: 0.286 V [p-p] NTSC /0.3 V [p-p] PAL Burst: 0.286 V [p-p] NTSC /0.3 V [p-p] PAL
Audio Input
4x XLR (L and R), 4/0/-3 dBm switchable, balanced, 10k
4x SDI on BNC embedded audio: SD serial digital signal SMPTE259M-C/272M-A and ITU-R BT.656-4 standards HD serial digital signal SMPTE292M/296M/299M standards
2x HDMI type A embedded audio
AUX Input
1-pin jack (L and R), -10 dBv, High impedance, unbalanced
1x SDI on BNC embedded audio: SD serial digital signal SMPTE259M-C/272M-A and ITU-R BT.656-4 standards HD serial digital signal SMPTE292M/296M/299M standards
1-pin jack (L and R), -10 dBV, low impedance, unbalanced
Preview (PVW) Output
1x SDI on BNC embedded audio: SD serial digital signal SMPTE259M-C/272M-A and ITU-R BT.656-4 standards HD serial digital signal SMPTE292M/296M/299M standards
Aux
1x SDI on BNC embedded audio: SD serial digital signal SMPTE259M-C/272M-A and ITU-R BT.656-4 standards HD serial digital signal SMPTE292M/296M/299M standards
Headphones
1 M6, 8ohm, stereo, unbalanced, –infinity to –20 dBu
