User manual for the Panasonic AG-HPX370 Series P2 HD Camcorder AGHPX370PJ
The user manual for the Panasonic AG-HPX370 Series P2 HD Camcorder AGHPX370PJ provides
necessary instructions for the proper use of the product Professional Video - Professional Camcorders - Camcorders.

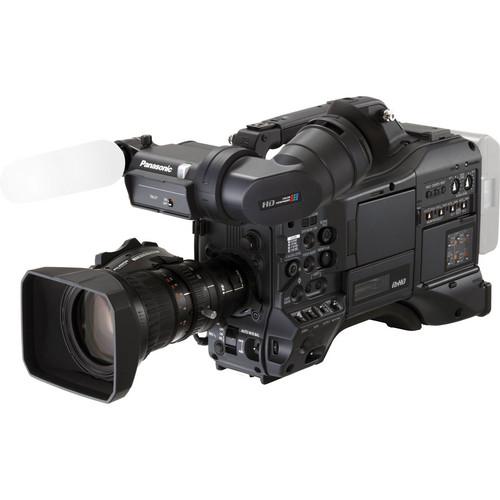

The Panasonic AG-HPX370 Series P2 HD Camcorder is an affordable 1/3" ENG camcorder that offers full-raster 4:2:2 sampling using the professional AVC-Intra HD codec. Equally at home recording 100Mbps DVCPRO HD, the AG-HPX370 brings new levels of lowlight performance to its three 1/3" CMOS sensors, utilizing Ultra Luminance Technology to provide the sensitivity and image quality of larger 1/2" imagers.
With two HD/SD-SDI outputs, two P2 media slots, a 17x Fujinon HD lens, and one SD memory card slot (for scene files and user settings), the AG-HPX370 is a top-level image capture device that also offers a high degree of versatility. It can accommodate both 1/3" and 2/3" lenses, it shoots in standard definition as well as HD, and with an optional remote control unit it can be used as a studio camera (aided by the included timecode and genlock functionality).
The variety of resolutions (1080i/p, 720p, 480i/p), frame rates (12-60p), image settings, and recording modes--not to mention the well-known advantages of a P2 workflow--all provide the flexibility, functionality, and sheer image quality that have made Panasonic's professional camcorders the workhorses of so many production environments.
|
If you own a Panasonic camcorders and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Panasonic AG-HPX370 Series P2 HD Camcorder AGHPX370PJ in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Panasonic AG-HPX370 Series P2 HD Camcorder AGHPX370PJ:
| Signal System | AVC-Intra 100, AVC-Intra 50, DVCPRO HD, DVCPRO 50, DVCPRO/DV
59.94Hz: 1080/59.94i, 1080/29.97p, 1080/29.97pN, 1080/23.98p, 1080/23.98pA, 1080/23.98pN, 720/59.94p, 720/29.97p, 720/29.97pN, 720/23.98p, 720/23.98pN, 480/59.94i, 480/29.97p, 480/23.98p, 480/23.98pA 50Hz: 1080/50i, 1080/25p, 1080/25pN, 720/50p, 720/25p, 720/25pN, 576/50i, 576/25p | | Image Device | 1/3" 2.2MP Progressive MOS Image Sensor x3 | | Lens | Fujinon 1/3" Bayonet Mount (17x Optical) | | Signal-to-Noise Ratio | Not Specified By Manufacturer | | Horizontal Resolution | >1000 TV Lines (Center) | | Sensitivity | F11 (2000 lx, 3200K, 89.9% reflect, 1080/50i)
F10 (2000 lx, 3200K, 89.9% reflect, 1080/59.94i) | | Minimum Illumination | 0.4 lux (F/1.6, Gain 24dB, Shutter 1/30) | | Vertical Smear | Not Applicable | | Built-in Filters | ND: Clear, 1/4, 1/16, 1/64 | | LCD Monitor | 3.2" Widescreen Color LCD (921,000 Pixels) | | Viewfinder | 0.45" Widescreen Color (1.23 MegaPixels) | | Scan Matching | Yes
Different Ranges for Different Record Modes | | Memory Card Slot | (2) P2 Card Slots for Video
(1) SD Memory Card Slot for Scene-File Sharing | | Shutter Speed Range | 1/6 to 1/2000 sec (Range depends on Record Mode) | | Gain Selection | -3dB to +24dB Range | | Maximum Recording Time | AVC-Intra 100/DVCPRO HD
Approx. 16 min. with a 16GB P2 card
Approx. 32 min. with a 32GB P2 card
Approx. 64 min. with a 64GB P2 card
AVC-Intra 50/DVCPRO50
Approx. 32 min. with a 16GB P2 card
Approx. 64 min. with a 32GB P2 card
Approx. 128 min. with a 64GB P2 card DVCPRO/DV
Approx. 64 min. with a 16GB P2 card
Approx. 128 min. with a 32GB P2 card
Approx. 256 min. with a 64GB P2 card | | Audio Dynamic Range | Not Specified By Manufacturer | | Audio Signal Format | 16 bit/48kHz 4-Channels | | Audio Frequency Response | 20Hz to 20kHz | | Signal to Noise Ratio | Not Specified By Manufacturer | | Input and Output Connectors | Composite: BNC (x1 Output)
HD/SD-SDI: BNC (x2 Output)
Mic/Audio: XLR, 3-Pin Female (x2 Input, Ch1/Ch2)
Audio Out: Pin Jack (x2 Output, Ch1/Ch2)
Earphone: 3.5mm Stereo Mini Jack (x1 Output)
Genlock: BNC (x1 Input)
Timecode: BNC (x1 Input, x1 Output)
FireWire: 6-Pin (x1 Input/Output)
DC Power: XLR 4-Pin (x1 Input, x1 Output)
Remote: 10-Pin
Lens: 12-Pin
USB 2.0: Type-A/B 4-Pin (Host/Device) | | Power Requirements | 12VDC (11-17V) | | Power Consumption | 19W | | Operating Temperature | 32-104°F (0-40°C) | | Dimensions (WxHxD) | 6.7 x 6.9 x 21.6" (24.6 x 25.1 x 54.9cm) | | Weight | 11 lbs (5kg) | | Package Weight | 19.8 lb | | Box Dimensions (LxWxH) | 23.0 x 17.0 x 15.5" | |
The user manual for the Panasonic AG-HPX370 Series P2 HD Camcorder AGHPX370PJ can be downloaded in .pdf
format if it did not come with your new camcorders, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Panasonic users keep a unique electronic library
for Panasonic camcorderss,
where you can use our link to download the user manual for the Panasonic AG-HPX370 Series P2 HD Camcorder AGHPX370PJ.
The user manual lists all of the functions of the Panasonic AG-HPX370 Series P2 HD Camcorder AGHPX370PJ,
all the basic and advanced features and tells you how to use the camcorders.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Panasonic service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Panasonic AG-HPX370 Series P2 HD Camcorder AGHPX370PJ. User manuals are also
available on the Panasonic website under Professional Video - Professional Camcorders - Camcorders.
