User manual Panasonic AG-MDR15 Memory Card Portable Recorder AGMDR15

Operating instructions and pdf manual for use - Panasonic AG-MDR15 Memory Card Portable Recorder AGMDR15 User manual, User manual Panasonic AG-MDR15 Memory Card Portable Recorder AGMDR15, Panasonic, AG-MDR15, Memory, Card, Portable, Recorder, AGMDR


User manual for Panasonic AG-MDR15 Memory Card Portable Recorder AGMDR15

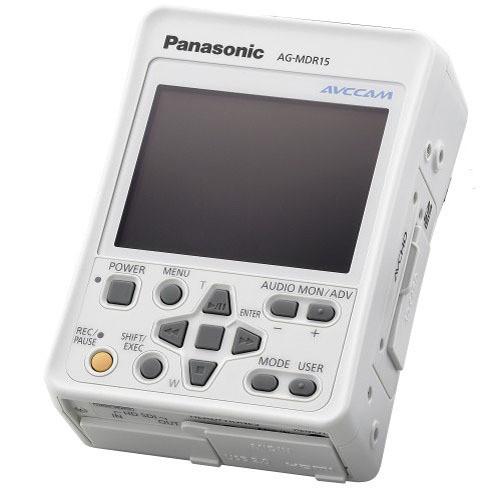

Panasonic AG-MDR15 Memory Card Portable Recorder AGMDR15
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: Professional Video - Recorders & Duplication - Solid State/HDD Recorders
  • Safety instructions
  • Startup and operation of the solid state/hdd recorders
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Panasonic AG-MDR15 Memory Card Portable Recorder AGMDR15, which address similar problems with connecting and setting up Solid State/HDD Recorders Panasonic.



User manual for the Panasonic AG-MDR15 Memory Card Portable Recorder AGMDR15

The user manual for the Panasonic AG-MDR15 Memory Card Portable Recorder AGMDR15 provides necessary instructions for the proper use of the product Professional Video - Recorders & Duplication - Solid State/HDD Recorders.

The Panasonic AG-MDR15 Memory Card Portable Recorder is ideal for surgical image recording of a wide variety of surgical procedures, and is also suitable for distance learning, education, and medical training use. It is compliant with the Medical Electrical Equipment Standards.
If you own a Panasonic solid state/hdd recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic AG-MDR15 Memory Card Portable Recorder AGMDR15 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Panasonic AG-MDR15 Memory Card Portable Recorder AGMDR15:
Video
Recording Format AVCHD
Compression MPEG-4 AVC / H.264
Recording Media SD Memory Card : 512 MB, 1 GB, 2 GB (FAT12, FAT16)
SDHC Memory Card : 4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 32 GB (FAT32)
Recording Video Format (59.94 Hz] PH mode: 1080/60i, 1080/30p (over 60i), 1080/24p*3 (Native), 720/60p, 720/30p (over 60p) and 720/24p (Native) PM mode: 720/60p
HA, HG and HE mode: 1080/60i only

[50 Hz] PH mode: 1080/50i, 1080/25p (over 50i),
720/50p and 720/25p (over 50p) PM mode: 720/50p
HA, HG and HE mode: 1080/50i only
Transmission Rate PH mode: Approximately 21 Mbps (VBR, Max. 24 Mbps)
PM mode: Approximately 8 Mbps (VBR)
HA mode: Approximately 17 Mbps (VBR), HG mode: Approx. 13 Mbps (VBR)
HE mode: Approximately 6 Mbps (VBR)
Recording Time Approximately 180 minutes (In PH mode with 1920 x 1080 pixels and using a 32 GB SDHC Memory Card)
Video Signals [59.94 Hz] 1080/60i, 720/60p
[50 Hz] 1080/50i, 720/50p
SDI Input HD SDI Input, BNC x 1, 0.8 V[p-p], 75 Ω
SDI Output HD SDI/SD SDI Output, BNC x 1, 0.8 V[p-p], 75 Ω
HDMI Output HDMI Output x 1 (HDMI Type A terminal), [59.94 Hz] 1080/60i, 720/60p, 480/60p [50 Hz] 1080/50i, 720/50p, 576/50p (Not compatible with VIERA Link)
Other 20-pin dedicated terminal (connection with the AG-MDC10G)
Audio
Compression Recording/Playback: Dolby Digital/2-channel
Sampling Frequency 48 kHz
Quantization 16 bit
Audio I/O External Microphone Input: -70 dBV (Mic sensitivity: -50 dB equivalent, 0 dB=1 V/Pa 1 kHz)
Stereo mini jack (3.5 mm diameter) (Not compatible with plug-in power microphone)

HDMI Output: 2 ch (Linear PCM), 5.1 ch (Dolby Digital)

Headphone: Stereo mini jack (3.5 mm diameter) x 1, 100 Ω
-22 dBV (with 32 Ω load)

Built-in Speaker: 20 mm (round) x 1

Other Connectors USB: Type mini B connector (compliant with USB ver. 2.0)
Camera Remote: Super mini jack (2.5 mm diameter) x 1, for zoom and rec start/stop operations
Monitor
LCD Monitor 3.5" (8.89 cm), LCD color monitor, Approximately 210,000 pixels
General
Power Supply DC 7.3 V (using with AC adapter)
Consumption Current 1.7 A (when the optional AG-MDC10G camera head is connected)
0.9 A (in standalone condition)
Operating Temperature 32 to 104°F (0 to 40°C)
Operating Humidity 10 to 80 % (No condensation)
Dimensions (W x H x D) 3.75 x 2.12 x 5.25" (96 x 52.6 x 133 mm), Excluding the projection
Weight Approximately 1.28 lb (580 g)
Packaging Info
Package Weight 2.8 lb
Box Dimensions (LxWxH) 10.8 x 8.3 x 5.8"
The user manual for the Panasonic AG-MDR15 Memory Card Portable Recorder AGMDR15 can be downloaded in .pdf format if it did not come with your new solid state/hdd recorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic solid state/hdd recorderss, where you can use our link to download the user manual for the Panasonic AG-MDR15 Memory Card Portable Recorder AGMDR15.

The user manual lists all of the functions of the Panasonic AG-MDR15 Memory Card Portable Recorder AGMDR15, all the basic and advanced features and tells you how to use the solid state/hdd recorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Panasonic AG-MDR15 Memory Card Portable Recorder AGMDR15. User manuals are also available on the Panasonic website under Professional Video - Recorders & Duplication - Solid State/HDD Recorders.
