User manual for the Panasonic AW-HE130 HD Integrated Camera (Black) AW-HE130KPJ

The user manual for the Panasonic AW-HE130 HD Integrated Camera (Black) AW-HE130KPJ provides necessary instructions for the proper use of the product Professional Video - PTZ Cameras.

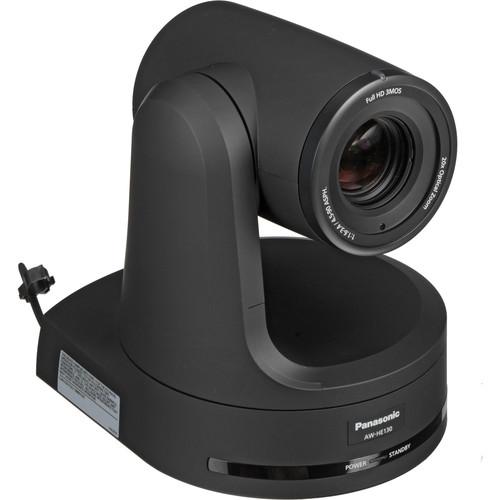

The black AW-HE130 HD Integrated Camera from Panasonic is a high-definition, remotely controllable PTZ camera for indoor use. Three 1/2.86 MOS sensors allow this camera to deliver up to four channels of sharp, HD video output with a resolution of up to 1080/60p, in addition to 3G-SDI and HDMI. The AW-HE130 also supports POE+: with only one LAN cable you can power and control the camera and video output. The camera is equipped with 20x zoom, a maximum f/1.6 aperture, and an 1.4x digital extender that can increase the focal length. A built-in neutral density filter and DRS (Dynamic Range Stretch) work in conjunction with 12 color axes and 3 skin tone axes to give you even more control of your resulting images.
If you own a Panasonic ptz cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic AW-HE130 HD Integrated Camera (Black) AW-HE130KPJ in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Panasonic AW-HE130 HD Integrated Camera (Black) AW-HE130KPJ:
Specifications
    Camera
    Imaging Sensor 1/2.86"-type Full-HD 3MOS
    Lens Motorized 20 zoom, F1.6 to F3.4 (f=4.5 mm to 90 mm; 35 mm equivalent: 32.13 mm to 642.5 mm)
    Focus Distance Entire Zooming Range: 2.62' (800 mm)
    Wide End: 1.31' (400 mm)
    Color Separation Optical System 3MOS
    Minimum Illumination 2 lx (50 %, F1.6, 36 dB)
    Horizontal Resolution 1000 TV lines Typ (center area)
    Gain Selection Auto, 0 dB to 36 dB
    Frame Mix 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
    Electronic Shutter Speed 59.94p/59.94i: 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
    29.97p: 1/30, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
    23.98p: 1/24, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
    50p/50i: 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
    25p: 1/25, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000
    Synchro Scan 59.94 Hz: 60.15 Hz to 642.21 Hz
    50 Hz: 50.15 Hz to 535.71 Hz
    Gamma HD, SD, FILMLIKE1, FILMLIKE2, FILMLIKE3
    0.30 to 0.75 (manual setting)
    White Balance AWB A, AWB B, ATW, 3200 K, 5600 K, VAR (2000 K to 15000 K)
    Chroma Variability: OFF, -99 % to 40 %
    Scene File Scene1, Scene2, Scene3, Scene4
    Output Formats 1080/59.94p, 1080/29.97p, 1080/23.98p, 1080/59.94i, 1080/29.97PsF, 1080/23.98PsF, 720/59.94p, 480/59.94p(i), 1080/50p, 1080/25p, 1080/50i, 80/25PsF, 720/50p, 576/50p(i)
    Synchronization System Internal/External synchronization (BBS/Tri-level sync)
    Pan/Tilt Unit
    Installation Stand-alone (desktop) or suspended (hanging)
    Pan/Tilt Control IP connecting cable
    With Hub: LAN cable (category 5e or above, straight cable), max. 328' (100 m)
    Without Hub: LAN cable (category 5 or above, crossover cable), max. 328' (100 m)

    RP connecting Cable
    LAN cable (category 5 or above, straight cable), max. 3280' (1000 m)
    RS-422A, AW series protocol
    Pan/Tilt Speed 0.08 to 60°/sec
    Panning Range ±175°
    Tilting Range -30° to 210°
    Quietness NC35 or less
    Computer Requirements
    CPU Intel Core 2 DUO 2.4 GHz or more
    Memory Windows: 1 GB or more (2 GB or more for 64-bit editions of Microsoft Windows 8.1, 8, and 7)
    Mac: 2 GB or more
    Network Function 10BASE-T or 100BASE-TX port × 1
    Image Display Resolution: 1024 × 768 pixels or more
    Color Generation: True Color 24-bit or more
    Supported Operating Systems Windows: Microsoft Windows 8.1 Pro 64-bit / 32-bit, Windows 8 Pro 64-bit / 32-bit, Windows Professional SP1 64-bit / 32-bit
    Mac: OS X 10.9, OS X 10.8, OS X 10.7
    iPhone, iPad, iPod Touch: iOS X 7.1
    Android: Android OS
    Supported Web Browsers Windows: Windows Internet Explorer 11.0, 10.0, 9.0, and 8.0
    Mac: Safari 7.0.2 and 6.1.2
    iPhone, iPad, iPod Touch: Standard web browsers
    Android: Standard web browsers
    Other CD-ROM drive (for using the operating instructions and various software)
    Adobe Reader (for viewing the operating instructions on the CD-ROM)
    General
    Power Requirements 12 VDC (AC adaptor supplied)
    42 - 57 VDC (PoE+ power supply)
    Current Consumption 1.8 A (AC adaptor supplied)
    0.6 A (PoE+ power supply)
    Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
    Storage Temperature -20 to 50°C (-4 to 122°F)
    Humidity 20 % to 90 % (no condensation)
    Video Formats HDMI
    HD / SD SDI: SMPTE424 / SMPTE292 / SMPTE259 standards 75 ohms
    NTSC / PAL 1.0 V p-p / 75 ohms
    Connectors Input:
    RJ-45, IP control, RS-422
    3.5 mm stereo mini jack, mic/line
    BNC, 12 VDC G/L Black Burst Sync
    Output:
    HDMI (HDCP and Viera Link not supported)
    BNC, HD/SD SDI
    BNC, video
    Mic/Line Input Voltage: 2.5 V ±0.5 V
    Microphone Sensitivity: -40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz) approximately
    Input Level: -10 dBV ±3 dBV approximately
    Controller Supported AW-RP120, AW-RP50, AK-HRP200
    Dimensions 7.1 x 9 x 9.2" (180 x 228 x 234 mm), excluding protrusions, cable cover, and direct ceiling mount bracket
    Weight Approx. 3.1 kg (6.83 lb), including mount bracket
    Packaging Info
    Package Weight 11.35 lb
    Box Dimensions (LxWxH) 16.0 x 13.3 x 12.5"
    The user manual for the Panasonic AW-HE130 HD Integrated Camera (Black) AW-HE130KPJ can be downloaded in .pdf format if it did not come with your new ptz cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic ptz camerass, where you can use our link to download the user manual for the Panasonic AW-HE130 HD Integrated Camera (Black) AW-HE130KPJ.

    The user manual lists all of the functions of the Panasonic AW-HE130 HD Integrated Camera (Black) AW-HE130KPJ, all the basic and advanced features and tells you how to use the ptz cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Panasonic AW-HE130 HD Integrated Camera (Black) AW-HE130KPJ. User manuals are also available on the Panasonic website under Professional Video - PTZ Cameras.
