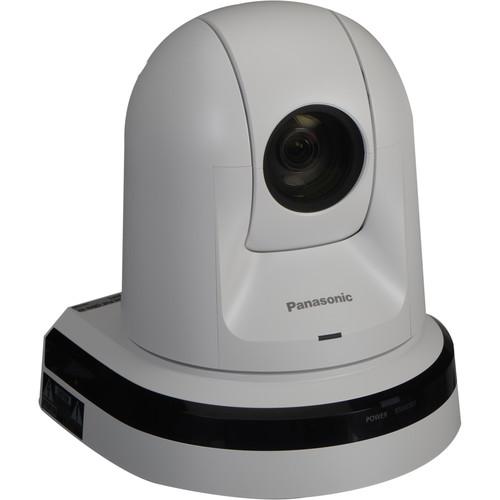

Click to enlarge image
We recommend checking out our discussion threads on the Panasonic AW-HE40HW PTZ Camera with HDMI Output AW-HE40HWPJ,
which address similar problems with connecting and setting up PTZ Cameras Panasonic.
User manual for the Panasonic AW-HE40HW PTZ Camera with HDMI Output AW-HE40HWPJ
The user manual for the Panasonic AW-HE40HW PTZ Camera with HDMI Output AW-HE40HWPJ provides
necessary instructions for the proper use of the product Professional Video - PTZ Cameras.
The white Panasonic AW-HE40HW PTZ Camera with HDMI Output features a 1/2.3" MOS sensor and outputs over HDMI. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems.
Equipped with a 4.3 to 129mm zoom lens (35mm equivalent is 31.6 to 962mm) with 30x optical zoom and 16x digital zoom, and a 1.4x digital extender, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look. The Dynamic Range Stretch (DRS) minimizes blocked shadows and blown highlights. When it gets too dark to record normal footage, this Full-HD PTZ camera uses Night Mode to capture clear images in monochrome. The camera supports audio input, allowing you to capture and embed audio within the video signal. It is PoE+ compatible, allowing you to power the unit using only the single LAN cable.
If you own a Panasonic ptz cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Panasonic AW-HE40HW PTZ Camera with HDMI Output AW-HE40HWPJ in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Panasonic AW-HE40HW PTZ Camera with HDMI Output AW-HE40HWPJ:
Specifications
Image Sensor
1/2.3" Type MOS
Lens
Motorized 30x zoom, f/1.6 to 4.7 (F=4.3 to 129mm, 35mm equivalent: 31.6 to 962mm)
Focus Distance
Entire zooming range: 3.9' / 120 cm Wide end: 4" / 10 cm
Compression
JPEG (M-JPEG)/H.264
Image Resolution
VGA (640 x 480) (16:9 Letterbox: 640 x 320), QVGA: (320 x 240) (16:9 Letterbox: 320 x 180)
59.94: 59.94 Hz to 660.09 Hz (255 steps) 50: 50.00 Hz to 570.12 Hz (255 steps)
Pan/Tilt Speed
Maximum 90°/sec
Pan Range
± 175°
Tilt Range
-30 to 90°
Sound Level
NC35 (at normal speed), NC40 (when preset)
Input/Output Connectors
LAN: 1 x RJ-45 Hd-SDI: 1 x BNC 75 Ω Compliant with the SMPTE292M standards RS232C: 1 x Mini DIN 8-pin (in)/1 x Mini DIN 8-pin (out) RS422: 1 x RJ-45 (control in RS422A) USB: 1 x Mini B-port (for maintenance) SD Card: ` x microSD card slot (for maintenance)
The user manual for the Panasonic AW-HE40HW PTZ Camera with HDMI Output AW-HE40HWPJ can be downloaded in .pdf
format if it did not come with your new ptz cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Panasonic users keep a unique electronic library
for Panasonic ptz camerass,
where you can use our link to download the user manual for the Panasonic AW-HE40HW PTZ Camera with HDMI Output AW-HE40HWPJ.
The user manual lists all of the functions of the Panasonic AW-HE40HW PTZ Camera with HDMI Output AW-HE40HWPJ,
all the basic and advanced features and tells you how to use the ptz cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Panasonic service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Panasonic AW-HE40HW PTZ Camera with HDMI Output AW-HE40HWPJ. User manuals are also
available on the Panasonic website under Professional Video - PTZ Cameras.
