User manual for the Panasonic DMC-FZ70 Digital Camera DMC-FZ70K
The user manual for the Panasonic DMC-FZ70 Digital Camera DMC-FZ70K provides
necessary instructions for the proper use of the product Photography - Digital Cameras - Point & Shoot Cameras.

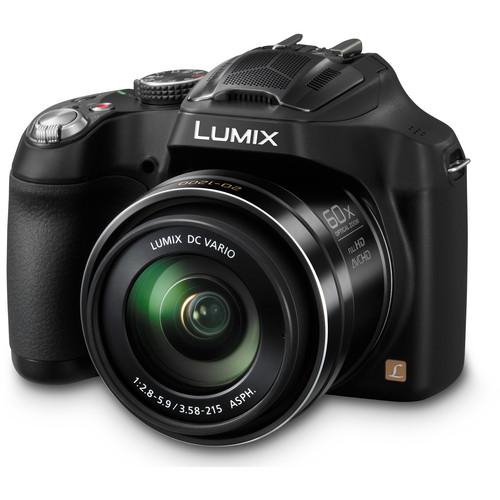

The Panasonic Lumix DMC-FZ70 Digital Camera is a bridge-style point-and-shoot digital camera that features a 16.1 megapixel High Sensitivity BSI MOS sensor and Venus Engine image processor to produce high resolution still imagery and full HD 1080i/p video with notable low-light quality. The combination of the processor and sensor enable a native sensitivity range of ISO 100-3200, which can be further expanded to ISO 6400. The processor also affords a wealth of speed to the camera, including the ability to record up to 9 fps in a 3-shot burst, 5 fps with one-shot AF, or 2 fps with continuous AF.
The built-in Lumix DC Vario 60x optical zoom lens provides a 35mm-equivalent focal length range of 20-1200mm, covering wide-angle to telephoto perspectives for working in almost any shooting situation. Benefitting this extensive zoom range is POWER O.I.S., which works to minimize the appearance of camera shake when working with greater zoom magnifications and under low-light conditions. This image stabilization system also features an Active Mode that is well-suited to creating steady HD movies by countering the appearance of camera shake in a variety of directions.
Full HD 1080i video at 60 fps is supported in the high quality AVCHD codec and greatly benefits from the inclusion of a Windshield Zoom Microphone and Dolby Digital audio quality. The built-in stereo microphone works to significantly reduce wind noise in order to provide clearer overall audio quality. Its zoom design is also well-paired to the zoom lens to help achieve natural sounding recordings.
For image monitoring and playback, both a 3.0" 460k-dot LCD monitor and a 0.20" 202k-dot electronic viewfinder are available as bright, clear means for viewing. Also extending the functionality of the FZ70 is a hot shoe to facilitate the use of an external flash and an HDMI port for linking the camera to an HDTV for vivid image playback. A host of creative effects are available too, for enhancing the aesthetic appearance of both still images and movies in-camera.
If you own a Panasonic point & shoot cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Panasonic DMC-FZ70 Digital Camera DMC-FZ70K in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Panasonic DMC-FZ70 Digital Camera DMC-FZ70K:
| Pixels || Actual: 16.8 Megapixel |
Effective: 16.1 Megapixel
| Sensor || 1/2.3" MOS |
| File Formats || Still Images: JPEG, MPO, RAW |
Movies: MPEG-4, MPEG-4 AVCHD
| Max Resolution || 16 MP: 4608 x 3456 |
| Aspect Ratio || 1:1, 3:2, 4:3, 16:9 |
| Image Stabilization || Optical |
| Lens || Lumix DC Vario, 14 elements in 12 groups |
6 Aspherical, 3 ED
EFL: 3.58-215mm (35 mm equivalent: 20-1200mm)
Aperture: f/2.8 (W) - 5.9 (T) to f/8
| Filter Thread || 55mm |
| Zoom || Optical: 60x |
Intelligent Zoom: 120x
| Focus Range || Wide: 11.81" (30 cm) - Infinity |
Telephoto: 4.92' (1.5 m) - Infinity
Wide Macro: 0.39" (1 cm) - Infinity
Tele Macro: 4.92' (1.5 m) - Infinity
| ISO Sensitivity || 100-3200 (High Sensitivity Mode: 1600-6400) |
| Shutter || 8 - 1/2000 |
15 - 60 in Starry Sky Mode
1/30 - 1/20000 in Movie Mode
| Exposure Metering || Center-weighted, Multi, Spot |
| Exposure Modes || Modes: Aperture Priority, Creative Control, Creative Video, Custom, Intelligent Auto, Manual, Panorama Shot, Program, Scene Modes, Shutter Priority |
Compensation: -3 EV to +3 EV (in 1/3 EV steps)
| Shooting Modes || 3D Photo |
Handheld Night Shot
One Point Color
Toy Camera Effect
| White Balance Modes || Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2 |
| Burst Rate || Up to 9 fps at 16 MP for up to 3 frames |
Up to 5 fps at 16 MP
Up to 2 fps at 16 MP
Up to 10 fps at 3 MP
| Self Timer || 2 Sec, 10 Sec |
| Flash Modes || 1st Curtain Sync |
Slow Sync/Red-eye Reduction
| Built-in Flash || Yes |
| Maximum Effective Flash Range || Wide: 0.98 - 44.29' (0.3 - 13.5 m) |
Telephoto: 4.92 - 21.00' (1.5 - 6.4 m)
| External Flash Connection || Hot Shoe |
| Built-in Memory || 200 MB |
| Memory Card Type || SD |
| Video Recording || Yes, NTSC |
| Resolution || 1920 x 1080: 60 fps, 30 fps |
1280 x 720: 60 fps, 30 fps
| Video Clip Length || Up to 4 GB or 29 Min 59 Sec |
| Audio Recording || With Video, Stereo |
| Viewfinder Type || Electronic |
| Viewfinder Coverage || 100% |
| Screen || 3.0" LCD Rear Screen (460,000 pixels) |
| Screen Coverage || 100% |
| Connectivity || AV Output |
HDMI C (Mini)
| Battery || 1x DMW-BMB9 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 895 mAh |
| AC Power Adapter || DMW-AC8 (Optional) |
| Dimensions (WxHxD) || 5.1 x 3.8 x 4.7" / 130.2 x 97.0 x 118.2 mm |
| Weight || 1.33 lb / 606 g with battery and memory card |
| Package Weight || 2.15 lb |
| Box Dimensions (LxWxH) || 7.4 x 6.6 x 5.0" |
