User manual Panasonic HC-V750 Full HD Camcorder HC-V750K

Operating instructions and pdf manual for use - Panasonic HC-V750 Full HD Camcorder HC-V750K User manual, User manual Panasonic HC-V750 Full HD Camcorder HC-V750K, Panasonic, HC-V750, Full, HD, Camcorder, HC-V750K, Video


User manual for Panasonic HC-V750 Full HD Camcorder HC-V750K

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Panasonic  HC-V750 Full HD Camcorder HC-V750K
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: Camcorders - Consumer Camcorders
  • Safety instructions
  • Startup and operation of the consumer camcorders
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
  • Price: 600 USD
We recommend checking out our discussion threads on the Panasonic HC-V750 Full HD Camcorder HC-V750K, which address similar problems with connecting and setting up Consumer Camcorders Panasonic.



User manual for the Panasonic HC-V750 Full HD Camcorder HC-V750K

The user manual for the Panasonic HC-V750 Full HD Camcorder HC-V750K provides necessary instructions for the proper use of the product Camcorders - Consumer Camcorders.

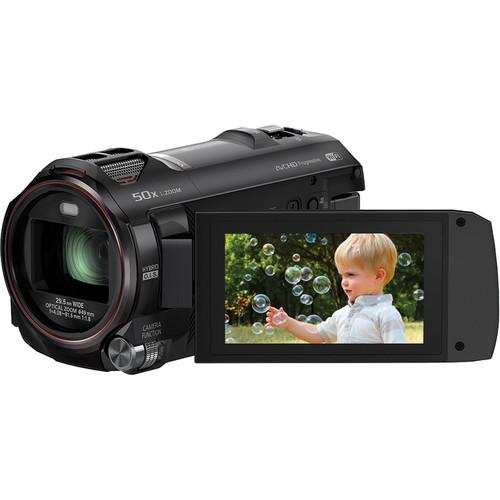

The HC-V750 Full HD Camcorder from Panasonic features Full HD 1920 x 1080 recording along with an Advanced Level Shot Function and a 5 Axis Hybrid Optical Image Stabilizer+(O.I.S.+). The O.I.S.+ has a three-level setting (Off, Normal and Strong) which doubles the tilting correction range for even better effectiveness when moving and shooting. The improved correction algorithm provides better tracking even when tilted quickly.

It also features the combination of an all-new lens, sensor, and engine for enhanced zooming and high sensitivity. The engine is about 1.5 times faster than previous models for high-speed processing of the enhanced MOS sensor's signals. The 6.03MP MOS sensor delivers sharp video images with high resolution. A brand new 4-drive lens system is incorporated to enable a powerful 20x optical zoom within a compact body size.

The Crystal Engine Pro+ engine enables slow motion video shooting in Full HD with smooth playback at 240 fps (actual recording is 120 fps) with Intelligent Frame Creation. This simple touch-operated function can be enabled during regular shooting to switch to slow-mo. The super slow motion is shot in Full HD 1920 x 1080 resolution. Built-in modes like Miniature Effect, 8mm Movie, Silent Movie, and Time Lapse Recording also help to inspire and creatively control your shooting.

The camcorder also features built-in Wi-Fi and is NFC (near-field communication) enabled for even more flexibility when pairing up with optional HDTVs and mobile devices. It also includes a Baby Monitor feature that allows you to check in on a sleeping baby in another room (when the camcorder is connected to your home network with a smartphone). You can speak to the baby using your smartphone and even be notified when the baby cries or when a voice is detected in the room. Ustream allows you to live stream video over the Internet as well.
If you own a Panasonic consumer camcorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic HC-V750 Full HD Camcorder HC-V750K in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Panasonic  HC-V750 Full HD Camcorder HC-V750KDownload user manual for Panasonic HC-V750 Full HD Camcorder HC-V750K
(PDF file, 3.5 MB)
Additional parameters of the Panasonic HC-V750 Full HD Camcorder HC-V750K:
Specifications
    Camera
    Sensor 1x 12.76 Megapixel 1/2.3"  MOS Sensor
    Backside Illumination Yes
    Pixel Gross 12,760,000
    Effective Pixels 6,030,000 @ Video 16:9
    6,030,000 @ Photo 16:9
    4,720,000 @ Photo 4:3
    5,210,000 @ Photo 3:2
    Optics
    Focal Length 4.08 - 81.6 mm
    35mm Equivalent Focal Length 29.5 - 612 @ Aspect Ratio: 16:9 video with level shot function off or normal
    29.5 - 612 @ Aspect Ratio: 16:9 photo
    36.2 - 724.6 @ Aspect Ratio: 4:3 photo
    33.5 - 669.9 @ Aspect Ratio: 3:2 photo
    Maximum Aperture f/ 1.8 - f/ 3.6
    Zoom Optical: 20x
    Intelligent On: 50x
    Digital: 60x
    Maximal Value: 1500x
    Filter Size 49 mm
    Recording
    System NTSC
    Recording Media SD/SDHC/SDXC
    Video Format High Definition
    AVCHD
    1920 x 1080p / 60 fps (28 Mbps)
    1920 x 1080 (24 Mbps)
    1920 x 1080 (17 Mbps)
    High Definition
    AVCHD
    1920 x 1080 (13 Mbps)
    1920 x 1080 (5 Mbps)
    High Definition
    MP4
    1920 x 1080p (50 Mbps)
    1920 x 1080p (28 Mbps)
    1280 x 720 (9 Mbps)
    Standard Definition
    iFrame
    960 x 540 (28 Mbps)
    Slow Motion Mode 240 fps recorded @ 1920 x 1080p
    Still Image Resolution JPEG: 24 Megapixel, 6528 x 3672 (16:9)
    JPEG: 12.6 Megapixel, 4736 x 2664 (16:9)
    JPEG: 2.1 Megapixel, 1920 x 1080 (16:9)
    JPEG: 18 Megapixel, 4896 x 3672 (4:3)
    JPEG: 8 Megapixel, 3264 x 2448 (4:3)
    JPEG: .3 Megapixel, 640 x 480 (4:3)
    JPEG: 20 Megapixel, 5472 x 3648 (3:2)
    JPEG: 10.6 Megapixel, 3984 x 2656 (3:2)
    JPEG: 2.0 Megapixel, 1728 x 1152 (3:2)
    Channels 2.0-Channel Stereo
    Audio Format AAC
    Dolby Digital 2ch
    Dolby Digital 5.1
    Display
    Display Type LCD
    Touchscreen Yes
    Screen Size 3"
    Pixel Count 460,800
    Exposure Control
    Shutter Speed 1/30-1/8000 sec
    1/60-1/8000 sec
    1/2-1/2000 sec
    Features
    Image Stabilization Optical & Digital
    Lux 1400 (Standard Illumination)
    2 (Scene Mode Low Light with 1/30 Shutter Speed)
    1 (Night Mode (Color))
    White Balance Modes Auto
    Cloudy
    Daylight
    Indoor 1
    Indoor 2
    Warm White
    Creative Effects Yes
    Built-in Mic Yes
    Built-in Speaker Yes
    Built-in Light/Flash Light - Yes
    Flash - Yes
    Wi-Fi Yes, 802.11b/g/n
    Accessory Shoe 1x Cold
    Tripod Mount 1/4"
    Input/Output Connectors
    Outputs 1x A/V
    1x HDMI C (Mini)
    1x USB 2.0
    Microphone Input Yes
    Headphone Jack Yes
    General
    Battery Rechargeable Battery Pack, 3.6 VDC, 1940 mAh
    Charging Method AC Adapter
    USB
    Power Consumption Recording:6.7 W
    Charging:7.7 W
    Dimensions (WxHxD) 2.6 x 2.9 x 5.5" / 65.0 x 73.0 x 139.0 mm
    Weight 12.45 oz / 353 g
    Packaging Info
    Package Weight 1.8 lb
    Box Dimensions (LxWxH) 8.3 x 5.9 x 4.0"
    The user manual for the Panasonic HC-V750 Full HD Camcorder HC-V750K can be downloaded in .pdf format if it did not come with your new consumer camcorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic consumer camcorderss, where you can use our link to download the user manual for the Panasonic HC-V750 Full HD Camcorder HC-V750K.

    The user manual lists all of the functions of the Panasonic HC-V750 Full HD Camcorder HC-V750K, all the basic and advanced features and tells you how to use the consumer camcorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Panasonic HC-V750 Full HD Camcorder HC-V750K. User manuals are also available on the Panasonic website under Camcorders - Consumer Camcorders.
