User manual Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K

Operating instructions and pdf manual for use - Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K User manual, User manual Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K, Panasonic, HC-VX870EG-K, 4K, Ultra, HD, Camcorder, HC-VX87


User manual for Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K

Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: Camcorders - PAL Camcorders (Non USA)
  • Safety instructions
  • Startup and operation of the pal camcorders (non usa)
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
  • Price: 649 USD
Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K

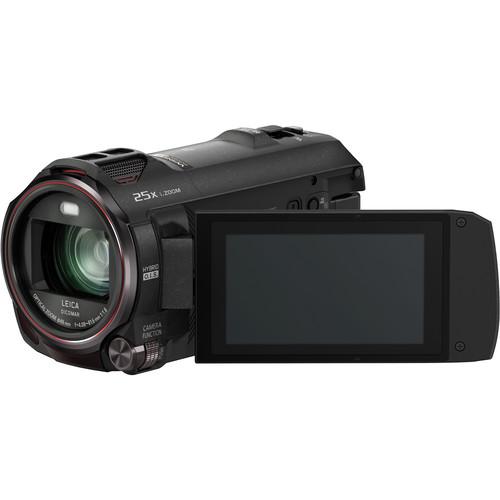

Click to enlarge image

We recommend checking out our discussion threads on the Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K, which address similar problems with connecting and setting up PAL Camcorders (Non USA) Panasonic.



User manual for the Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K

The user manual for the Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K provides necessary instructions for the proper use of the product Camcorders - PAL Camcorders (Non USA).

Record 4K and picture-in-picture video with the PAL Panasonic HC-VX870EG-K 4K Ultra HD Camcorder in black. This camcorder is designed to be compatible with European broadcast standards and is not compatible with NTSC. It can capture video at 4K UHD (3840 x 2160) resolution, four times the resolution of full-HD video, at 50 frames-per-second. With that resolution, you can us the 4K Photo Mode to extract individual frames from your videos and create high-quality photographs. Panasonic's CrystalEngine 4K chipset reduces rolling shutter artifacts from the sensor by increasing readout speed. When stepping down to full HD resolution, the CrystalEngine 4K can record slow-motion video in camera.



Through their lens design partnership with Leica, Panasonic incorporated a Leica Dicomar 20x optical zoom lens with four separate optical groups and a maximum aperture of f/1.8. To keep excessive image vibration to a minimum, Panasonic included its HYBRID OIS system into this camcorder. The HYBRID OIS system is capable of compensating for five directions of vibration using both optical and electronic stabilization.

The camcorder is capable of recording two video streams simultaneously with its picture-in-picture mode. The HC-VX870EG-K's built-in Wi-Fi functionality allows you to use your smartphone's camera to provide the second camera angle. The Wi-Fi functionality also allows you to control the HC-VX870EG-K from your smartphone.
If you own a Panasonic pal camcorders (non usa) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K:
Specifications
Camera
Sensor 1x 18.91 Megapixel MOS Sensor
Backside Illumination Yes
Pixel Gross 18,910,000
Effective Pixels 8,290,000 @ Video 16:9
6,100,000 @ Video 16:9
8,290,000 @ Photo 16:9
6,220,000 @ Photo 4:3
7,000,000 @ Photo 3:2
Optics
Focal Length 4.08 - 81.6 mm
35mm Equivalent Focal Length 30.8 - 626 @ Aspect Ratio: 16:9 4K
37 - 752 @ Aspect Ratio: 16:9 Full HD
30.8 - 626 @ Aspect Ratio: 16:9 Photo
37.6 - 752.8 @ Aspect Ratio: 4:3 Photo
34.5 - 690.3 @ Aspect Ratio: 3:2 Photo
Maximum Aperture f/ 1.8 - f/ 3.6
Zoom Optical: 20x 4K
Intelligent: 25x 4K
Intelligent: 40x (in HD)
Digital: 60x
Digital: 250x
Filter Size 49 mm
Recording
System PAL
Recording Media SD/SDHC/SDXC
Video Format UltraHD
MP4
3840 x 2160p (72 Mbps)
High Definition
MP4
1920 x 1080p / 50 fps (50 Mbps)
1920 x 1080p / 25 fps (28 Mbps)
1280 x 720p / 25 fps (9 Mbps)
AVCHD Progressive
1920 x 1080p / 50 fps (28 Mbps)
AVCHD
1920 x 1080i / 50 fps (24 Mbps)
1920 x 1080i / 50 fps (17 Mbps)
1920 x 1080i / 50 fps (13 Mbps)
1920 x 1080i / 50 fps (5 Mbps)
iFrame
960 x 540p / 30 fps (28 Mbps)
Aspect Ratio 16:9
Still Image Resolution JPEG: 25.9 Megapixel, 6784 x 3816 (16:9)
JPEG: 20 Megapixel, 5472 x 3684 (3:2)
JPEG: 20.4 Megapixel, 5216 x 3912 (4:3)
Channels 5.1-Channel
Audio Format Dolby Digital 5.1
LPCM
Display
Display Type LCD
Touchscreen Yes
Screen Size 3"
Pixel Count 460,800
Rotation Opening Angle: 90°
Turning Angle: 270°
Features
Image Stabilization Optical & Digital
Scene Modes Preset: Yes
Lux 2 (1/25)
1 (Night Mode (Color))
0 (Night Mode IR)
Creative Effects Yes
Built-in Mic Yes
Built-in Speaker Yes
Built-in Light/Flash Light - Yes
Flash - Yes
Wi-Fi Yes, 802.11b/g/n
Accessory Shoe 1x Cold
Tripod Mount 1/4" - 20
Input/Output Connectors
Inputs 1x 1/8" (3.5 mm) Stereo Input (Jack)
Outputs 1x HDMI D (Micro)
1x A/V
1x USB Micro-AB
Microphone Input Yes
Headphone Jack Yes
General
Battery Rechargeable Battery Pack Batteries, 3.6 VDC, 1940 mAh,
Providing up to 1 Hours per Charge
Charging Method AC Adapter
Power Consumption Recording:7.6 W
Charging:7.7 W
Dimensions (WxHxD) 2.6 x 2.9 x 5.5" / 65.0 x 73.0 x 139.0 mm
Weight 12.45 oz / 353 g
Packaging Info
Package Weight 2.45 lb
Box Dimensions (LxWxH) 8.9 x 5.7 x 4.1"
The user manual for the Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K can be downloaded in .pdf format if it did not come with your new pal camcorders (non usa), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic pal camcorders (non usa)s, where you can use our link to download the user manual for the Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K.

The user manual lists all of the functions of the Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K, all the basic and advanced features and tells you how to use the pal camcorders (non usa). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Panasonic HC-VX870EG-K 4K Ultra HD Camcorder HC-VX870EG-K. User manuals are also available on the Panasonic website under Camcorders - PAL Camcorders (Non USA).
