User manual Panasonic HC-W570 HD Camcorder HC-W570K

Operating instructions and pdf manual for use - Panasonic HC-W570 HD Camcorder HC-W570K User manual, User manual Panasonic HC-W570 HD Camcorder HC-W570K, Panasonic, HC-W570, HD, Camcorder, HC-W570K, Video


User manual for Panasonic HC-W570 HD Camcorder HC-W570K

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Panasonic  HC-W570 HD Camcorder HC-W570K
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: Camcorders - Consumer Camcorders
  • Safety instructions
  • Startup and operation of the consumer camcorders
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
  • Price: 359 USD
We recommend checking out our discussion threads on the Panasonic HC-W570 HD Camcorder HC-W570K, which address similar problems with connecting and setting up Consumer Camcorders Panasonic.



User manual for the Panasonic HC-W570 HD Camcorder HC-W570K

The user manual for the Panasonic HC-W570 HD Camcorder HC-W570K provides necessary instructions for the proper use of the product Camcorders - Consumer Camcorders.

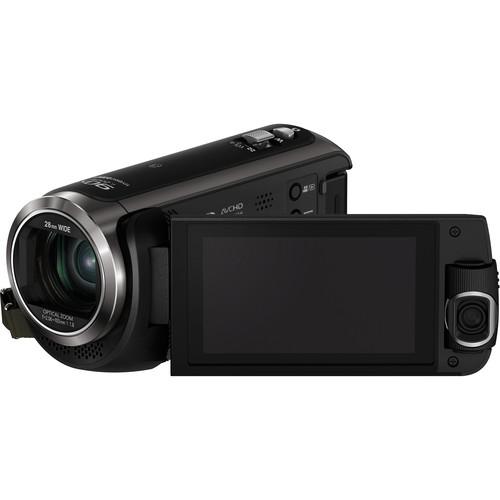

Featuring a second camera attached to the edge of its articulated screen, the Panasonic HC-W570 HD Camcorder can capture two simultaneous streams of video and record them picture-in-picture. This way the main camera can be focused on your subject while the secondary camera records a self portrait. At the front of the camera is a 50x optical zoom lens whose zoom can be digitally extended to 90x. When shooting at the further end of the zoom range, the 5-axis stabilization can compensate for handheld vibration and reduce blur in your videos.
If you own a Panasonic consumer camcorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic HC-W570 HD Camcorder HC-W570K in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Panasonic HC-W570 HD Camcorder HC-W570K:
Camera
Sensor 1x 2.51 Megapixel 1/5.8"  MOS Sensor
Backside Illumination Yes
Pixel Gross 2.51
Effective Pixels 2,200,000 16:9 (Image Stabilizer On)
Optics
Focal Length 2.06 - 103 mm
35mm Equivalent Focal Length 28 - 1740 @ Aspect Ratio: 16:9
Maximum Aperture f/ 1.8 - f/ 4.2
Zoom Optical: 50x
Recording
System NTSC
Recording Media SD/SDHC/SDXC
Video Format High Definition
AVCHD
1920 x 1080p / 60 fps (28 Mbps)
1920 x 1080i / 60 fps (24 Mbps)
1920 x 1080i / 60 fps (17 Mbps)
1920 x 1080i / 60 fps (13 Mbps)
1920 x 1080i / 60 fps (5 Mbps)
MP4
1920 x 1080p / 60 fps (28 Mbps)
1280 x 720p / 30 fps (9 Mbps)
iFrame
960 x 540p / 30 fps (28 Mbps)
Aspect Ratio 16:9
Still Image Resolution JPEG: 2.2 Megapixel (16:9)
Channels 2.0-Channel Stereo
Audio Format AAC
Dolby Digital 2ch
Display
Display Type LCD
Touchscreen Yes
Screen Size 3"
Pixel Count 460,800
Exposure Control
Shutter Speed 1/30-1/8000 sec
Features
Image Stabilization Optical & Digital
Lux 1400 (Standard Illumination)
4 (Low Light Scene Mode)
1 (Night Mode (Color))
White Balance Modes Auto
Cloudy
Custom
Daylight
Indoor 1
Indoor 2
Creative Effects Yes
Built-in Mic Yes
Built-in Speaker Yes
Wi-Fi Yes, 802.11b/g/n
Tripod Mount 1/4" - 20
Input/Output Connectors
Outputs 1x HDMI C (Mini)
Microphone Input No
Headphone Jack No
General
Battery Rechargeable Battery Pack, 3.6 VDC, 1940 mAh
Charging Method AC Adapter
Power Consumption Recording:5.4 W
Charging:7.7 W
Dimensions (WxHxD) 2.4 x 2.4 x 5.1" / 60.0 x 62.0 x 129.0 mm
Weight 9.38 oz / 266 g
Packaging Info
Package Weight 1.5 lb
Box Dimensions (LxWxH) 7.4 x 5.5 x 3.6"
The user manual for the Panasonic HC-W570 HD Camcorder HC-W570K can be downloaded in .pdf format if it did not come with your new consumer camcorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic consumer camcorderss, where you can use our link to download the user manual for the Panasonic HC-W570 HD Camcorder HC-W570K.

The user manual lists all of the functions of the Panasonic HC-W570 HD Camcorder HC-W570K, all the basic and advanced features and tells you how to use the consumer camcorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Panasonic HC-W570 HD Camcorder HC-W570K. User manuals are also available on the Panasonic website under Camcorders - Consumer Camcorders.
