User manual Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital

Operating instructions and pdf manual for use - Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital User manual, User manual Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital, Panasonic, Lumix, DMC-G7, Mirrorless, Micro, Four, Thi


User manual for Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Mirrorless System Cameras
  • Safety instructions
  • Startup and operation of the mirrorless system cameras
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
  • Price: 905 USD
Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital
Click to enlarge image

We recommend checking out our discussion threads on the Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital, which address similar problems with connecting and setting up Mirrorless System Cameras Panasonic.



User manual for the Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital

The user manual for the Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital provides necessary instructions for the proper use of the product Photography - Digital Cameras - Mirrorless System Cameras.

The black Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital Camera with 14-42mm Lens Deluxe Kit from B&H pairs the multimedia mirrorless camera body and versatile zoom lens with a two-year drops and spills warranty for extended protection to your equipment.

The G7 is a true hybrid camera that blends both 4K UHD video recording with advanced still image capture and versatile burst shooting capabilities. Featuring a 16MP Live MOS Micro Four Thirds sensor and Venus Engine 9 image processor, these technologies combine to enable sensitivity to ISO 25600, continuous shooting to 8 fps with AF-S, and a trio of 30 fps shooting rates based on the 4K UHD video recording. Complementing the fast burst shooting modes is an equally adept DFD autofocus system, which works to quicken focusing speeds and emphasize accurate subject tracking for consistently sharp imagery in fast-paced and trying working conditions. Rounding out the feature-set of the G7 is a contemporary body design accentuated by physical exposure control dials, six customizable function buttons, both a high-resolution EVF and 3.0" tilting touchscreen LCD, and built-in Wi-Fi for wireless sharing and remote camera control.

Included with the camera body is the well-rounded Lumix G Vario 14-42mm f/3.5-5.6 II ASPH. MEGA O.I.S. lens, which provides a 28-84mm equivalent focal length range to cover wide-angle to short telephoto perspectives. An Optical Image Stabilizer compensates for camera shake for sharper handheld shooting while a pair of aspherical elements help to minimize the overall lens size and maintain a high degree of sharpness and clarity throughout the zoom range.
If you own a Panasonic mirrorless system cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital:
Specifications

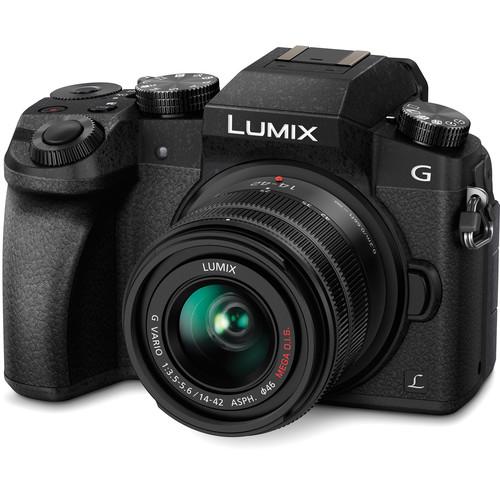

  • Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital Camera with 14-42mm Lens (Black)
    Imaging
    Lens Mount Micro Four Thirds
    Camera Format Micro Four Thirds (2x Crop Factor)
    Pixels Actual: 16.84 Megapixel
    Effective: 16 Megapixel
    Max Resolution 4592 x 3448
    Aspect Ratio 1:1, 3:2, 4:3, 16:9
    Sensor Type / Size MOS, 17.3 x 13.0 mm
    File Formats Still Images: JPEG, MPO, RAW
    Movies: MP4, MPEG-4 AVCHD
    Audio: AAC, Dolby Digital 2ch
    Dust Reduction System Yes
    Memory Card Type SD
    SDHC
    SDXC
    AV Recording
    Video Recording Yes, NTSC
    Video Format UltraHD
    MP4
    3840 x 2160p / 30 fps (100 Mbps)
    3840 x 2160p / 24 fps (100 Mbps)
    High Definition
    MP4
    1920 x 1080p / 60 fps (28 Mbps)
    1920 x 1080p / 30 fps (20 Mbps)
    High Definition
    MP4
    1280 x 720p / 30 fps (10 Mbps)
    Standard Definition
    MP4
    640 x 480p / 30 fps (4 Mbps)
    High Definition
    AVCHD
    1920 x 1080p / 60 fps (28 Mbps)
    1920 x 1080p / 30 fps (24 Mbps)
    1920 x 1080p / 24 fps (24 Mbps)
    High Definition
    AVCHD
    1920 x 1080i / 60 fps (17 Mbps)
    Aspect Ratio 4:3, 16:9
    Video Clip Length Up to 29 Minutes 59 Seconds
    Audio Recording Built-in Mic: With Video, Stereo
    Optional External Mic: With Video, Stereo
    Focus Control
    Focus Type Auto & Manual
    Focus Mode Continuous-servo AF (C), Flexible (AFF), Manual Focus (M), Single-servo AF (S)
    Autofocus Points Contrast Detection:49
    Viewfinder/Display
    Viewfinder Type Electronic
    Viewfinder Pixel Count 2,360,000
    Viewfinder Eye Point 17.5 mm
    Viewfinder Coverage 100%
    Viewfinder Magnification Approx. 1.4x
    Diopter Adjustment - 4 to +4 m
    Display Screen 3" Rear Touchscreen Swivel  LCD (1,040,000)
    Screen Coverage 100%
    Exposure Control
    ISO Sensitivity Auto, 200-25600 (Extended Mode: 100-25600)
    Shutter Type: Electronic & Mechanical
    Speed: 60 - 1/4000 second
    Type: Electronic & Mechanical
    Speed: 2 - 0 minutes in  Bulb Mode
    Type: Electronic
    Speed: 1 - 1/16000 second
    1/125 - 1/16000 second in  Movie Mode
    Remote Control DMW-RSL1 (Optional)
    Metering Method Center-weighted average metering, Multiple, Spot metering
    Exposure Modes Modes: Aperture Priority, Manual, Programmed Auto, Shutter Priority
    Metering Range: EV 0.0 - EV 18.0
    Compensation: -5 EV to +5 EV (in 1/3 EV steps)
    White Balance Modes Auto, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4
    Continuous Shooting Up to 40 fps at 16 MP for up to 80 frames
    Up to 30 fps at 8 MP for up to 53,970 frames
    Up to 8 fps at 16 MP for up to 80 frames
    Up to 6 fps at 16 MP for up to 80 frames
    Up to 2 fps at 16 MP for up to 80 frames
    Flash
    Flash Modes Auto
    Auto/Red-eye Reduction
    Forced On
    Forced On/Red-eye Reduction
    Off
    Slow Sync
    Slow Sync/Red-eye Reduction
    Built-in Flash Yes
    Guide No. 20.34' (6.2 m) ISO100 at 24 mm position
    Max Sync Speed 1 / 160 seconds
    Flash Compensation -3 EV to +3 EV (in 1/3 EV steps)
    Dedicated Flash System TTL
    External Flash Connection Hot Shoe
    Performance
    Self Timer 10 seconds, 2 seconds
    Connectivity 1/8" Microphone, 2.5mm Sub-mini (2-Ring), HDMI D (Micro), USB 2.0, Viera Link
    Wi-Fi Capable Yes
    Software System Requirements Windows: Vista, 7, 8, 8.1
    Mac: OS X 10.5 or later
    Power
    Battery 1x Rechargeable Lithium-ion Battery Pack, 7.2 VDC, 1200 mAh
    Operating/Storage Temperature Operating
    32 to 104°F (0 to 40°C)
    Humidity: 10 - 80%
    Physical
    Dimensions (WxHxD) 4.9 x 3.4 x 3.0" / 124.9 x 86.2 x 77.4 mm
    Weight 14.64 oz / 415 g with battery and memory card
    Kit Lens
    Focal Length 14 - 42mm
    Comparable 35mm Focal Length: 28 - 84 mm
    Aperture Maximum: f/3.5 - 5.6
    Minimum: f/22
    Angle of View 75° - 29°
    Minimum Focus Distance 7.87" (20 cm)
    Magnification 0.17x
    Elements/Groups 9/8
    Diaphragm Blades 7, Rounded
    Autofocus Yes
    Image Stabilization Yes
    Filter Thread Front: 46 mm
    Dimensions (DxL) Approx. 2.20 x 1.93" (56 x 49 mm)
    Weight 3.88 oz (110 g)
    Packaging Info
    Box Dimensions (LxWxH) 7.7 x 6.8 x 5.2"

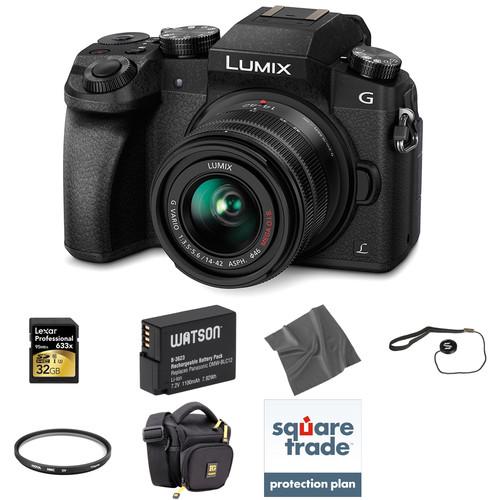

  • Lexar 32GB Professional UHS-I SDHC Memory Card (U3)
    Card Type SDHC
    Storage Capacity 32 GB
    Speed Class 10
    UHS Speed Class U3
    Speed (X-rating) 633x
    Bus Interface Speed UHS Class I
    Data Transfer Read Speed 95 MB/s Maximum
    Write Speed 45 MB/s Maximum
    Durability Not Specified By Manufacturer
    Insertion/Removal Cycles Not Specified By Manufacturer
    Operating Temperature Not Specified By Manufacturer
    Storage Temperature Not Specified By Manufacturer
    Error Correction Not Specified By Manufacturer
    Built-in Write-Protect Switch Yes
    File System Not Specified By Manufacturer
    RoHS Compliant Not Specified By Manufacturer
    Packaging Info
    Box Dimensions (LxWxH) 4.78 x 3.5 x 0.1"
  • Ruggard Hunter 15 Mirrorless Camera Holster Bag
    Material Exterior: 600D Oxford nylon
    Lining: 150D polyester
    D-rings: Plastic
    Type of Closure Zippers with yellow pull tabs
    Quick-release buckle
    Exterior Dimensions 6.3 x 4.5 x 6.3" (16.0 x 11.4 x 16.0 cm)
    Interior Dimensions 5.5 x 3.5 x 5.1" (14.0 x 8.9 x 13.0 cm)
    Carrying/Transport Options Adjustable, removable shoulder strap
    Top carry handle
    Belt loop
    Weight 8.2 oz (232.5 g)
    Packaging Info
    Box Dimensions (LxWxH) 8.0 x 6.5 x 5.0"
  • Watson DMW-BLC12 Lithium-Ion Battery Pack (7.2V, 1100mAh)
    Chemistry Lithium-ion
    Capacity 1100 mAh
    Output Voltage 7.2 V
    Watt-Hours 7.92 Wh
    Dimensions 1.9 x 1.4 x 0.7" / 4.8 x 3.6 x 1.8 cm
    Weight 1.9 oz / 53.9 g
    Packaging Info
    Box Dimensions (LxWxH) 5.6 x 3.1 x 0.4"
  • Hoya 46mm Ultraviolet UV (C) Haze Multicoated Filter
    Type UV (C) (ultraviolet)
    Size 46mm
    Thickness 4mm frame and glass 2.5mm thick
    Grade Not Applicable
    Filter Factor Not Applicable
    Multi-Coated Yes
    Rotating Not Applicable
    Effect Reduces excessive blue; cuts through haze and can improve image clarity; protects front element of lens
    Application Helpful when photographing mountain and marine scenes, where increased haze threatens to make your photographs indistinct in color and clarity
    Color Temperature No change
    Construction Glass
    Front Filter Thread Size 46mm
    Front Lens Cap Size 46mm
    Packaging Info
    Box Dimensions (LxWxH) 3.4 x 2.8 x 0.4"
  • Pearstone Microfiber Cleaning Cloth, 18% Gray (7 x 7.9")
    Dimensions (LxW) 7 x 7.9" (178 x 200mm)
    Packaging Info
    Box Dimensions (LxWxH) 3.8 x 3.3 x 0.2"
  • Sensei Cap Keeper Lens Cap Holder
    Packaging Info
    Box Dimensions (LxWxH) 2.7 x 2.2 x 0.2"
The user manual for the Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital can be downloaded in .pdf format if it did not come with your new mirrorless system cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic mirrorless system camerass, where you can use our link to download the user manual for the Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital.

The user manual lists all of the functions of the Panasonic Lumix DMC-G7 Mirrorless Micro Four Thirds Digital, all the basic and advanced features and tells you how to use the mirrorless system cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.
