User manual Panasonic PT-CW330U Ultra-Short Throw 1-Chip DLP PTCW330U

Operating instructions and pdf manual for use - Panasonic PT-CW330U Ultra-Short Throw 1-Chip DLP PTCW330U User manual, User manual Panasonic PT-CW330U Ultra-Short Throw 1-Chip DLP PTCW330U, Panasonic, PT-CW330U, Ultra-Short, Throw, 1-Chip, DLP, PTC


User manual for Panasonic PT-CW330U Ultra-Short Throw 1-Chip DLP PTCW330U

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

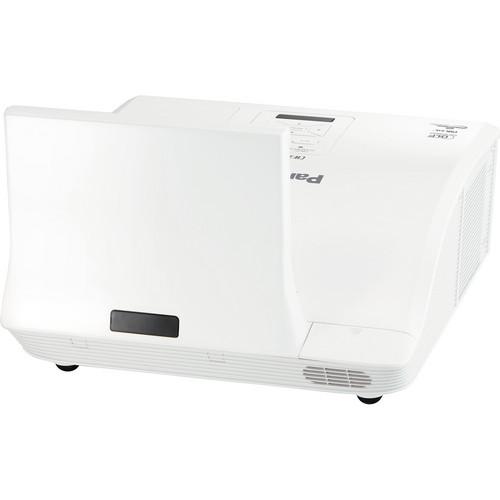

Panasonic PT-CW330U Ultra-Short Throw 1-Chip DLP PTCW330U
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
  • Price: 679 USD
We recommend checking out our discussion threads on the Panasonic PT-CW330U Ultra-Short Throw 1-Chip DLP PTCW330U, which address similar problems with connecting and setting up Multimedia Projectors Panasonic.



User manual for the Panasonic PT-CW330U Ultra-Short Throw 1-Chip DLP PTCW330U

The user manual for the Panasonic PT-CW330U Ultra-Short Throw 1-Chip DLP PTCW330U provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

The PT-CW330U Ultra-Short Throw 1-Chip DLP Projector from Panasonic features high-brightness of 3100 lumens, which allows you to project images onto a large 80” screen with a short projection distance of 1.9’. This projector is especially effective in schools and business. The 3D projection makes events and exhibitions impressive and caters to a wide range of applications.
If you own a Panasonic multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic PT-CW330U Ultra-Short Throw 1-Chip DLP PTCW330U in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Panasonic PT-CW330U Ultra-Short Throw 1-Chip DLP PTCW330UDownload user manual for Panasonic PT-CW330U Ultra-Short Throw 1-Chip DLP PTCW330U
(PDF file, 7.93 MB)
Additional parameters of the Panasonic PT-CW330U Ultra-Short Throw 1-Chip DLP PTCW330U:
Image Display
Display System 1-Chip 0.65" / 16.51 mm DLP
Native Resolution WXGA - 1280 x 800

Input signals that exceed this resolution will be converted to 1280 x 800 pixels.

Format NTSC 4.43
PAL 60, M, N
SECAM
HDTV Compatibility 480i
480p
576i
576p
720p
1080i
1080p
Pixels 1,024,000
Brightness Normal Mode: 3100 Lumens
Uniformity 80%
Aspect Ratio Native: 16:10
Contrast Ratio 8000:1

During RGB signal input, lamp power: Normal. Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.

DLP Link 3D Yes
Color Range Wheel: R, G, B
Colors: 16.7 Million
Scan Horizontal: 15 - 100 kHz
Vertical: 24 - 120 Hz
Lens
Focus Manual
Lens F 2.6 (f = 5.27 mm)
Throw Distance 1.71 - 2.4' (0.5 - 0.7 m)
Throw Ratio 0.35:1
Projection Size 70 - 100" / 177.80 - 254.00 cm
Features
Keystone Correction Vertical: ± 15°
Ceiling Mountable Yes

Floor, front / rear mountable

Rear Screen Projection Yes
Projection Tilt Option None
Built-in Speaker Yes, 10 W (Mono)

2.7 x 1.1" (7.0 x 3.0 cm) oval shape with output power of 10 W

Input/Output Connectors
Inputs/Outputs 1x HDMI Audio/Video (Input)
1x 15-pin VGA Type-A Female (Input)
1x 15-pin VGA Type-A Female (Input)
1x 15-pin VGA Audio/Video (Output)
1x RCA Component Video (Input)
1x S-Video Video (Input)
2x M3 Audio (Input)
2x RCA Composite Audio/Video (Input)
2x S-Video Audio (Input)
1x M3 Audio (Output)
1x RS-232C Control (Input)
1x Ethernet LAN (Input)
Wireless LAN None
General
Lamp (Bulb) 1x UHM
Watts Eco Mode: 280 W
Life Eco Mode: 4000 Hours

Maximum value when the lamp power is set to Eco mode & turned on for 2 hours and when off for 0.25 hours. Normal mode cycle is 3000 hours

Fan Noise Normal Mode: 37 dB
Eco Mode: 33 dB
Maximum Pixel Clock 162 MHz
Remote Control Yes
Security Security Bar
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption Normal Mode: 340 W
Eco Mode: .5 W
Standby Mode: 6 W

0.5 W when [LAN (Standby)]/(VGA Out (Standby)/[In Standby mode (Audio)] are all set to (off).
6 W when [LAN (Standby)]/[VGA Out (Standby)]/[In Standby mode (Audio)] are all set to (on).

Temperature Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Dimensions (WxHxD) 14.1 x 9.8 x 14.4" / 358.1 x 248.9 x 365.8 mm

With legs at shortest position

Weight 17 lb / 7.71 kg
Packaging Info
Package Weight 24.95 lb
Box Dimensions (LxWxH) 19.0 x 18.0 x 15.0"
The user manual for the Panasonic PT-CW330U Ultra-Short Throw 1-Chip DLP PTCW330U can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic multimedia projectorss, where you can use our link to download the user manual for the Panasonic PT-CW330U Ultra-Short Throw 1-Chip DLP PTCW330U.

The user manual lists all of the functions of the Panasonic PT-CW330U Ultra-Short Throw 1-Chip DLP PTCW330U, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Panasonic PT-CW330U Ultra-Short Throw 1-Chip DLP PTCW330U. User manuals are also available on the Panasonic website under A/V Presentation - Projectors - Multimedia Projectors.
