User manual Panasonic PT-CX300U 1-Chip DLP Ultra Short-Throw XGA PTCX300U

Operating instructions and pdf manual for use - Panasonic PT-CX300U 1-Chip DLP Ultra Short-Throw XGA PTCX300U User manual, User manual Panasonic PT-CX300U 1-Chip DLP Ultra Short-Throw XGA PTCX300U, Panasonic, PT-CX300U, 1-Chip, DLP, Ultra, Short-Th

User manual for Panasonic PT-CX300U 1-Chip DLP Ultra Short-Throw XGA PTCX300U

Panasonic PT-CX300U 1-Chip DLP Ultra Short-Throw XGA PTCX300U
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Panasonic PT-CX300U 1-Chip DLP Ultra Short-Throw XGA PTCX300U, which address similar problems with connecting and setting up Multimedia Projectors Panasonic.


User manual for the Panasonic PT-CX300U 1-Chip DLP Ultra Short-Throw XGA PTCX300U

The user manual for the Panasonic PT-CX300U 1-Chip DLP Ultra Short-Throw XGA PTCX300U provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

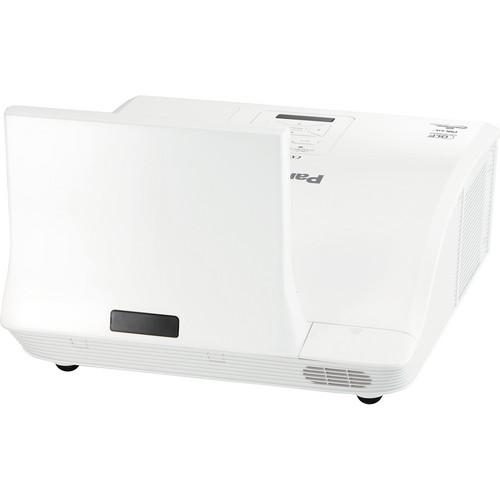

The PT-CX300U 1-Chip DLP Ultra Short-Throw XGA Projector from Panasonic is optimized for use in settings with limited space or low ceilings, where the presenter would otherwise obstruct the light beam and overshadow the picture. Its 3,100 lumen brightness and 8000:1 contrast ratio enable you to project images onto large 80” screens from a distance as short as 2.3' (.71 m).
If you own a Panasonic multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic PT-CX300U 1-Chip DLP Ultra Short-Throw XGA PTCX300U in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Panasonic PT-CX300U 1-Chip DLP Ultra Short-Throw XGA PTCX300UDownload user manual for Panasonic PT-CX300U 1-Chip DLP Ultra Short-Throw XGA PTCX300U
(PDF file, 7.93 MB)
Additional parameters of the Panasonic PT-CX300U 1-Chip DLP Ultra Short-Throw XGA PTCX300U:

Go To

Image Display
Display System 1-Chip 0.55" / 13.97 mm DLP
Native Resolution XGA - 1024 x 768
Supported Resolutions XGA - 1024 x 768
Supported Formats Not Specified By Manufacturer
Format NTSC
NTSC 4.43
PAL
PAL 60, M, N
SECAM
HDTV Compatibility 720p @ 50 Hz
720p @ 60 Hz
1080i @ 50 Hz
1080i @ 60 Hz
1080p @ 24 Hz
1080p @ 50 Hz
1080p @ 60 Hz
Pixels 786,432
Brightness Normal Mode: 3100 Lumens
Uniformity 80%
Aspect Ratio Native: 4:3
Contrast Ratio 8000:1
Dynamic Contrast Ratio Not Specified By Manufacturer
DLP Link 3D Yes
Color Range 16.77 Million
Scan Horizontal: 15 - 100 kHz
Vertical: 24 - 120 Hz
Horizontal: 15 - 100 kHz
Vertical: 24 - 100 Hz
Lens
Focus Manual
Lens F 2.6 (f = 5.27 mm)
Throw Distance 1.71 - 2.6' (0.5 - 0.8 m)
Throw Ratio 0.44:1
Projection Size 60 - 90" / 152.40 - 228.60 cm
Features
Keystone Correction Vertical: ± 15°
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option None
Built-in Speaker Yes, 10 W (Mono)
Input/Output Connectors
Inputs/Outputs 1x HDMI Audio/Video (Input)
2x 15-pin VGA Type-A Female (Input)
1x 15-pin VGA Audio/Video (Output)
1x RCA Component Video (Input)
1x S-Video Video (Input)
2x M3 Audio (Input)
2x RCA Composite Audio/Video (Input)
2x S-Video Audio (Input)
1x M3 Audio (Output)
1x RS-232C Control (Input)
1x Ethernet LAN (Input)
1x USB Control/Service (Input)
Wireless LAN None
General
Lamp (Bulb) 1x UHM
Watts 280 W
Life Eco Mode: 4000 Hours
Fan Noise Normal Mode: 37 dB
Eco Mode: 33 dB
Maximum Pixel Clock 162 MHz
Remote Control Yes
Security Cable Lock Slot
Security Bar
Power Requirements 100-240 VAC, 50/60 Hz
Heat Dissipation Not Specified By Manufacturer
Power Consumption Normal Mode: 340 W
Standby Mode: 6 W
Eco Mode: .5 W
Temperature 41 to 104°F (5 to 40°C)
Humidity: 20 - 80%

No condensation
Dimensions (WxHxD) 14.0 x 9.8 x 14.4" / 35.6 x 24.9 x 36.6 cm

Height with legs at shortest position
Weight 17.0 lb / 7.71 kg
Packaging Info
Package Weight 22.6 lb
Box Dimensions (LxWxH) 19.0 x 18.5 x 15.2"
