User manual Panasonic PT-CX301RU Interactive Ultra-Short Throw DLP PTCX301RU

Operating instructions and pdf manual for use - Panasonic PT-CX301RU Interactive Ultra-Short Throw DLP PTCX301RU User manual, User manual Panasonic PT-CX301RU Interactive Ultra-Short Throw DLP PTCX301RU, Panasonic, PT-CX301RU, Interactive, Ultra-Sh


User manual for Panasonic PT-CX301RU Interactive Ultra-Short Throw DLP PTCX301RU

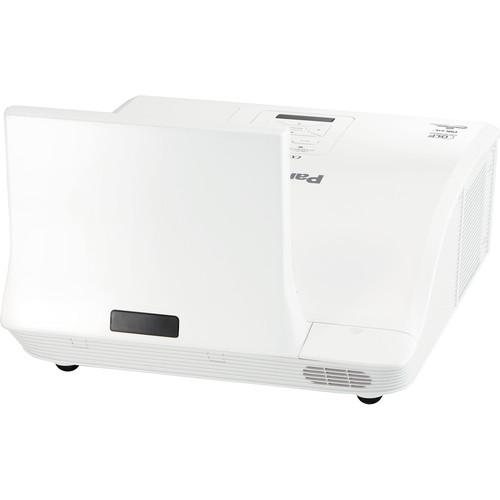

Panasonic PT-CX301RU Interactive Ultra-Short Throw DLP PTCX301RU
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
  • Price: 799 USD
We recommend checking out our discussion threads on the Panasonic PT-CX301RU Interactive Ultra-Short Throw DLP PTCX301RU, which address similar problems with connecting and setting up Multimedia Projectors Panasonic.



User manual for the Panasonic PT-CX301RU Interactive Ultra-Short Throw DLP PTCX301RU

The user manual for the Panasonic PT-CX301RU Interactive Ultra-Short Throw DLP PTCX301RU provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

The Panasonic PT-CX301RU Interactive Ultra-Short Throw DLP Projector is flexible and powerful enough to thrive in a variety of working conditions. With a brightness of 3100 lumens and a contrast ratio of 8000:1, the PT-CX301RU uses a single lamp and efficient focusing reflector to minimize consumption to only 280W. It has an XGA resolution of 1280 x 800 and an interactive function, which allows you to write or draw figures on the projected image with the interactive pen/pointer. In addition, two users can write simultaneously, to make classes and presentations more effective.
If you own a Panasonic multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic PT-CX301RU Interactive Ultra-Short Throw DLP PTCX301RU in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Panasonic PT-CX301RU Interactive Ultra-Short Throw DLP PTCX301RUDownload user manual for Panasonic PT-CX301RU Interactive Ultra-Short Throw DLP PTCX301RU
(PDF file, 9.84 MB)
Additional parameters of the Panasonic PT-CX301RU Interactive Ultra-Short Throw DLP PTCX301RU:
Image Display
Display System 1-Chip 0.55" / 13.97 mm DLP
Native Resolution XGA - 1024 x 768
Supported Resolutions VGA - 640 x 480
WSXGA+ - 1680 x 1050
UXGA - 1600 x 1200
WXGA+ - 1440 x 900
SXGA+ - 1400 x 1050
SXGA - 1280 x 1024
MSXGA - 1280 x 960
MAC21 - 1152 x 870
MAC16 - 832 x 624
SVGA - 800 x 600
Format PAL 60, M, N
NTSC 4.43
SECAM
HDTV Compatibility 1080p
1080i
720p
576p
576i
480p
480i
Pixels 786,432
Brightness 3100 Lumens
Uniformity 80%
Aspect Ratio Native: 4:3
Contrast Ratio 8000:1
DLP Link 3D Yes
Color Range 16.7 Million
Scan Horizontal: 15 - 100 kHz
Vertical: 24 - 120 Hz
Lens
Focus Manual
Lens F 2.8 (f = 7.51 mm)
Throw Ratio 0.44:1
Projection Size 60 - 90" / 1524.00 - 2286.00 mm
Features
Keystone Correction Yes, Vertical: ± 15°
Picture-in-Picture None
Ceiling Mountable Yes
Rear Screen Projection Yes
Projection Tilt Option Yes
Built-in Speaker Yes, 10 W (Mono)
Internal Memory None
Input/Output Connectors
Inputs/Outputs 1x Mini-USB Service
1x HDMI Audio/Video (Input)
1x 15-pin VGA Video (Output)
2x 15-pin VGA Video (Input)
1x Ethernet LAN
2x 1/8" (3.5 mm) Mini Audio (Input)
1x S-Video Video (Input)
2x RCA Stereo (L/R) Audio (Input)
1x RS-232C Control
1x 1/8" (3.5 mm) Mini Audio (Output)
1x RCA Composite Video (Input)
Wireless LAN None
Sync Compatibility Sync on Green
General
Lamp (Bulb) 1x UHM
Watts 280 W
Life Normal Mode: 3000 Hours
Eco Mode: 4000 Hours
Fan Noise Normal Mode: 37 dB
Eco Mode: 33 dB
Maximum Pixel Clock 162 MHz
Remote Control Yes
Security Password Protection
Security Bar
Languages Arabic
Danish
English
French
German
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish
Power Requirements 100-240 VAC, 50/60 Hz
Power Consumption Normal Mode: 340 W
Standby Mode (Network off): .5 W
Standby Mode: 6 W
Altitude 0 - 10000' (0 - 3048 m)
Temperature Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Dimensions (WxHxD) 14.1 x 9.8 x 14.4" / 35.8 x 24.9 x 36.6 cm With Legs at Shortest Position
Weight 17 lb / 7.71 kg
Packaging Info
Package Weight 23.0 lb
Box Dimensions (LxWxH) 18.0 x 18.0 x 14.0"
The user manual for the Panasonic PT-CX301RU Interactive Ultra-Short Throw DLP PTCX301RU can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic multimedia projectorss, where you can use our link to download the user manual for the Panasonic PT-CX301RU Interactive Ultra-Short Throw DLP PTCX301RU.

The user manual lists all of the functions of the Panasonic PT-CX301RU Interactive Ultra-Short Throw DLP PTCX301RU, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Panasonic PT-CX301RU Interactive Ultra-Short Throw DLP PTCX301RU. User manuals are also available on the Panasonic website under A/V Presentation - Projectors - Multimedia Projectors.
