User manual Panasonic PT-DW830UK 1-Chip 8,500 LM DLP Projector PT-DW830ULK

Operating instructions and pdf manual for use - Panasonic PT-DW830UK 1-Chip 8,500 LM DLP Projector PT-DW830ULK User manual, User manual Panasonic PT-DW830UK 1-Chip 8,500 LM DLP Projector PT-DW830ULK, Panasonic, PT-DW830UK, 1-Chip, 8,500, LM, DLP, P


User manual for Panasonic PT-DW830UK 1-Chip 8,500 LM DLP Projector PT-DW830ULK

Panasonic PT-DW830UK 1-Chip 8,500 LM DLP Projector PT-DW830ULK
  • Manufacturer: Panasonic
  • Basic description and contents of package
  • Product classification: A/V Presentation - Projectors - Multimedia Projectors
  • Safety instructions
  • Startup and operation of the multimedia projectors
  • Tips for setting up your Panasonic
  • Settings and expert assistance
  • Contact Panasonic service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Panasonic PT-DW830UK 1-Chip 8,500 LM DLP Projector PT-DW830ULK, which address similar problems with connecting and setting up Multimedia Projectors Panasonic.



User manual for the Panasonic PT-DW830UK 1-Chip 8,500 LM DLP Projector PT-DW830ULK

The user manual for the Panasonic PT-DW830UK 1-Chip 8,500 LM DLP Projector PT-DW830ULK provides necessary instructions for the proper use of the product A/V Presentation - Projectors - Multimedia Projectors.

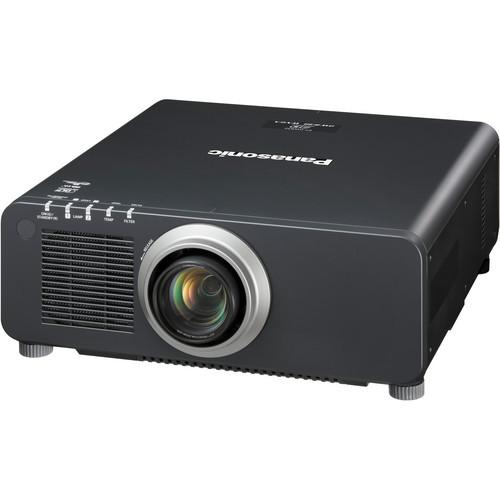

The black 1-Chip 8,500 Lumens DLP Projector without Lens from Panasonic delivers high output and features many of the advanced functions in Panasonic’s flagship 3-chip DLP projectors. With a unique dual-lamp drive system that helps to make the body compact, the two high-output 420 W lamps provide high brightness of 8,500 lumens.
If you own a Panasonic multimedia projectors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Panasonic PT-DW830UK 1-Chip 8,500 LM DLP Projector PT-DW830ULK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Panasonic PT-DW830UK 1-Chip 8,500 LM DLP Projector PT-DW830ULK:
Specifications
    Image Display
    Display System 1-Chip 0.65" / 16.51 mm DLP
    Native Resolution 1280 x 800
    Supported Resolutions WXGA - 1280 x 800
    Pixels 1,024,000
    Brightness 8500 Lumens
    Uniformity 90%
    Aspect Ratio 16:10
    Contrast Ratio 2D — 10000:1
    DLP Link 3D Yes
    Color Range R, G, B, W
    Scan Horizontal: 15 - 100 kHz
    Vertical: 24 - 120 Hz
    Lens
    Lens None
    Lens Shift Vertical: +50%
    Horizontal: ±10%
    Throw Ratio None
    Projection Size None
    Features
    Keystone Correction Vertical: ± 40°
    Ceiling Mountable Yes
    Input/Output Connectors
    Inputs/Outputs 1x HDMI Video (Input)
    1x DVI-D Video (Input)
    5x BNC Audio/Video (Input)
    1x 15-pin VGA Type-A Female (Input)
    1x BNC Composite Video (Input/Output)
    1x BNC Video (Input/Output)
    1x BNC Video (Output)
    1x 9-pin VGA Control (Input)
    1x 9-pin VGA Control (Output)
    1x M3 Control (Input)
    1x M3 Control (Output)
    1x 9-pin VGA Type-B Female (Output)
    1x Ethernet LAN (Input)
    General
    Lamp (Bulb) 2x UHM
    Watts 420 W
    Fan Noise Eco Mode: 35 dB
    Normal Mode: 40 dB
    Maximum Pixel Clock 162 MHz
    Remote Control Yes
    Power Requirements 120-240 VAC, 50 Hz
    Input Current 5.2 A
    Heat Dissipation 3516 BTU
    Power Consumption Normal Mode: 1030 W
    Standby Mode: 3 W
    Standby Mode (Network off): .3 W
    Temperature Operating
    32 to 113°F (0 to 45°C)
    Humidity: 10 - 80%

    No condensation

    Dimensions (WxHxD) 19.5 x 7.8 x 20.1" / 495.3 x 198.1 x 510.5 mm

    Height with legs at shortest position

    Weight 38.8 lb / 17.60 kg
    Packaging Info
    Package Weight 52.91 lb
    Box Dimensions (LxWxH) 28.5 x 26.0 x 14.0"
    The user manual for the Panasonic PT-DW830UK 1-Chip 8,500 LM DLP Projector PT-DW830ULK can be downloaded in .pdf format if it did not come with your new multimedia projectors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Panasonic users keep a unique electronic library for Panasonic multimedia projectorss, where you can use our link to download the user manual for the Panasonic PT-DW830UK 1-Chip 8,500 LM DLP Projector PT-DW830ULK.

    The user manual lists all of the functions of the Panasonic PT-DW830UK 1-Chip 8,500 LM DLP Projector PT-DW830ULK, all the basic and advanced features and tells you how to use the multimedia projectors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Panasonic service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Panasonic PT-DW830UK 1-Chip 8,500 LM DLP Projector PT-DW830ULK. User manuals are also available on the Panasonic website under A/V Presentation - Projectors - Multimedia Projectors.
